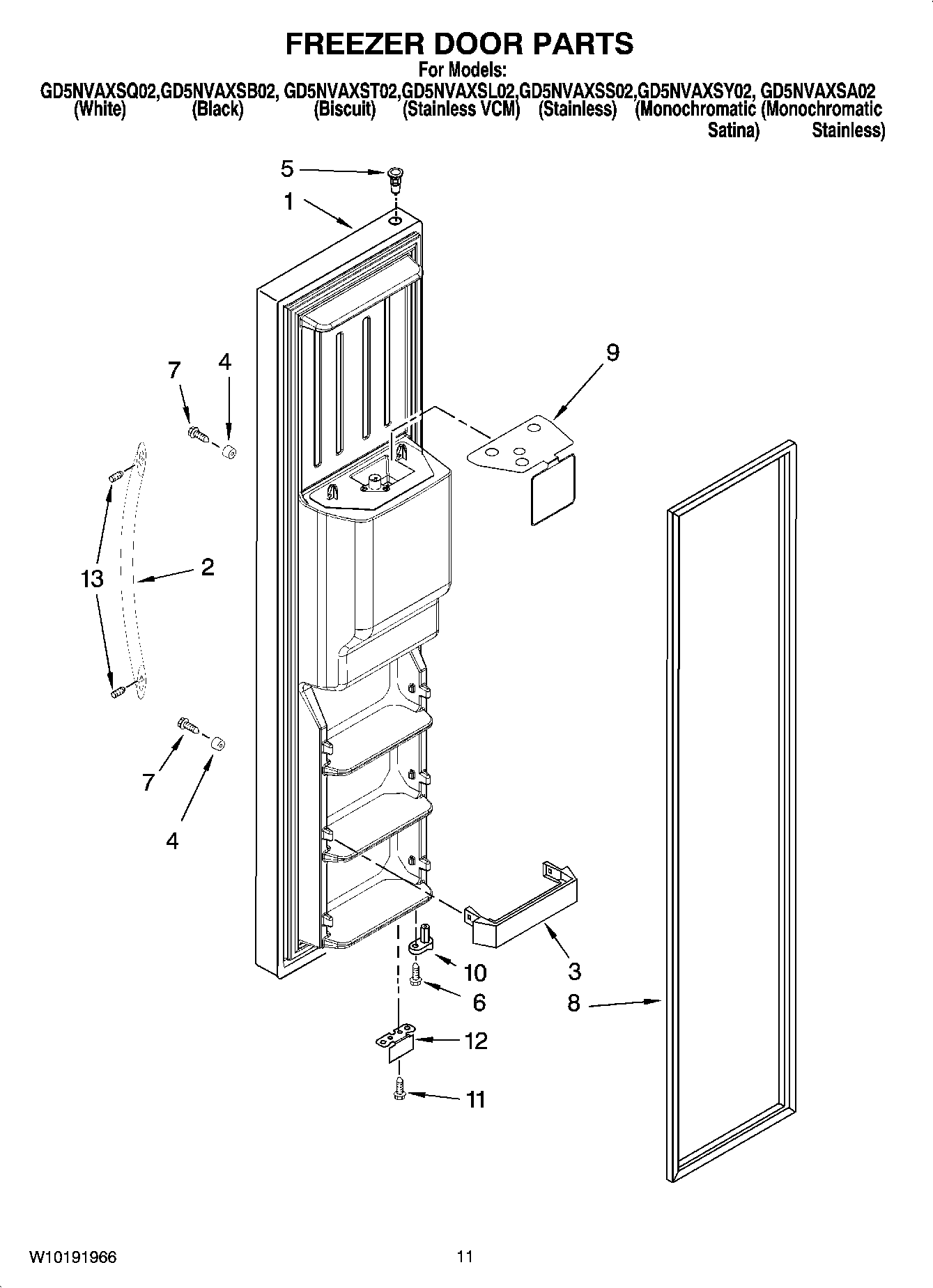

GD5NVAXSB02 07 – FREEZER DOOR PARTS

Products

Position	Product
	Following Parts Not Illustrated
	Tube, Water Dispenser
	Wire Assembly, Freezer Door
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Mono Satina)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Mono Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless VCM)
2	Handle (Biscuit)
2	Handle (Includes 13) (Stainless)
2	WP2254600W Whirlpool Refrigerator Handle
2	WP2254600B Whirlpool Refrigerator Handle
3	WP2171157 Whirlpool Shelf Trim
4	WPW10170540 Whirlpool Screw
5	WP2182181 Whirlpool Refrigerator Thimble
6	WP3400012 Whirlpool Refrigerator Screw
7	WP488163 Whirlpool Refrigerator Screw
8	W10136735 Whirlpool Refrigerator Door Gasket
8	2159082 Whirlpool Freezer Door Gasket Black
8	2159074 Whirlpool Door Gasket Seal
9	Safety Barrier
10	WP2223752 Whirlpool Refrigerator Door Cam
11	WP489483 Whirlpool Screw
12	Bracket, Door Stop (Black)
12	Bracket, Door Stop (Chrome)
13	SCREW
