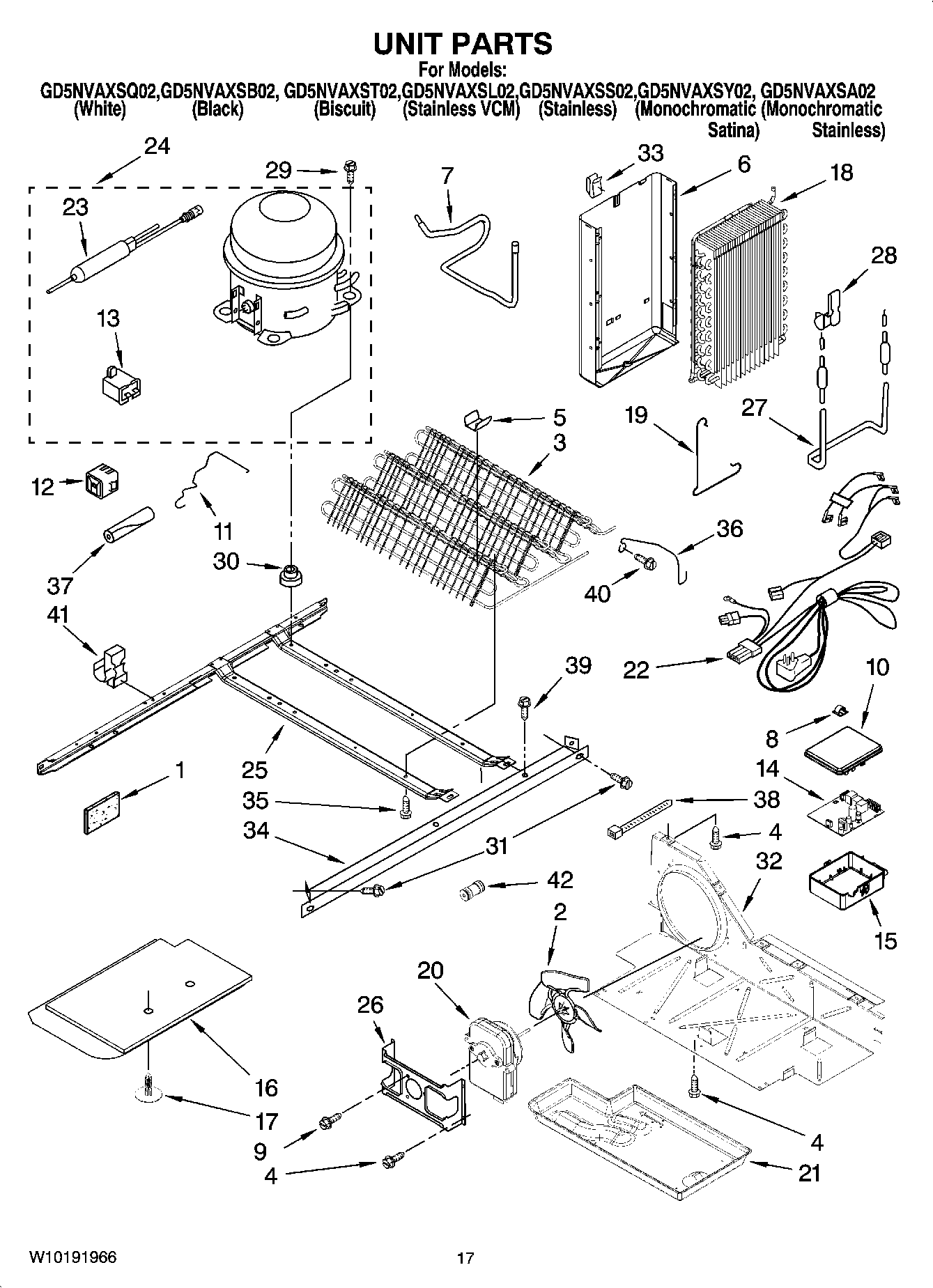

GD5NVAXSB02 11 – UNIT PARTS

GD5NVAXSB02 11 – UNIT PARTS

Written by

in

GD5NVAXSB02 11 – UNIT PARTS

Products

PositionProduct
978026 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (5/8“)
REFRIGERANT CHARGE 5.0 oz. (R-134A)
VALVE, ACCESS (1/2“)
876764 Whirlpool Refrigerator Primary Valve
WP978025 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978030 Whirlpool Refrigerator Valve
1W11553819 Whirlpool Refrigerator Insulation
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6Heat Shield
7WP2205765 Whirlpool Refrigerator Tube
8WP1115374 Whirlpool Refrigerator Clip
9WP8533993 Whirlpool Refrigerator Screw
10Cover
112223314 Whirlpool Refrigerator Clip
12WP2304885 Whirlpool Refrigerator Start Device
13WPW10662129 Whirlpool Refrigerator Run Capacitor
14Electronic Control
15Box, Control
16Unit Cover, Bottom
17489396 Whirlpool Refrigerator Clip
18WP2188823 Whirlpool Refrigerator Evaporator
19Clamp
20WP2188874 Whirlpool Refrigerator Condenser Motor
21WPW10614158 Whirlpool Refrigerator Evaporator Tray
22Harness, Unit
23WPW10143759 Whirlpool Dryer Filter
24W10139460 Whirlpool Refrigerator Compressor
252304904 Whirlpool Frame Assembly
26WP2181929 Whirlpool Refrigerator Bracket
27WP2323198 Whirlpool Refrigerator Heater
28W11623163 Whirlpool Refrigerator Clip
30876811 Whirlpool Grommet
30WP4387558 Whirlpool Refrigerator Compressor Grommet
31489340 Whirlpool Refrigerator Screw
32W10896764 Whirlpool Refrigerator Air Baffle
33Clip, Heat Shield
342305374 Whirlpool Refrigerator Unit Rail
35W11544659 Whirlpool Refrigerator Screw
362260517 Whirlpool Fan Guard
37SLEEVE
38WPW10339879 Whirlpool Wire Tie
39WP489427 Whirlpool Refrigerator Screw
40WP489478 Whirlpool Refrigerator Screw
41W10169512 Whirlpool Clip
42WPW10271543 Whirlpool Refrigerator Connector
