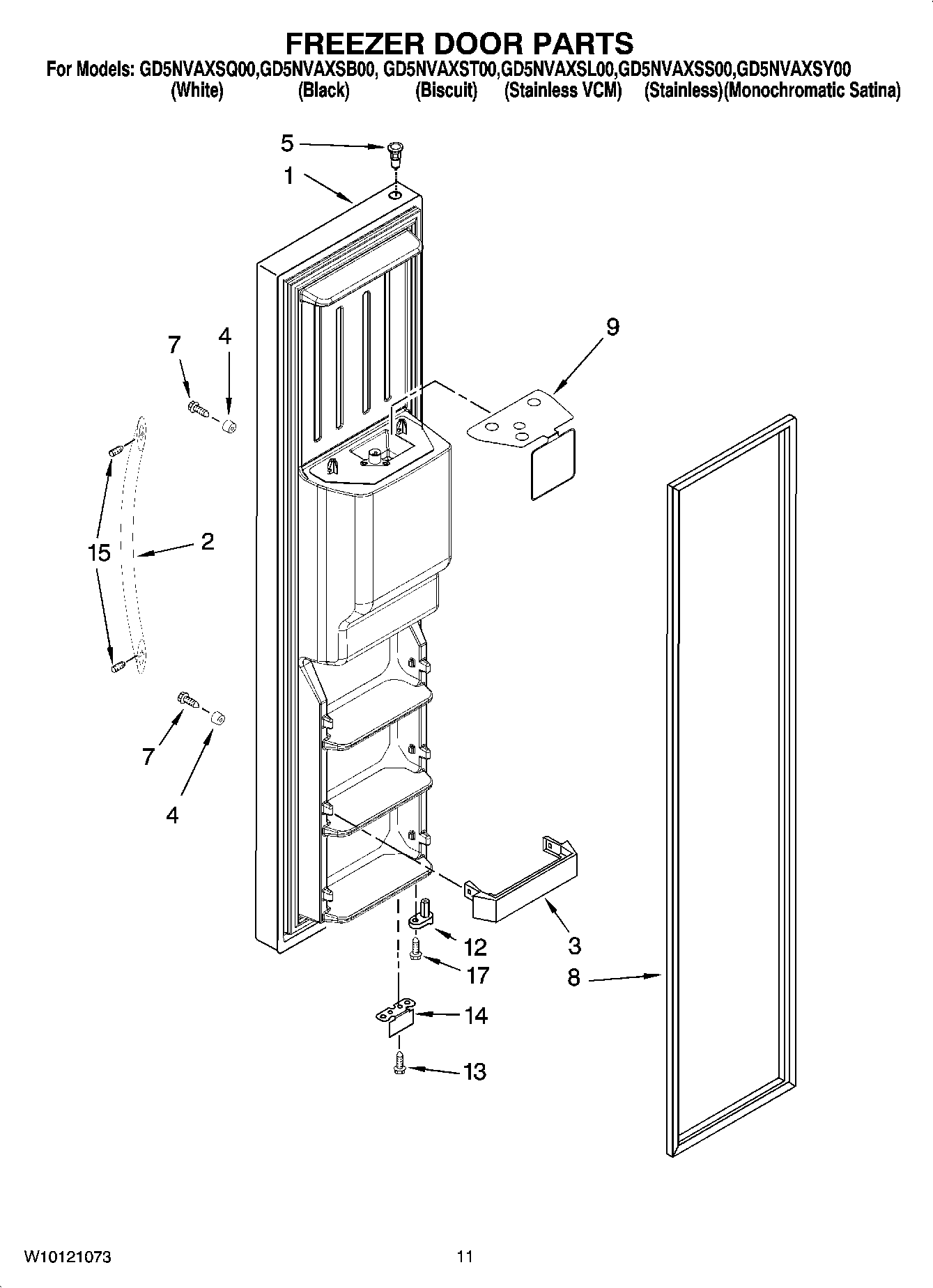

GD5NVAXSQ00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless VCM)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Mono Satina)
2	Handle (Biscuit)
2	WP2254600W Whirlpool Refrigerator Handle
2	WP2254600B Whirlpool Refrigerator Handle
2	Handle (Includes 13) (Stainless)
3	WP2171157 Whirlpool Shelf Trim
4	WPW10170540 Whirlpool Screw
5	WP2182181 Whirlpool Refrigerator Thimble
7	WP488163 Whirlpool Refrigerator Screw
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
9	Safety Barrier
12	WP2223752 Whirlpool Refrigerator Door Cam
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
14	Bracket, Door Stop (Chrome)
15	SCREW
17	Tube, Water Dispenser
17	Wire Assembly, Freezer Door
17	WP3400012 Whirlpool Refrigerator Screw
17	Following Parts Not Illustrated
