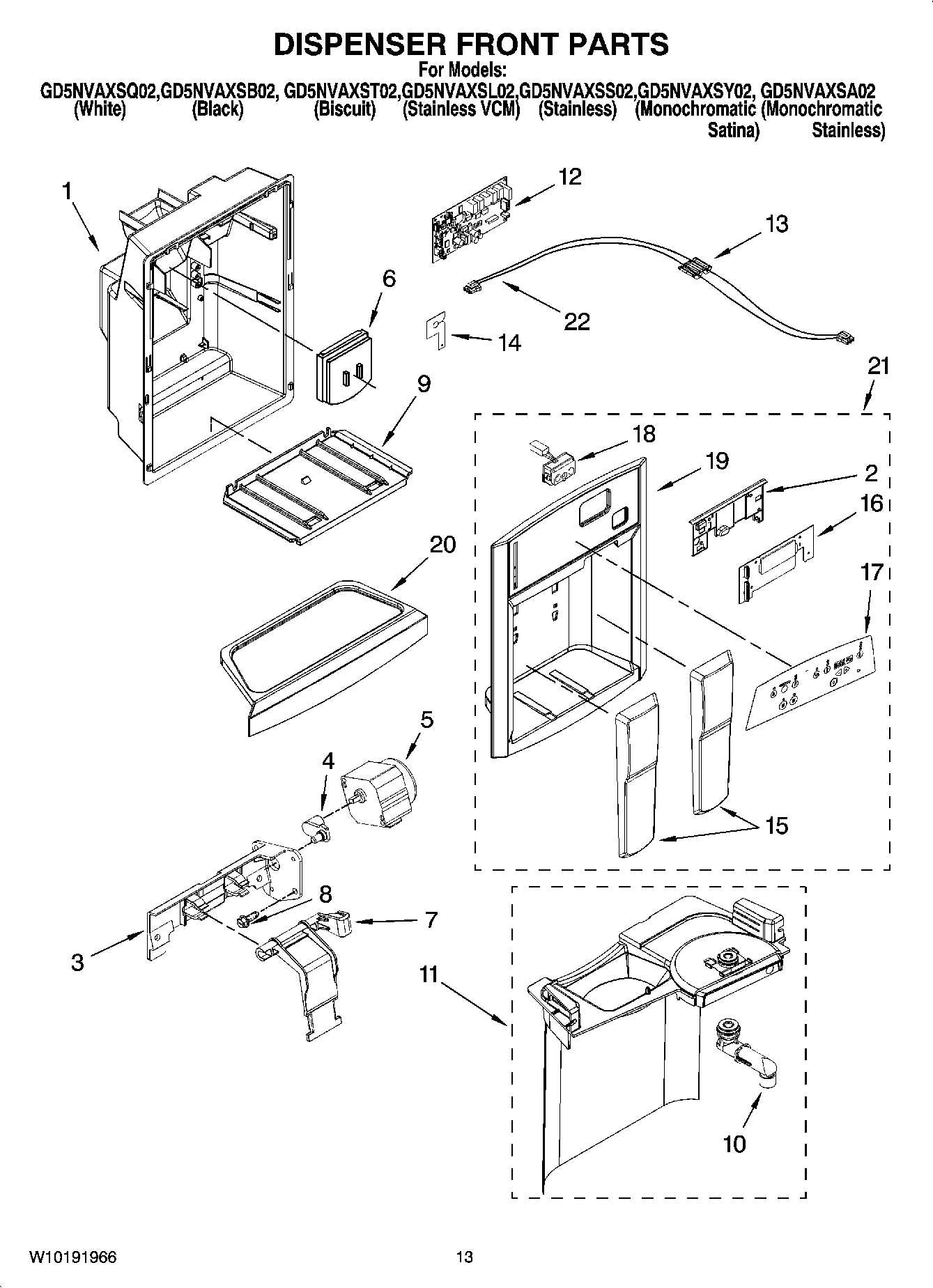

GD5NVAXSS02 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	2305219 Whirlpool Refrigerator Cover
3	WP2305202 Whirlpool Refrigerator Bracket
4	WP2305242 Whirlpool Refrigerator Connector
5	WPW10184813 Whirlpool Refrigerator Motor
6	WP2305258 Whirlpool Dispenser Door Assembly
7	WP2305204 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	Grille, Slide (Apollo Gray)
9	Grille, Slide (Black)
9	Grille, Slide (Biscuit)
9	Grille, Slide (White)
10	WP2305235 Whirlpool Refrigerator Spigot
11	Separator Assembly (White)
11	Separator Assembly (Universal Silver)
11	Separator Assembly (Biscuit)
11	Separator Assembly (Black)
12	WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core
13	Ferrite Bead
14	2305447 Whirlpool Refrigerator Clip
15	Pad, Ice & Water (For White Model)
15	Pad, Ice & Water (For Black Model)
15	Pad, Ice & Water (For Monochromatic Stainless Model)
15	Pad, Ice & Water (For Biscuit Model)
16	Cover Assembly, Electronic Control
17	Overlay, Front Cover (Not Available Order 21)
18	LED Assembly
19	Front Cover, Housing (Not Available, Order 21)
20	Tray, Housing (Universal Silver)
20	Tray, Housing (Biscuit)
20	Tray, Housing (Black)
20	Tray, Housing (White)
21	Front Cover Assembly (Includes Items 17, 18, 19, 20, & 21) (Black)
21	Front Cover Assembly (Includes Items 17, 18, 19, 20, & 21) (Biscuit)
21	Front Cover Assembly (Includes Items 17, 18, 19, 20, & 21) (Universal Silver)
21	Front
22	WPL 2187814
