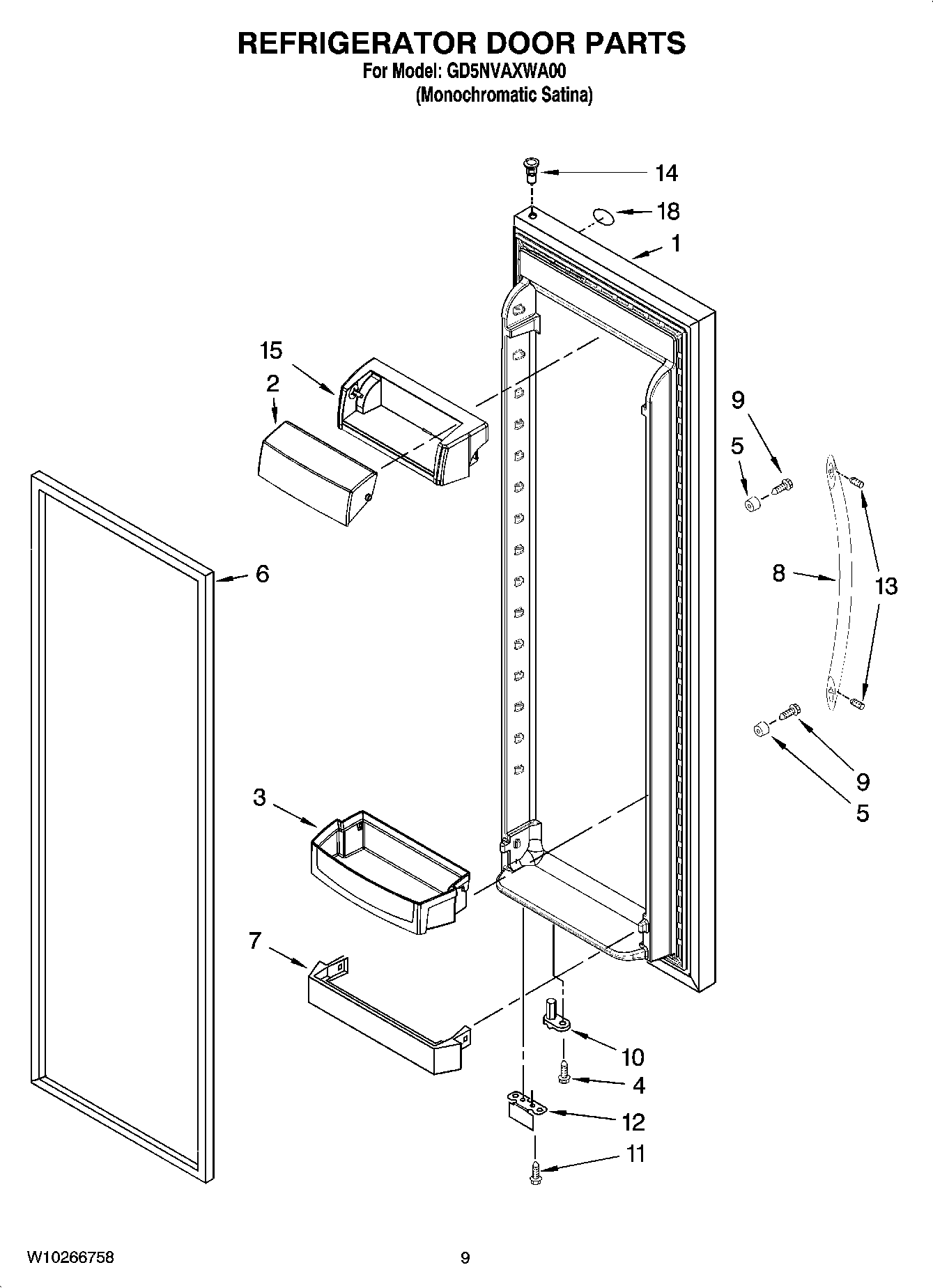

GD5NVAXWA00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Mono Satina)
2	WP2256101 Whirlpool Dairy Door
3	Door Bin (3)
4	WP3400012 Whirlpool Refrigerator Screw
5	WPW10170540 Whirlpool Screw
6	WPW10136734 Whirlpool Refrigerator Door Gasket
7	WP2156022 Whirlpool Refrigerator Door Trim
8	Handle (Stainless)
9	W10141596 Whirlpool Screw Assembly
10	WP2182179 Whirlpool Cam Closer
11	WP489478 Whirlpool Refrigerator Screw
12	BRACKET, DOOR STOP (SILVER)
13	SCREW
14	WP2182181 Whirlpool Refrigerator Thimble
15	Door Compartment
18	Nameplate
