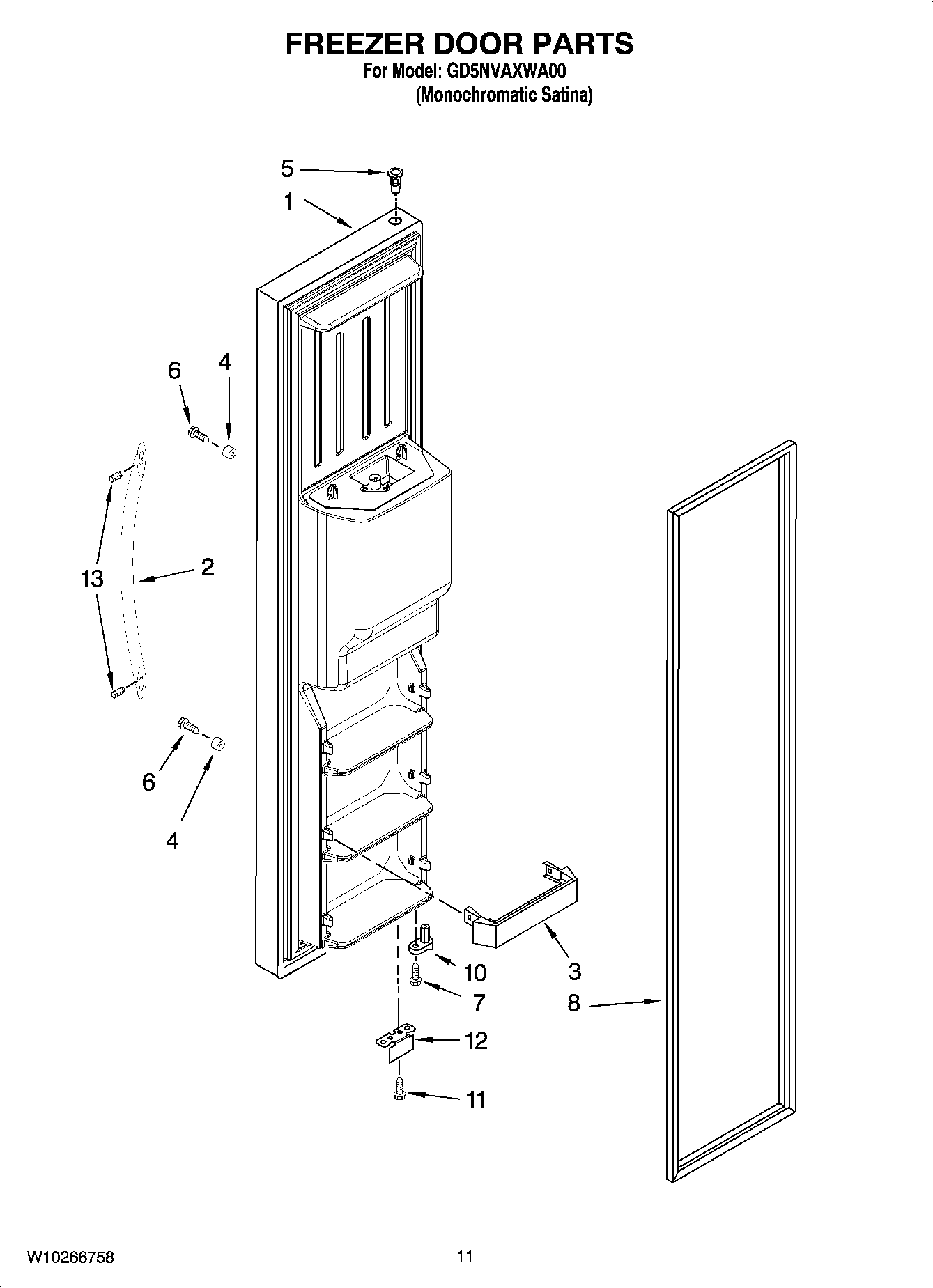

GD5NVAXWA00 07 – FREEZER DOOR PARTS

GD5NVAXWA00 07 – FREEZER DOOR PARTS

Written by

in

GD5NVAXWA00 07 – FREEZER DOOR PARTS

Products

PositionProduct
Following Parts Not Illustrated
Tube, Water Dispenser
Wire Assembly, Freezer Door
1Freezer Door (Includes 8 And Dispenser Front Parts) (Mono Stainless)
2Handle (Includes 13) (Stainless)
3WP2171157 Whirlpool Shelf Trim
4WPW10170540 Whirlpool Screw
5WP2182181 Whirlpool Refrigerator Thimble
6WP3400012 Whirlpool Refrigerator Screw
7W10141596 Whirlpool Screw Assembly
8W10136735 Whirlpool Refrigerator Door Gasket
10WP2223752 Whirlpool Refrigerator Door Cam
11WP8281163 Whirlpool Refrigerator Screw
12Bracket, Door Stop (Chrome)
13SCREW
