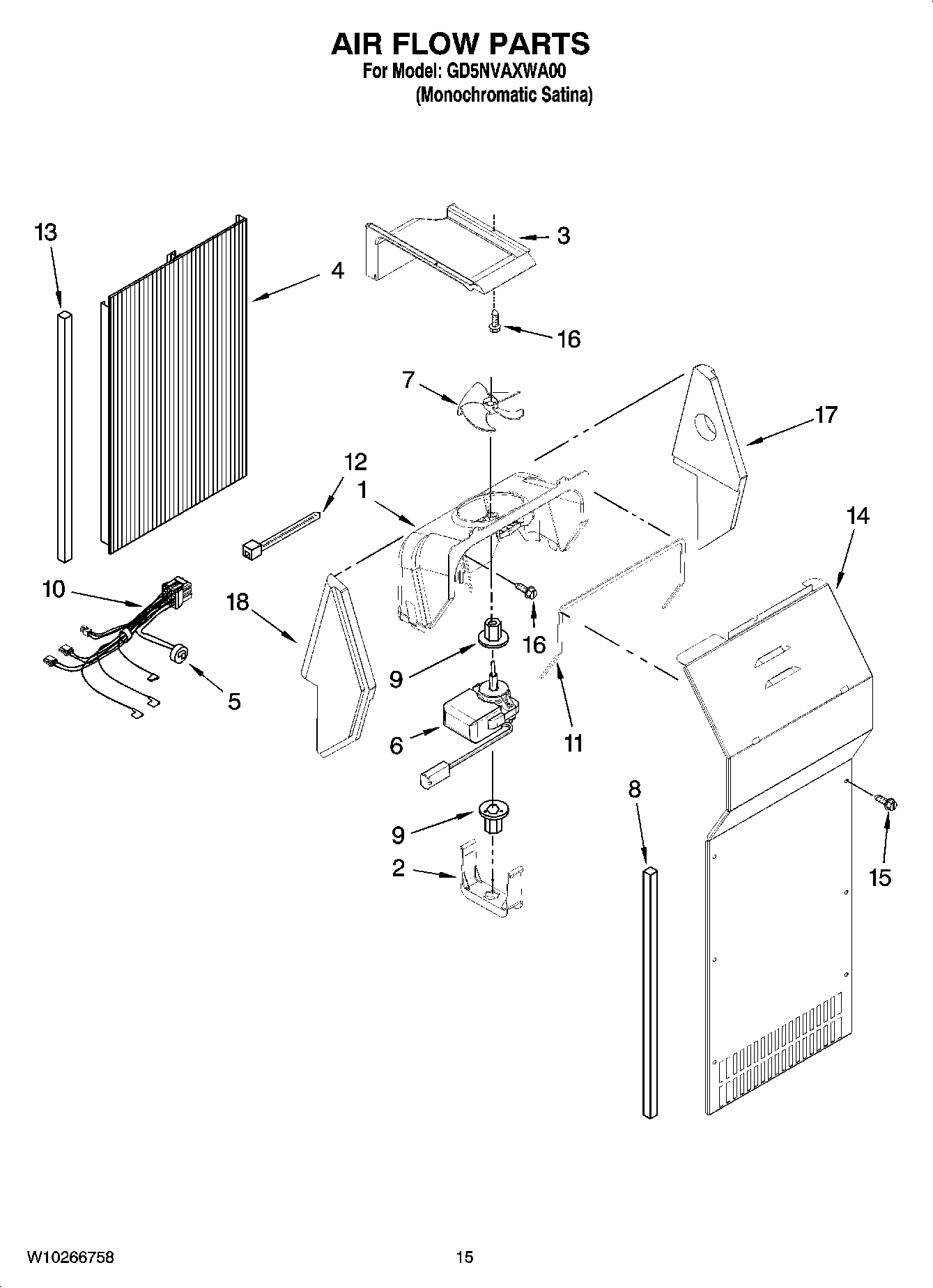

GD5NVAXWA00 09 – AIR FLOW PARTS

GD5NVAXWA00 09 – AIR FLOW PARTS

Written by

in

GD5NVAXWA00 09 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
32313359 Whirlpool Refrigerator Air Duct
4Air Duct Freezer
5WPW10225581 Whirlpool Refrigerator Defrost Thermostat
6MOTOR-EVAP
7WP2169142 Whirlpool Fan Blade
8WP2304241 Whirlpool Refrigerator Gasket
9WP2176759 Whirlpool Refrigerator Grommet
10Harness, Fan Evaporator (Includes 6)
11WP2155789 Whirlpool Refrigerator Gasket
12WPW10339879 Whirlpool Wire Tie
134388500 Whirlpool Refrigerator Gasket
14Cover, Evaporator (Includes 9)
15WP489427 Whirlpool Refrigerator Screw
16WP489478 Whirlpool Refrigerator Screw
174388358 Whirlpool Refrigerator Support Bracket
