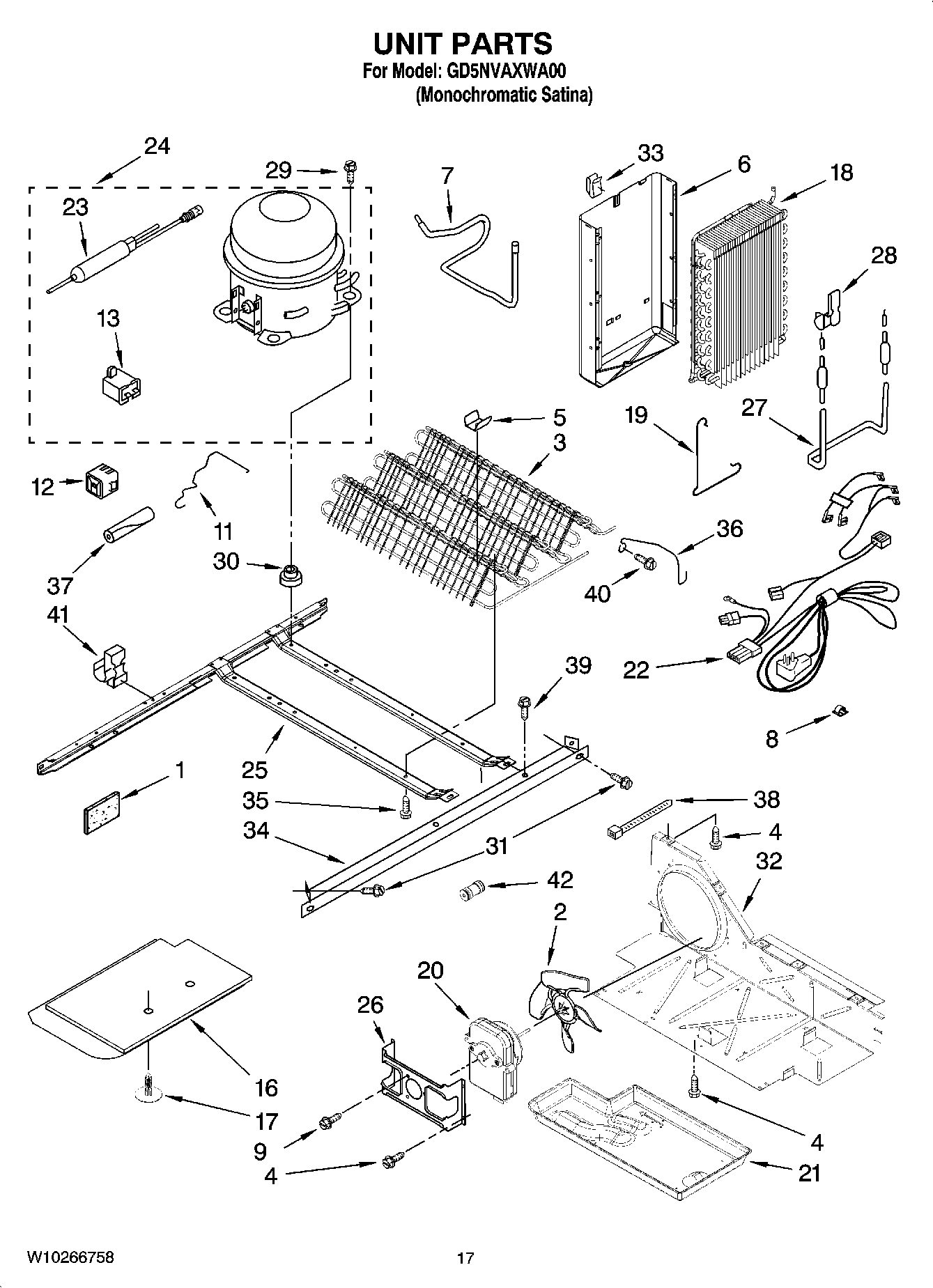

GD5NVAXWA00 11 – UNIT PARTS

Products

Position	Product
	978026 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
1	W11553819 Whirlpool Refrigerator Insulation
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	W11512417 Whirlpool Drain Connector
5	W10683556 Whirlpool Refrigerator Clip
6	Heat Shield
7	WP2205765 Whirlpool Refrigerator Tube
8	WP1115374 Whirlpool Refrigerator Clip
9	WP8533993 Whirlpool Refrigerator Screw
11	W10204187 Whirlpool Refrigerator Retainer
12	WPW10189190 Whirlpool Start Device
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
16	Unit Cover, Bottom
17	489396 Whirlpool Refrigerator Clip
18	WP2188823 Whirlpool Refrigerator Evaporator
19	Clamp
20	WP2188874 Whirlpool Refrigerator Condenser Motor
21	WPW10614158 Whirlpool Refrigerator Evaporator Tray
22	Harness, Unit
23	WPW10143759 Whirlpool Dryer Filter
24	W10139462 Whirlpool Refrigerator Compressor
25	2304904 Whirlpool Frame Assembly
26	WP2181929 Whirlpool Refrigerator Bracket
27	WP2323198 Whirlpool Refrigerator Heater
28	W11623163 Whirlpool Refrigerator Clip
30	876811 Whirlpool Grommet
31	489340 Whirlpool Refrigerator Screw
32	W10896764 Whirlpool Refrigerator Air Baffle
33	Clip, Heat Shield
34	2305374 Whirlpool Refrigerator Unit Rail
35	W11544659 Whirlpool Refrigerator Screw
36	2260517 Whirlpool Fan Guard
37	SLEEVE
38	WPW10339879 Whirlpool Wire Tie
39	WP489427 Whirlpool Refrigerator Screw
40	WP489478 Whirlpool Refrigerator Screw
41	Clip, Wire & Tube
42	WPW10271543 Whirlpool Refrigerator Connector
