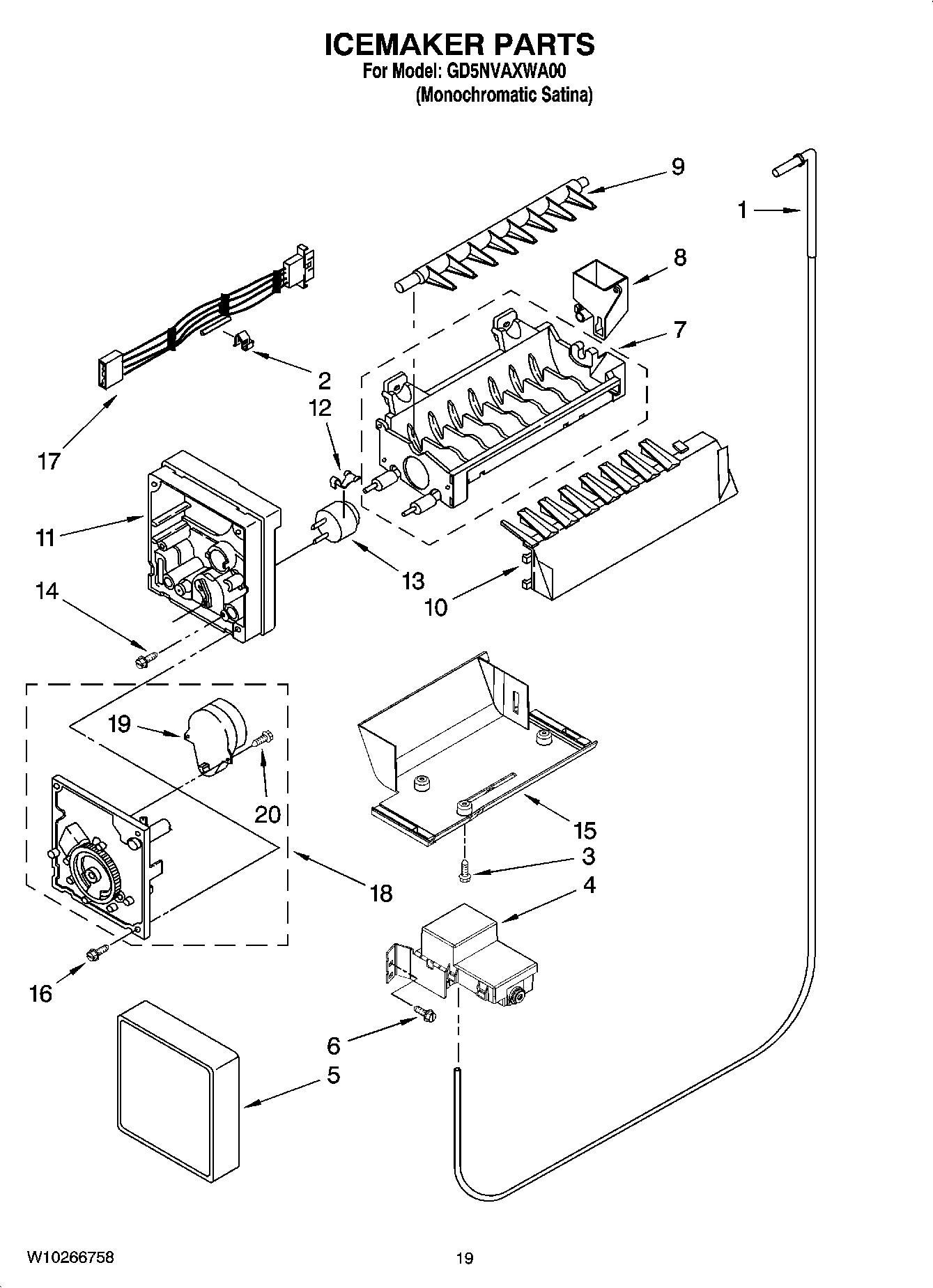

GD5NVAXWA00 12 – ICEMAKER PARTS

Products

PositionProduct
1Fitting, Water Tube
2WP628379 Whirlpool Refrigerator Clip
3WP489478 Whirlpool Refrigerator Screw
4WPW10159839 Whirlpool Refrigerator Inlet Valve
5WPW10289690 Whirlpool Ice Maker Cover
6WPW10141625 Whirlpool Refrigerator Screw Assembly
7WPW10190929 Whirlpool Refrigerator Ice Maker Mold
8WPW10272168 Whirlpool Refrigerator Water Fill Cup
9WP627843 Whirlpool Refrigerator Ejector Arm
10W10297244 Whirlpool Refrigerator Arm Strip
11WP2195914 Whirlpool Refrigerator Ice Maker Housing
12WP2315522 Whirlpool Refrigerator Clip
13WP627985 Whirlpool Icemaker Cycling Thermostat
148533917 Whirlpool Refrigerator Screw
15BRACKET, ICEMAKER MOUNTING
16WP681249 Whirlpool Screw Assembly
17WP2187467 Whirlpool Refrigerator Wire Harness
198201515 Whirlpool Refrigerator Motor and Gear Module Kit
20489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
