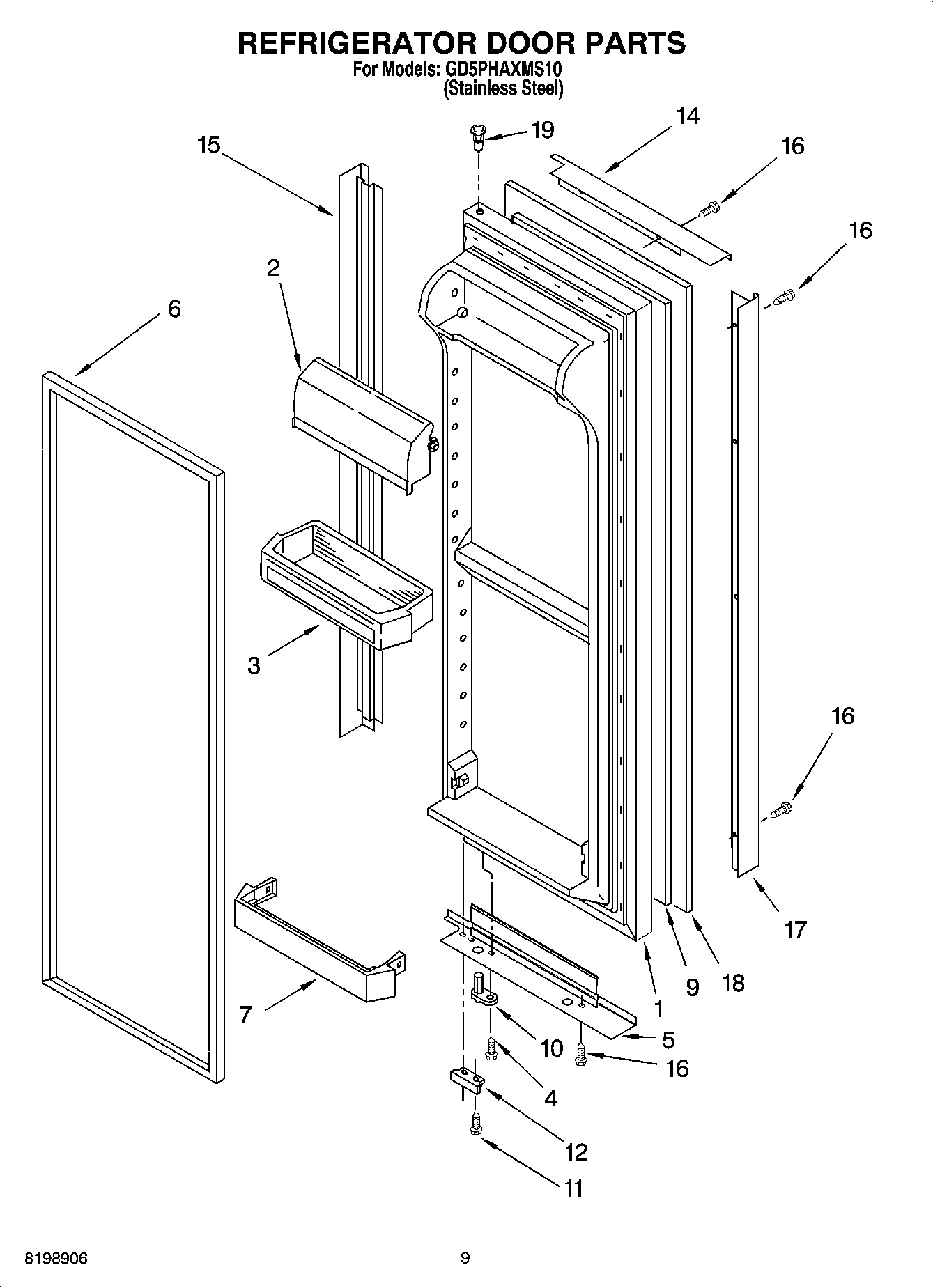

GD5PHAXMS10 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Black)
2	WP2256101 Whirlpool Dairy Door
3	Door Bin (3)
4	WP3400012 Whirlpool Refrigerator Screw
5	Trim, Door Bottom (Stainless Steel)
6	2159083 Whirlpool Gasket Door
7	WP2318736 Whirlpool Refrigerator Door Trim
9	Filler Board
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	Bracket, Door Stop (Black)
14	Trim, Door Top (Stainless Steel)
15	Trim, Hinge Side (Stainless Steel)
16	WP3196175 Whirlpool Screw
17	Handle (Stainless Steel)
18	Panel, Door (Stainless Steel)
19	WP2182181 Whirlpool Refrigerator Thimble
