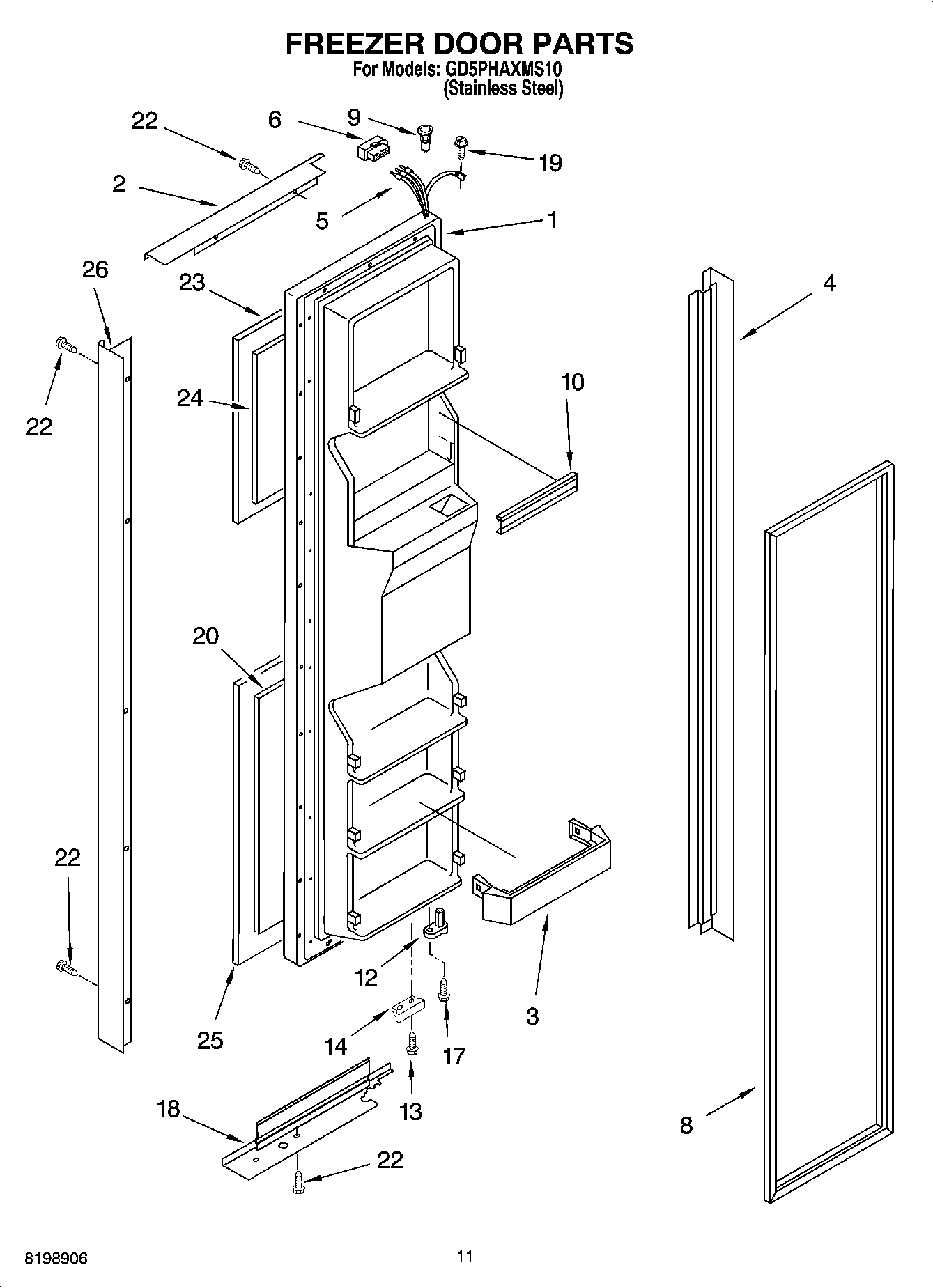

GD5PHAXMS10 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2	Trim, Door Top (Stainless Steel)
3	WP2171157 Whirlpool Shelf Trim
4	Trim, Hinge Side (Stainless Steel)
5	2198619 Whirlpool Refrigerator Wire Harness
6	WP2154473 Whirlpool Refrigerator Connector
8	2159082 Whirlpool Freezer Door Gasket Black
9	WP2182181 Whirlpool Refrigerator Thimble
10	WPW10307490 Whirlpool Door Trim Assembly
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
17	WP3400012 Whirlpool Refrigerator Screw
18	Trim, Door Bottom (Stainless Steel)
19	WP489128 Whirlpool Refrigerator Screw
20	Filler, Board Lower
22	WP3196175 Whirlpool Screw
23	Panel, Door Upper (Stainless Steel)
24	Filler, Board Upper
25	Panel, Door Lower (Stainless Steel)
26	Handle (Stainless Steel)
