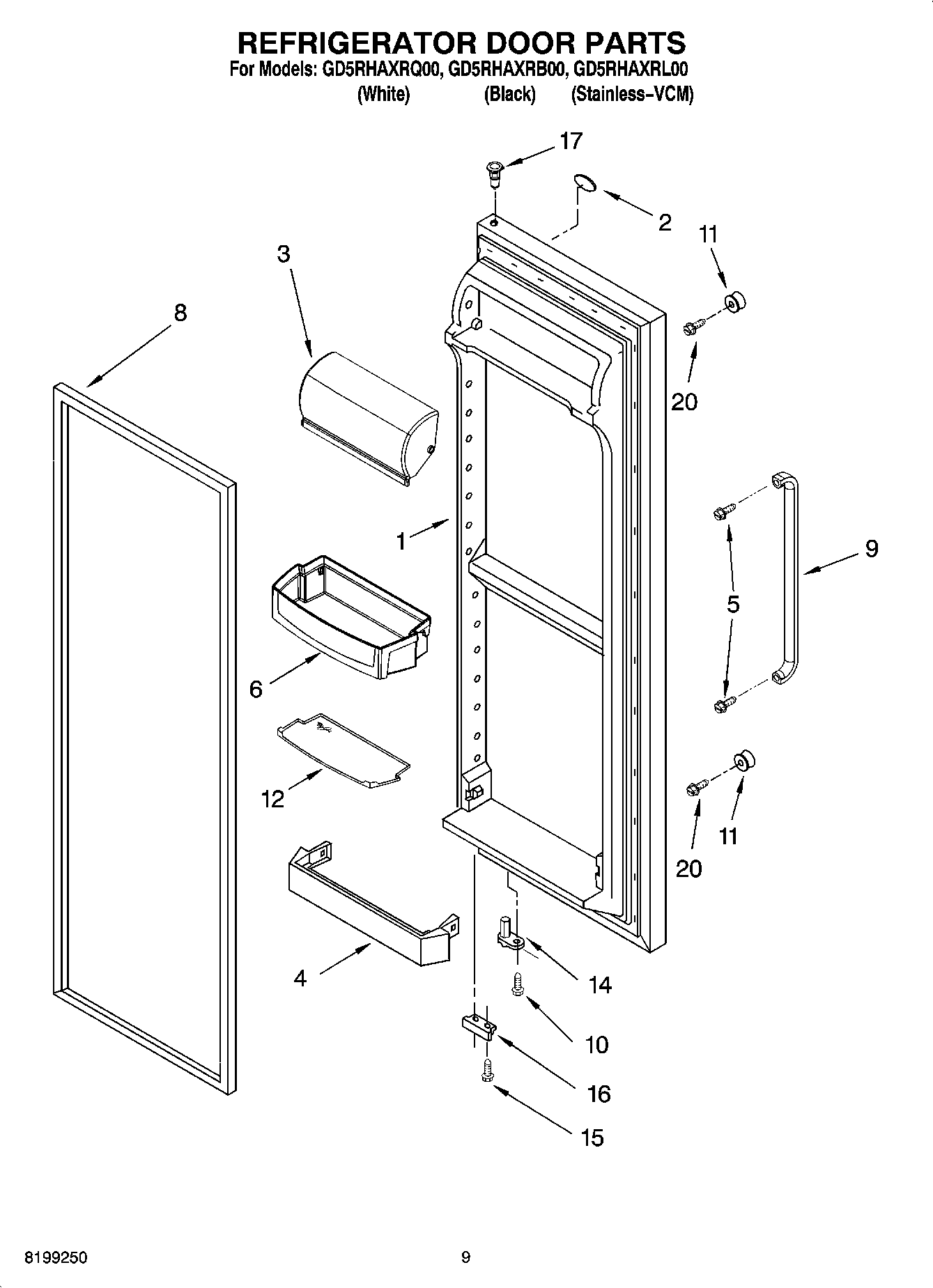

GD5RHAXRB00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 8) (White)
1	Refrigerator Door (Includes Item 8) (Black)
1	Refrigerator Door (Includes Item 8) (Stainless-VCM)
2	Nameplate
3	WP2256101 Whirlpool Dairy Door
4	WP2318736 Whirlpool Refrigerator Door Trim
5	Screw
6	Door Bin (3)
8	2159083 Whirlpool Gasket Door
8	2159075 Whirlpool Door Gasket Seal
9	Handle, Center (Stainless)
9	Handle, Center (Black)
9	Handle, Center (White)
10	WP3400012 Whirlpool Refrigerator Screw
11	WPW10170540 Whirlpool Screw
12	Mat, Bin
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	WP2206629B Whirlpool Refrigerator Bracket
17	WP2182181 Whirlpool Refrigerator Thimble
20	WP488163 Whirlpool Refrigerator Screw
