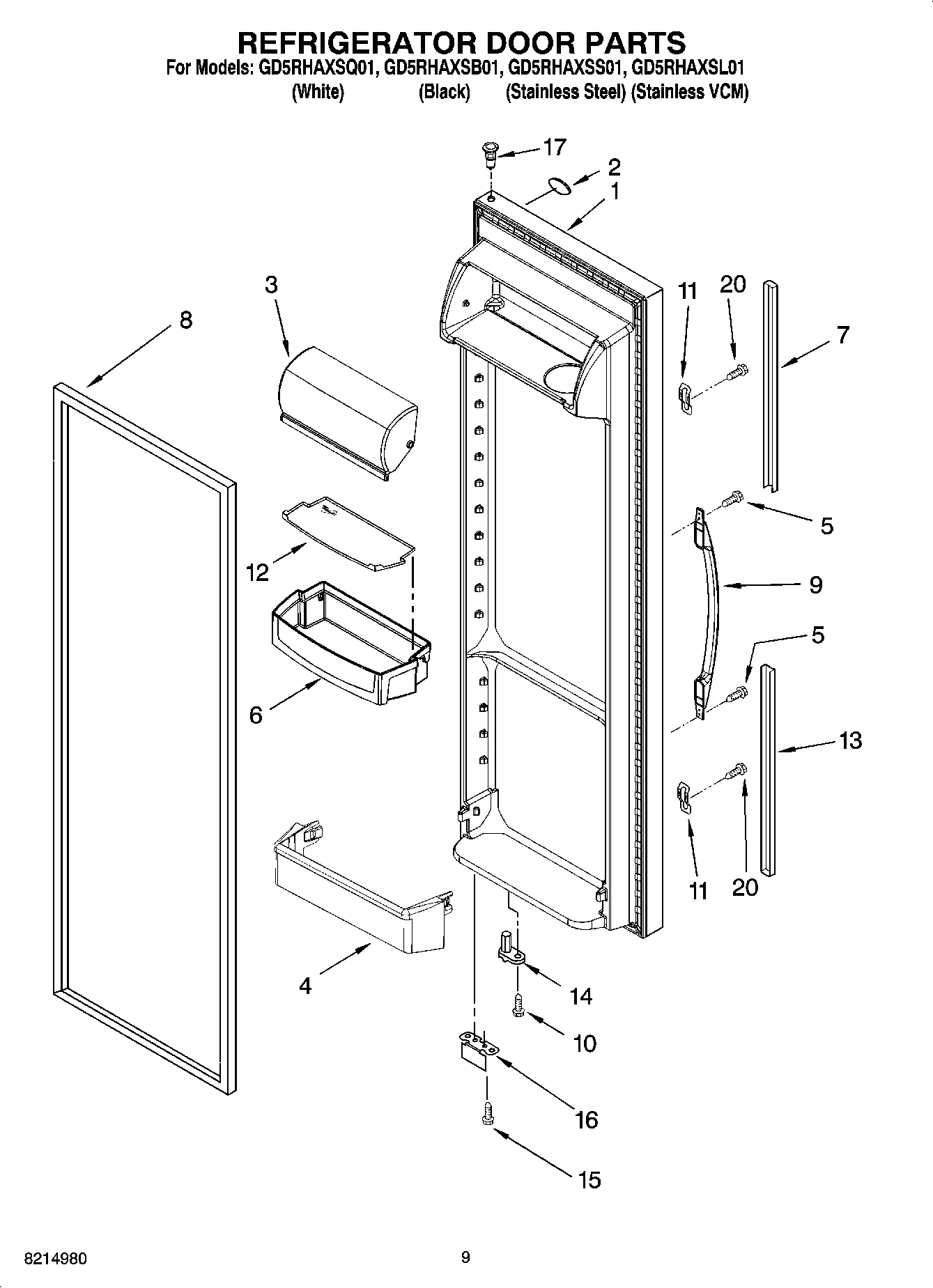

GD5RHAXSB01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Stainless Steel)
1	Refrigerator Door (Includes Item 6) (Stainless-VCM)
1	Refrigerator Door (Includes Item 6) (Black)
2	Nameplate
3	WP2256101 Whirlpool Dairy Door
4	WP2318736 Whirlpool Refrigerator Door Trim
5	WP489491 Whirlpool Refrigerator Screw
6	Door Bin (3)
7	Extension, Top (Black)
7	WP2194973W Whirlpool Door Trim
8	2159075 Whirlpool Door Gasket Seal
8	2159083 Whirlpool Gasket Door
9	Handle, Center (White)
9	WP2186649B Whirlpool Refrigerator Handle
10	WP3400012 Whirlpool Refrigerator Screw
11	WP2195327 Whirlpool Refrigerator Clip
12	Mat, Bin (2)
13	WP2194969B Whirlpool Refrigerator Handle Trim
13	Extension, Bottom (White)
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	WP2206629B Whirlpool Refrigerator Bracket
17	Thimble, Top (For Stainless Steel Models)
17	WP2182181 Whirlpool Refrigerator Thimble
20	WP3400852 Whirlpool Refrigerator Screw
