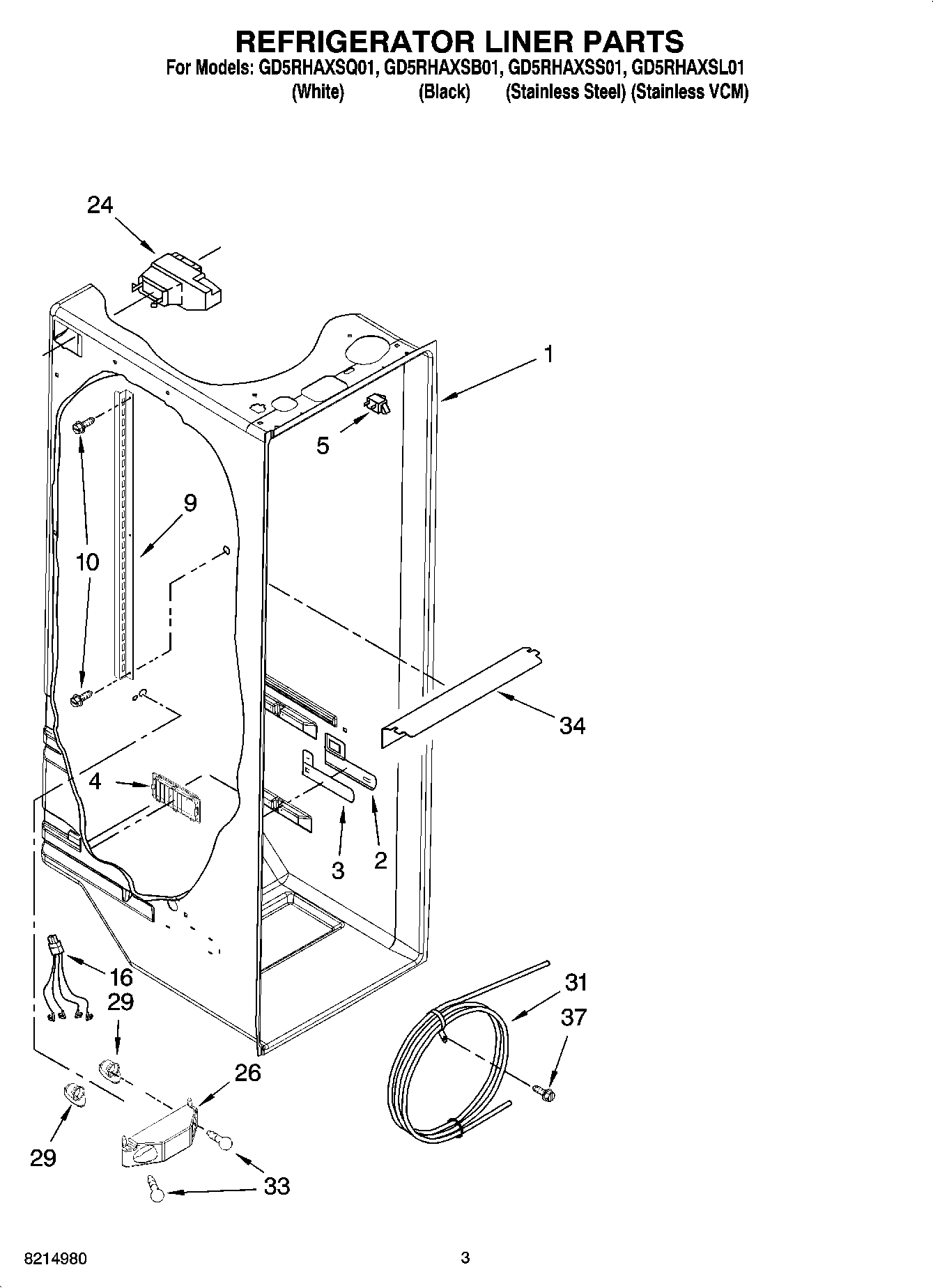

GD5RHAXSQ01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	W11384469 Whirlpool Door Switch
9	Shelf Ladder
10	WP489478 Whirlpool Refrigerator Screw
16	2311637 Whirlpool Refrigerator Wire Harness
24	WPW10151374 Whirlpool Refrigerator Diffuser
26	Bracket, Dual Crisper Light
29	4387478 Whirlpool Refrigerator Light Socket
31	WP2256126 Whirlpool Refrigerator Reservoir
33	RANGE ONLY 40W 120V APPL BULB
34	Light Lens
37	Screw (2)
