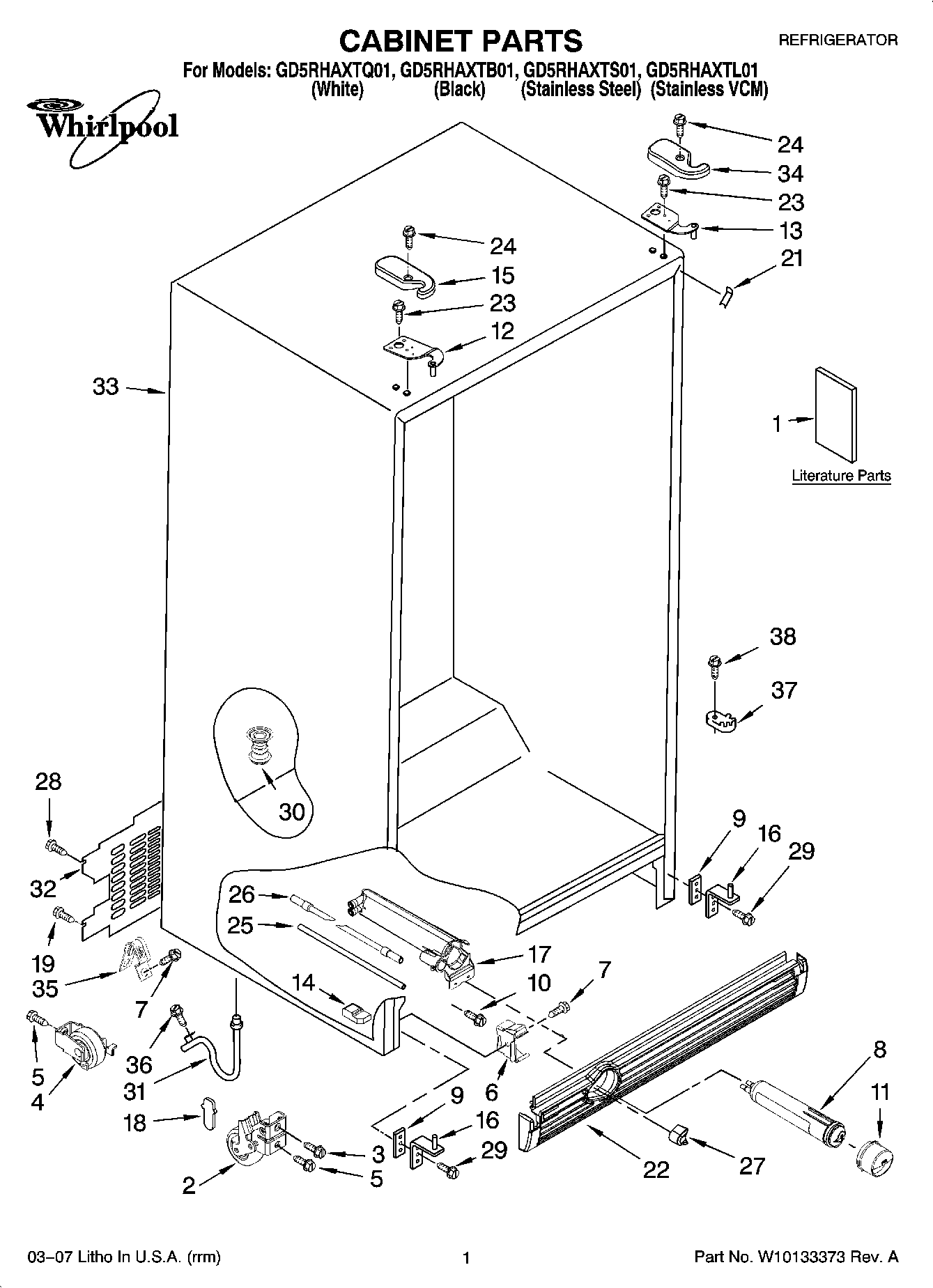

GD5RHAXTB01 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	INSTRUCTION SHEET, DOOR REMOVAL
1	Service & Wiring Sheet
1	Energy Guide
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	FILTER 3-SINGLE TEAL
9	WP2181911 Whirlpool Refrigerator Shim
10	WP489500 Whirlpool Refrigerator Screw
11	WP2260518W Whirlpool Refrigerator Filter Cap
11	WP2260518B Whirlpool Water Filter Cap
12	WP2203770 Whirlpool Refrigerator Door Hinge
13	WP2203771 Whirlpool Refrigerator Door Hinge
14	Block, Housing Support
15	WP2203407B Whirlpool Refrigerator Cover
15	WP2203407W Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	WPW10121138 Whirlpool Refrigerator Water Filter Housing
18	Flappper, Drain Extension
19	WP488488 Whirlpool Refrigerator Screw
21	Filler, Wrapper (White)
21	Filler, Wrapper (Black)
22	WPW10311032 Whirlpool Refrigerator Grille
22	WPW10311033 Whirlpool Refrigerator Grille
24	WP8281227 Whirlpool Screw
25	WPW10350006 Whirlpool Refrigerator Water Tube
26	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
27	WP2260503B Whirlpool Refrigerator Button
27	2260503W Whirlpool Refrigerator Button
28	WP489464 Whirlpool Refrigerator Screw
29	WP489497 Whirlpool Screw
30	W11566763 Whirlpool Fitting
31	Extension Tube
32	WP2188755 Whirlpool Rear Panel
33	Cabinet, (Not A Serviceable Part)
34	WP2203408B Whirlpool Refrigerator Cover
34	WP2203408W Whirlpool Refrigerator Cover
35	549193 Whirlpool Refrigerator Power Clamp
37	WPW10329686 Whirlpool Door Cam Black
38	WP489483 Whirlpool Screw
