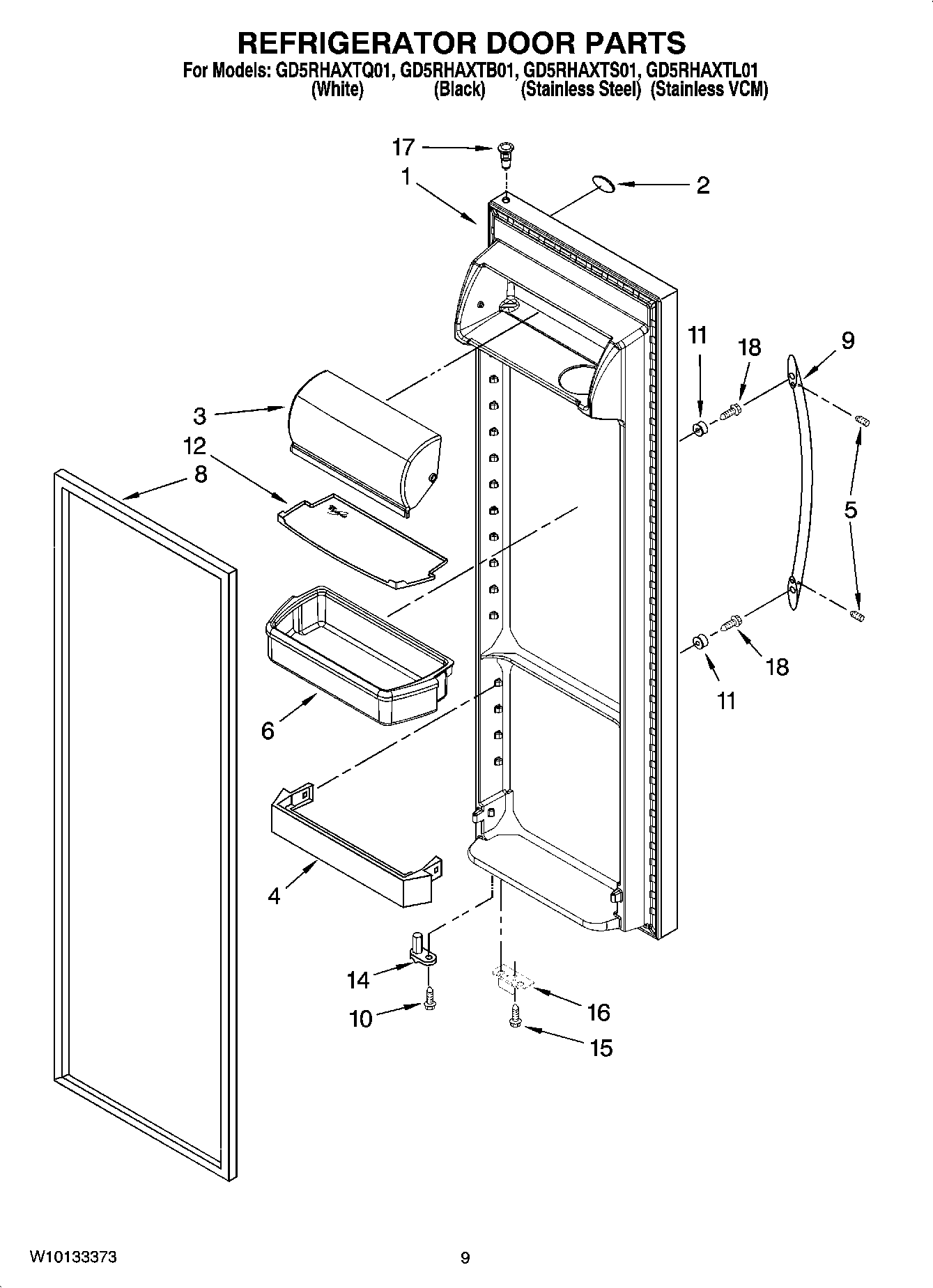

GD5RHAXTB01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEM 6) )(BLACK)
1	Refrigerator Door (Includes Item 6) (Stainless VCM)
1	REFRIGERATOR DOOR (INCLUDES ITEM 6) )(WHITE)
1	Refrigerator Door (Includes Item 6) (Stainless Steel)
2	Nameplate
3	WP2256101 Whirlpool Dairy Door
4	WP2318736 Whirlpool Refrigerator Door Trim
5	SCREW
6	Door Bin (3)
8	2159075 Whirlpool Door Gasket Seal
8	2159083 Whirlpool Gasket Door
9	Handle (Stainless)
9	WP2254600W Whirlpool Refrigerator Handle
9	WP2254600B Whirlpool Refrigerator Handle
10	WP3400012 Whirlpool Refrigerator Screw
11	WPW10170540 Whirlpool Screw
12	Mat, Bin (2)
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	WP2206629B Whirlpool Refrigerator Bracket
17	Thimble, Top (For Stainless Steel Models)
17	WP2182181 Whirlpool Refrigerator Thimble
18	WP488163 Whirlpool Refrigerator Screw
