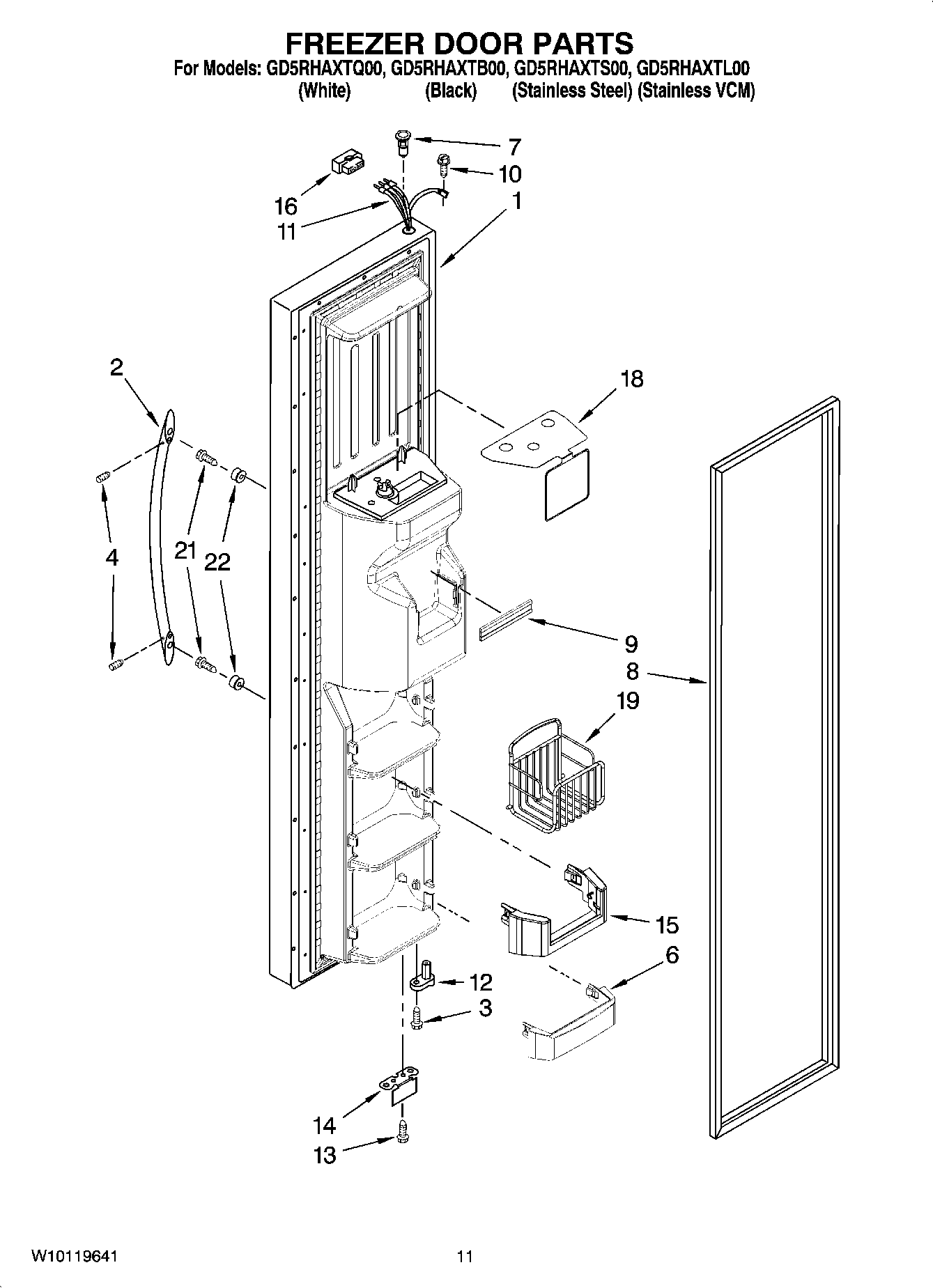

GD5RHAXTL00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless-VCM)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
2	WP2254600B Whirlpool Refrigerator Handle
2	Handle (Stainless)
2	WP2254600W Whirlpool Refrigerator Handle
3	WP3400012 Whirlpool Refrigerator Screw
4	SCREW
6	WP2171157 Whirlpool Shelf Trim
7	WP2182181 Whirlpool Refrigerator Thimble
7	Thimble, Top (For Stainless Steel Models)
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	2198619 Whirlpool Refrigerator Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
15	TRIVET, TILT-OUT
16	WP2154473 Whirlpool Refrigerator Connector
18	Safety Barrier
19	Basket, Tilt Out
21	WP488163 Whirlpool Refrigerator Screw
22	WPW10170540 Whirlpool Screw
