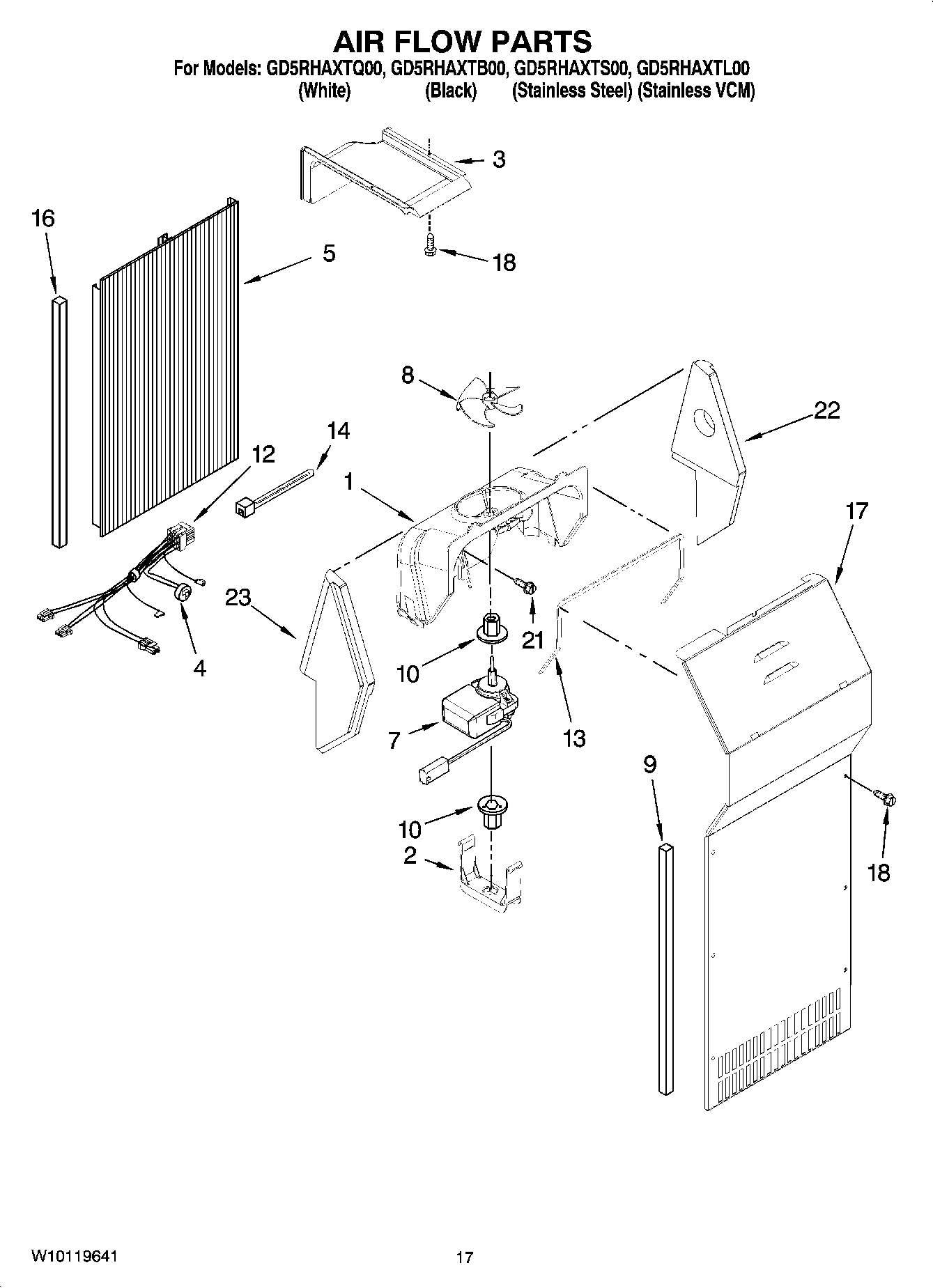

GD5RHAXTL00 10 – AIR FLOW PARTS

Products

Position	Product
1	WP2182120 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	2313359 Whirlpool Refrigerator Air Duct
4	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5	Air Duct Freezer
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
9	WP2304241 Whirlpool Refrigerator Gasket
10	WP2176759 Whirlpool Refrigerator Grommet
12	W11234406 Whirlpool Refrigerator Wire Harness
13	WP2155789 Whirlpool Refrigerator Gasket
14	WPW10339879 Whirlpool Wire Tie
16	4388500 Whirlpool Refrigerator Gasket
17	Cover, Evaporator (Includes 9)
18	4389654 Whirlpool Screw
21	WP489478 Whirlpool Refrigerator Screw
22	4388358 Whirlpool Refrigerator Support Bracket
