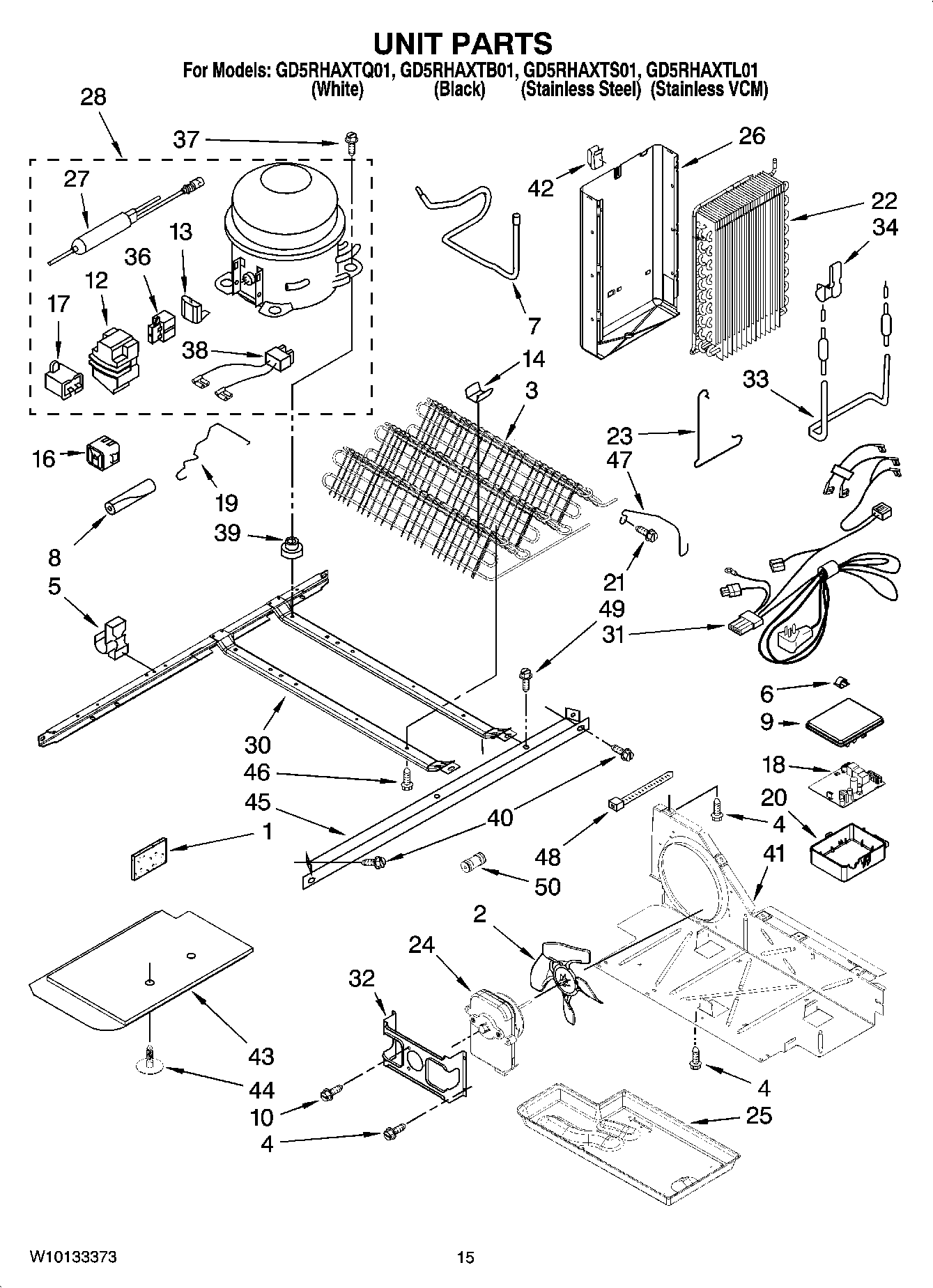

GD5RHAXTQ01 09 – UNIT PARTS

Products

Position	Product
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10169512 Whirlpool Clip
6	WP1115374 Whirlpool Refrigerator Clip
7	WP2205765 Whirlpool Refrigerator Tube
8	SLEEVE
9	Box Cover
10	WP8533993 Whirlpool Refrigerator Screw
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2154697 Whirlpool Refrigerator Overload
14	W10683556 Whirlpool Refrigerator Clip
16	WP2304885 Whirlpool Refrigerator Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	Electronic Control
19	2223314 Whirlpool Refrigerator Clip
20	Box, Control
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
27	WPW10143759 Whirlpool Dryer Filter
28	W10139460 Whirlpool Refrigerator Compressor
30	2304904 Whirlpool Frame Assembly
31	Unit, Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
36	W10920279 Whirlpool Refrigerator Start Relay
38	WP2172890 Whirlpool Refrigerator Wire
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	Unit Cover, Bottom
44	489396 Whirlpool Refrigerator Clip
45	2305374 Whirlpool Refrigerator Unit Rail
46	W11544659 Whirlpool Refrigerator Screw
47	2260517 Whirlpool Fan Guard
48	WPW10339879 Whirlpool Wire Tie
49	WP489427 Whirlpool Refrigerator Screw
50	Following Parts Not Illustra
50	VALVE, ACCESS (5/8“)
50	WPL ARI63893A4
50	876764 Whirlpool Refrigerator Primary Valve
50	978027 Whirlpool Refrigerator Primary Valve
50	978030 Whirlpool Refrigerator Valve
50	WP978025 Whirlpool Refrigerator Valve
50	VALVE, ACCESS (1/2“)
50	978026 Whirlpool Refrigerator Primary Valve
50	WP4373559 Whirlpool Fitting
50	WPL ARI63894A6
