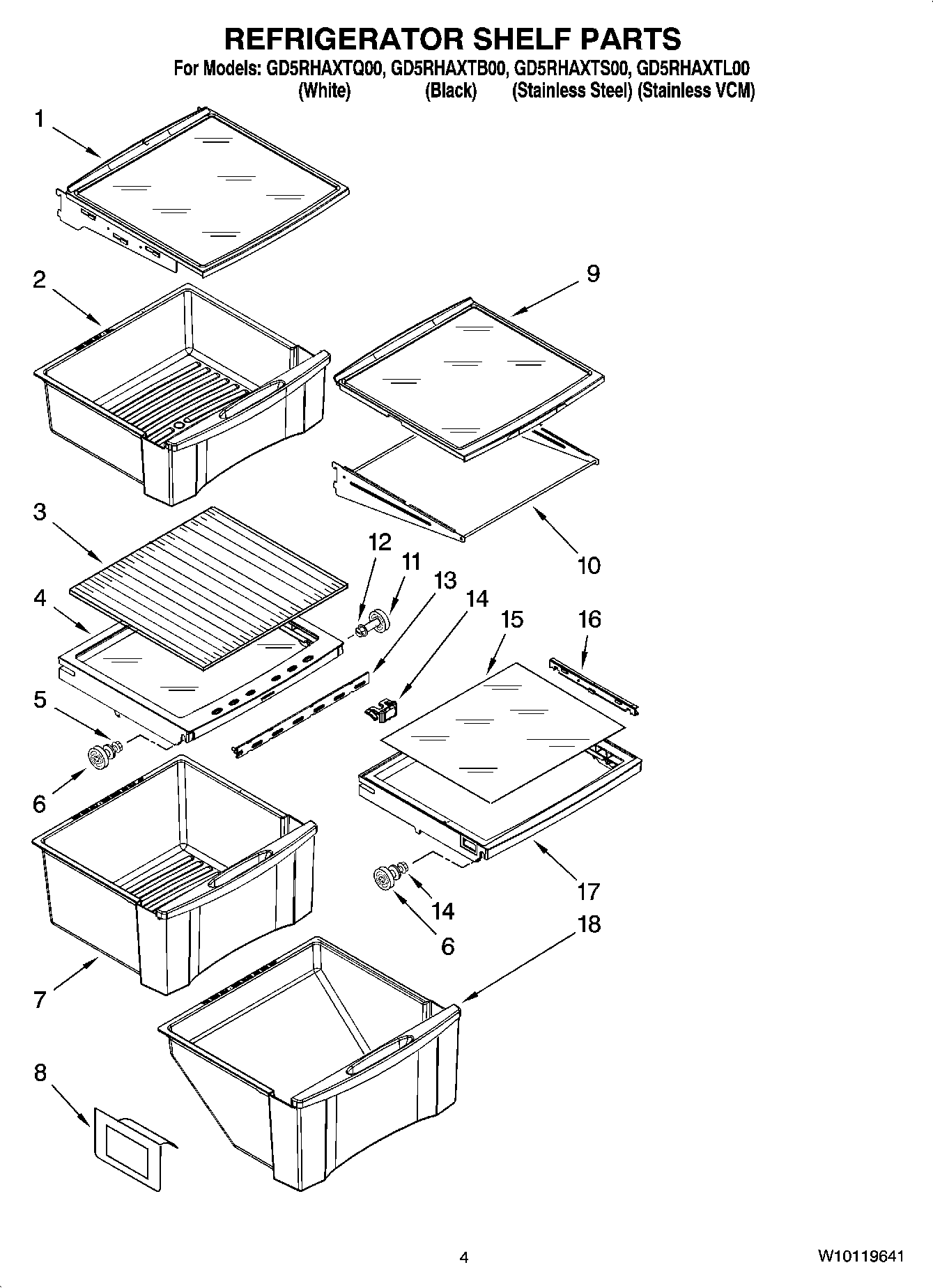

GD5RHAXTS00 03 – REFRIGERATOR SHELF PARTS

GD5RHAXTS00 03 – REFRIGERATOR SHELF PARTS

Written by

in

GD5RHAXTS00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1WP2223288 Whirlpool Refrigerator Cantilever Shelf
2Snack Bin Asm
3WP2223591 Whirlpool Refrigerator Glass Shelf
4Cover, Crisper
5WP3-24004-109 Whirlpool Refrigerator Screw
6W11223328 Whirlpool Refrigerator Shelf Stud
7WPW10233488 Whirlpool Refrigerator Crisper Pan
82179350 Whirlpool Refrigerator Deflector
9Shelf, Slide Out (2)
10Frame Assembly (2)
11WP2196483 Whirlpool Refrigerator Shelf Stud
12WP3400806 Whirlpool Screw
132223308 Whirlpool Refrigerator Slide
14Knob, Humidity Control
15Glass, Meat Cover
16WP2223320 Whirlpool Slide Track Pan
17WP2223242 Whirlpool Refrigerator Cover
18Meat Pan Assembly
