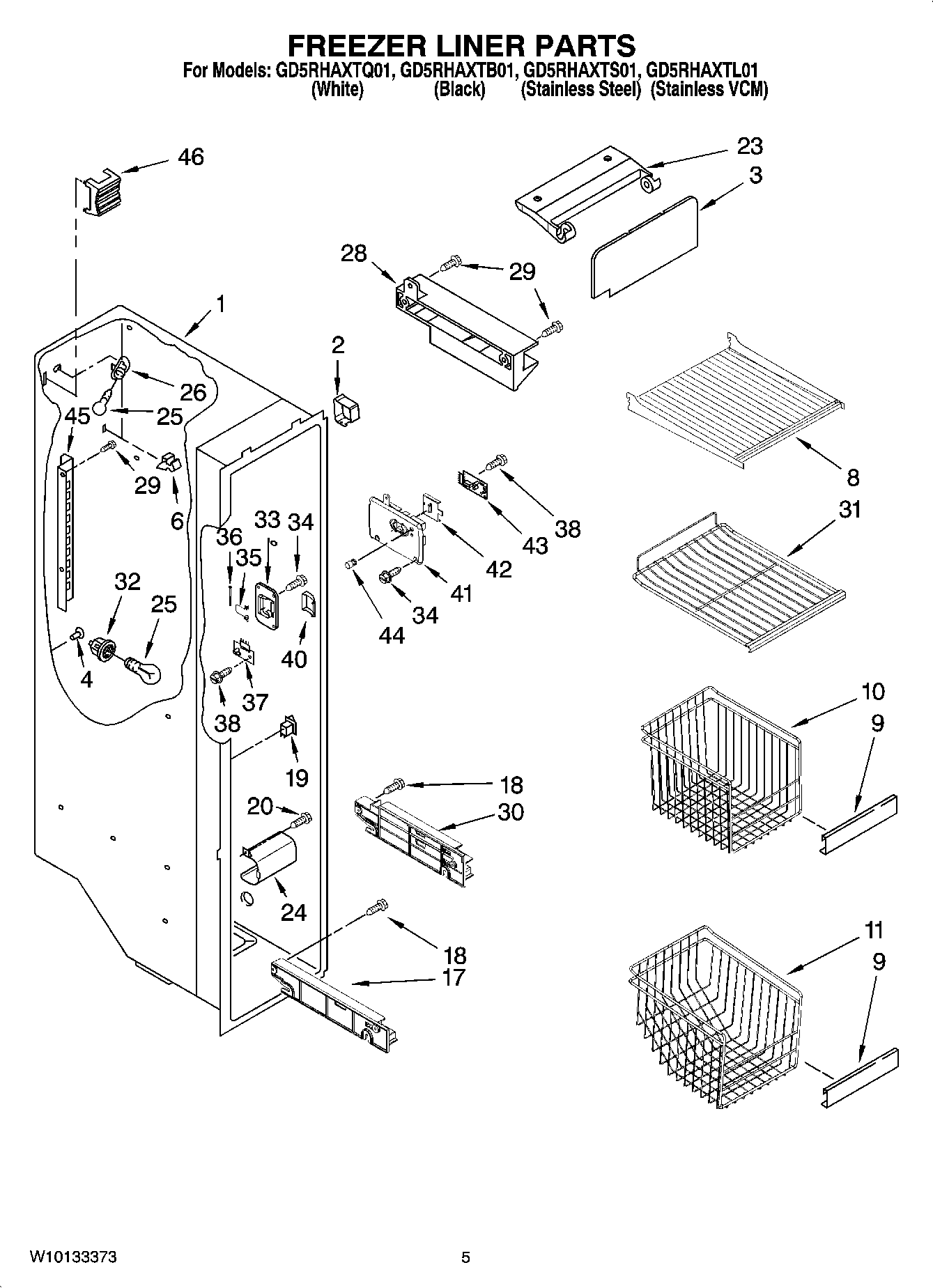

GD5RHAXTS01 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	2303234 Whirlpool Refrigerator Shield
3	WP2255720 Whirlpool Refrigerator Ice Maker Door
4	WP941839 Whirlpool Refrigerator Button Plug
6	2215823 Whirlpool Refrigerator Clip
8	Shelf (2)
9	Trim, Basket
10	Basket, Tall
11	Basket, Sloped
17	Shelf Track (Right Side)
17	Shelf Track (Left Side)
18	W10759522 Whirlpool Screw
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	W10142289 Whirlpool Air Conditioner Screw
23	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
24	Light Lens
25	RANGE ONLY 40W 120V APPL BULB
26	4387478 Whirlpool Refrigerator Light Socket
28	Slide, Ice Maker
29	WP489478 Whirlpool Refrigerator Screw
30	Track, Basket-Dual (Left)
30	2301293 Whirlpool Refrigerator Track
31	Shelf, Slide Out Upper
32	SOCKET
33	WP2198587 Whirlpool Refrigerator Cover
34	WPW10142283 Whirlpool Refrigerator Screw
35	WP2198635 Whirlpool Refrigerator Spring
36	WP2198634 Whirlpool Door Pin
37	W10757851-includeCORE Whirlpool Electronic Control+Core
38	2006254 Whirlpool Refrigerator Screw
40	WP2198633 Whirlpool Refrigerator Flipper
41	Cover, Receiver
42	2315398 Whirlpool Refrigerator Slide
44	WP2198643 Whirlpool Refrigerator Lens
45	Ladder (Right Side)
45	Ladder (Left Side)
46	Light Shield
