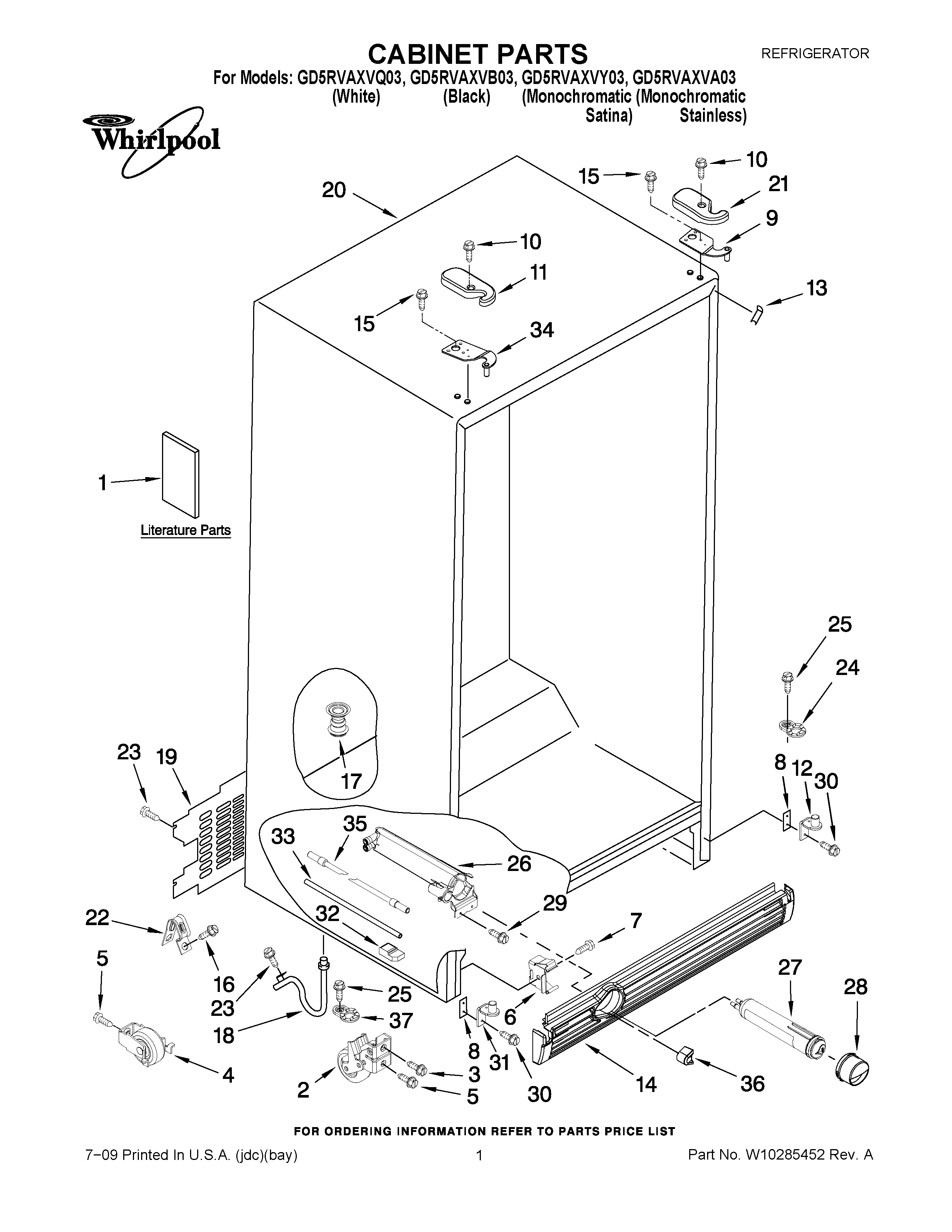

GD5RVAXVA03 01 – CABINET PARTS

Products

Position	Product
1	OWNER S MANUAL
1	Service & Wiring Sheet
1	Energy Guide
1	INSTRUCTION SHEET, DOOR REMOVAL
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WPW10141604 Whirlpool Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WP8281227 Whirlpool Screw
11	Hinge Cover (RC) (White)
11	Hinge Cover (RC) (Apollo Grey)
11	Hinge Cover (RC) (Black)
12	W10138965 Whirlpool Refrigerator Door Hinge
13	Filler, Wrapper (Apollo Grey)
13	Filler, Wrapper (Black)
13	Filler, Wrapper (White)
14	WPW10311032 Whirlpool Refrigerator Grille
14	WPW10184890 Whirlpool Refrigerator Grille
14	WPW10184888 Whirlpool Refrigerator Grille
15	WP489497 Whirlpool Screw
16	WP489464 Whirlpool Refrigerator Screw
17	W11566763 Whirlpool Fitting
18	W11512417 Whirlpool Drain Connector
19	WP2188755 Whirlpool Rear Panel
20	CABINET (NOT A SERVICEABLE PART)
21	Hinge Cover (FC) (Apollo Grey)
21	Hinge Cover (FC) (White)
21	Hinge Cover (FC) (Black)
22	549193 Whirlpool Refrigerator Power Clamp
24	WPW10329686 Whirlpool Door Cam Black
25	WP489483 Whirlpool Screw
26	WPW10121138 Whirlpool Refrigerator Water Filter Housing
27	FILTER 3-SINGLE TEAL
28	WP2260518MG Whirlpool Water Filter Cap
28	WP2260518B Whirlpool Water Filter Cap
28	WP2260518W Whirlpool Refrigerator Filter Cap
29	WP489500 Whirlpool Refrigerator Screw
31	2303141 Whirlpool Refrigerator Door Hinge
32	Block, Housing Support
33	WPW10350006 Whirlpool Refrigerator Water Tube
34	WP2203770 Whirlpool Refrigerator Door Hinge
35	TUBE, FILTER INLET
36	2260503W Whirlpool Refrigerator Button
36	WP2260503B Whirlpool Refrigerator Button
36	2260503MG Whirlpool Refrigerator Button
37	WP2223751 Whirlpool Refrigerator Door Cam
