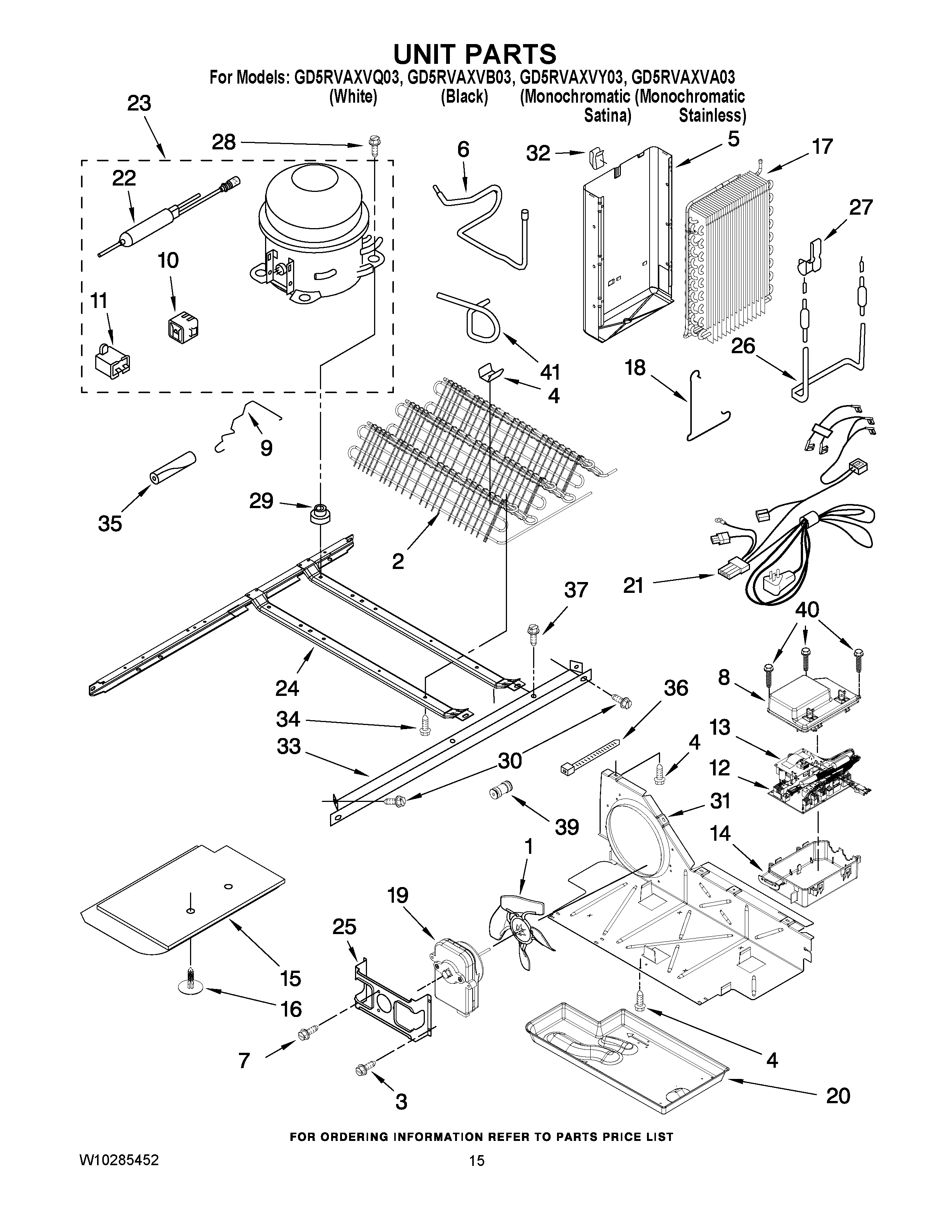

GD5RVAXVB03 09 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W10156818 Whirlpool Refrigerator Fan Blade
2	2324712 Whirlpool Refrigerator Condenser
3	WP489464 Whirlpool Refrigerator Screw
4	W10683556 Whirlpool Refrigerator Clip
5	Heat Shield
6	2313230 Whirlpool Tube
7	WP8533993 Whirlpool Refrigerator Screw
8	2323188 Whirlpool Refrigerator Cover
9	2212996 Whirlpool Refrigerator Retainer
10	WP2313162 Whirlpool Refrigerator Start Device
11	WP65889-4 Whirlpool Refrigerator Capacitor
12	WPW10210789-includeCORE Whirlpool WPW10210789 Refrigerator Electronic Control Board + Core
13	WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
14	2323186 Whirlpool Refrigerator Housing
15	Unit Cover, Bottom
16	489396 Whirlpool Refrigerator Clip
17	WP2188823 Whirlpool Refrigerator Evaporator
18	Clamp
19	WP2188874 Whirlpool Refrigerator Condenser Motor
20	WPW10614158 Whirlpool Refrigerator Evaporator Tray
21	WPW10291106 Whirlpool Refrigerator Wire Harness
22	WPW10143759 Whirlpool Dryer Filter
23	Compressor (Includes Items 11,12,13,14,15, 29 & 32) (Also Order 482801 Installation Kit & 876765 Tube Kit)
24	2304904 Whirlpool Frame Assembly
25	WP2181929 Whirlpool Refrigerator Bracket
26	WP2323198 Whirlpool Refrigerator Heater
27	W11623163 Whirlpool Refrigerator Clip
28	876811 Whirlpool Grommet
29	W11661108 Whirlpool Grommet
30	489340 Whirlpool Refrigerator Screw
31	W10896764 Whirlpool Refrigerator Air Baffle
32	Clip, Heat Shield
33	2305374 Whirlpool Refrigerator Unit Rail
34	W11544659 Whirlpool Refrigerator Screw
35	SLEEVE
36	WPW10339879 Whirlpool Wire Tie
37	Screw
39	WPW10334458 Whirlpool Refrigerator Connector
40	WPW10171469 Whirlpool Refrigerator Screw
41	W10858105 Whirlpool Refrigerator Tube
