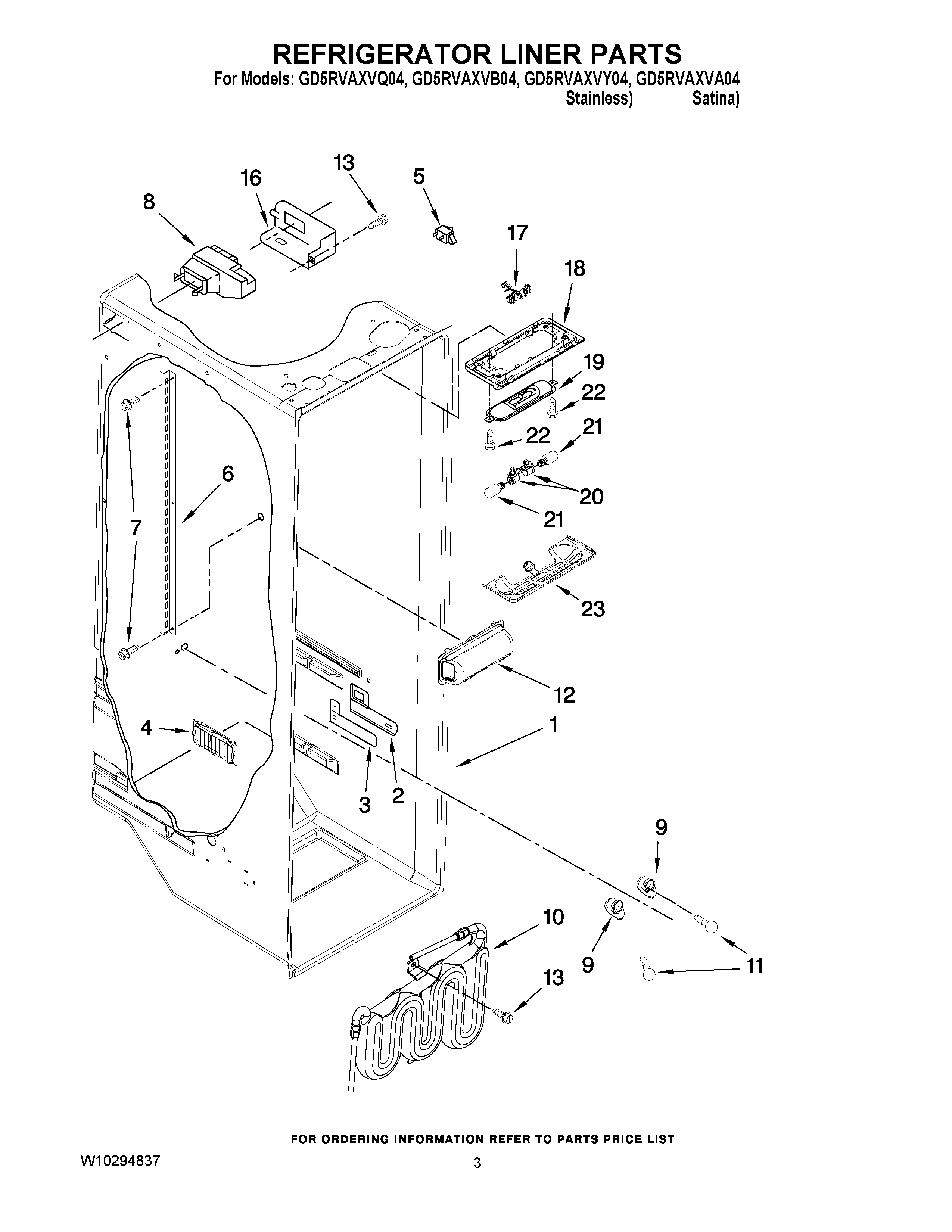

GD5RVAXVB04 02 – REFRIGERATOR LINER PARTS

GD5RVAXVB04 02 – REFRIGERATOR LINER PARTS

Written by

in

GD5RVAXVB04 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11384469 Whirlpool Door Switch
6Shelf Ladder
7WP489478 Whirlpool Refrigerator Screw
8W10899382 Whirlpool Damper Control Assembly
94387478 Whirlpool Refrigerator Light Socket
10RESERVOIR
11RANGE ONLY 40W 120V APPL BULB
12W11239891 Whirlpool Refrigerator Light Lens
13Screw (2)
16W10128735 Whirlpool Refrigerator Cover
172310527 Whirlpool Refrigerator Wire Jumper
18W10284481 Whirlpool Refrigerator Trim
192223680 Whirlpool Refrigerator Shield
20WPW10191429 Whirlpool Refrigerator Socket
21WPA3073101 Whirlpool Light Bulb
22WP3400906 Whirlpool Refrigerator Screw
23WP2223506 Whirlpool Refrigerator Light Lens
