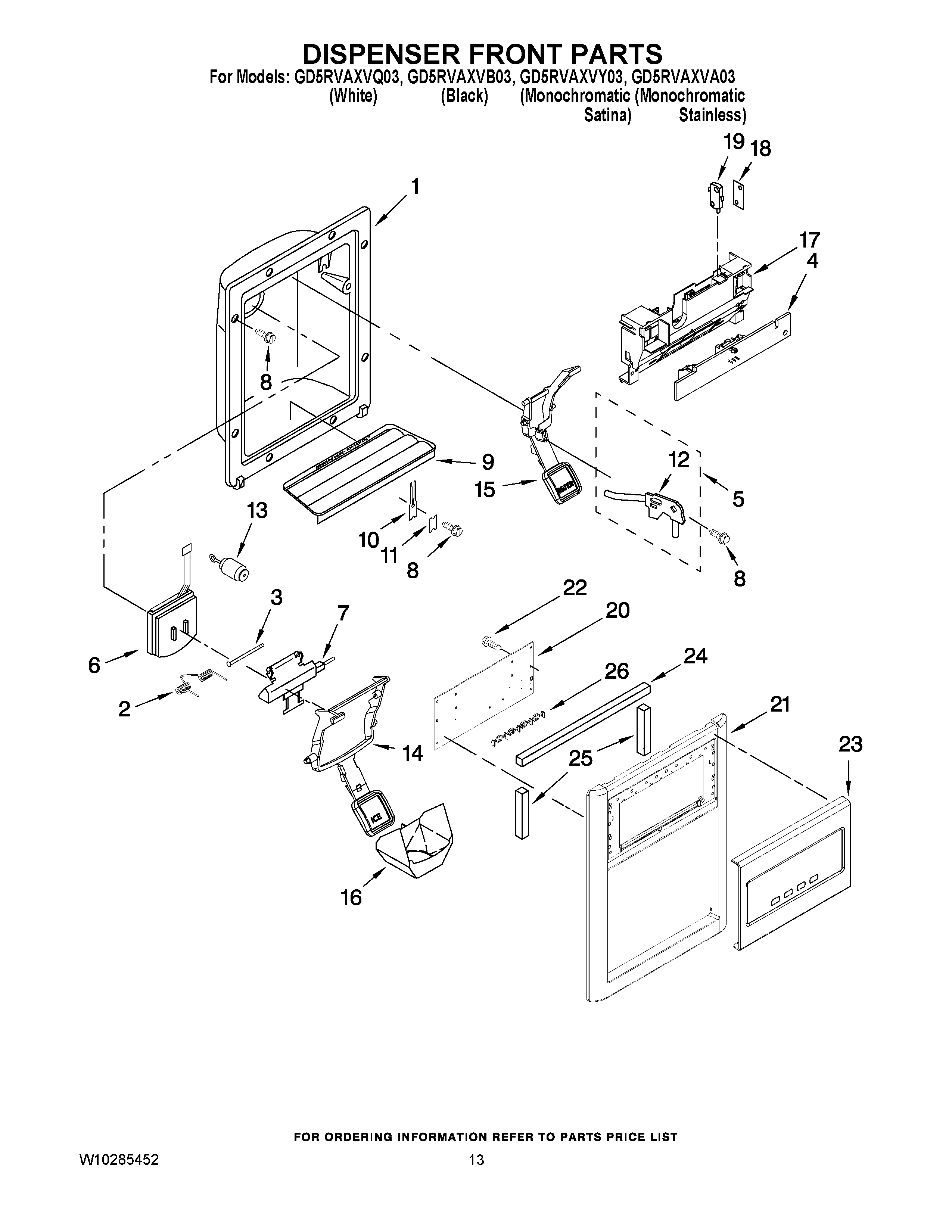

GD5RVAXVQ03 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10224328 Whirlpool Refrigerator Spring
3	WP2196195 Whirlpool Refrigerator Door Pin
4	LED Assy
5	8201537 Whirlpool Water Tubing Assembly
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	WP3400906 Whirlpool Refrigerator Screw
9	WP2206670W Whirlpool Dispenser Tray
9	WP2206670B Whirlpool Dispenser Tray
10	WP2194719 Whirlpool Refrigerator Clip
11	WP2195051 Whirlpool Refrigerator Clip
12	WP2304673 Whirlpool Refrigerator Bracket
13	Delay Mechanism
14	WPW10152853 Whirlpool Refrigerator Dispenser Arm
14	WPW10152854 Whirlpool Refrigerator Dispenser Arm
14	W10155161 Whirlpool Refrigerator Dispenser Arm
15	Lever, Water Dispenser (Apollo Grey)
15	WPW10152858 Whirlpool Refrigerator Dispenser Arm
15	WPW10152859 Whirlpool Refrigerator Dispenser Arm
16	WP2180224 Whirlpool Dispenser Funnel Guide
17	W10728484 Whirlpool Refrigerator Dispenser Control Bracket
18	Spacer, Switch (2)
19	WP2162361 Whirlpool Switch
20	Control, Elek
21	W10136850 Whirlpool Refrigerator Front Cover
21	W10171988 Whirlpool Refrigerator Front Cover
21	Bezel, Disp (Black)
21	Bezel, Disp (Mono Satina (SS))
22	2006254 Whirlpool Refrigerator Screw
23	Fascia, Disp (White)
23	Fascia, Disp (Black)
23	Fascia, Disp (Mono Satina)
23	Fascia, Disp (Mono Stainless)
24	2305571 Whirlpool Gasket Assembly
25	Gasket, Disp (2)
26	Support, Window
