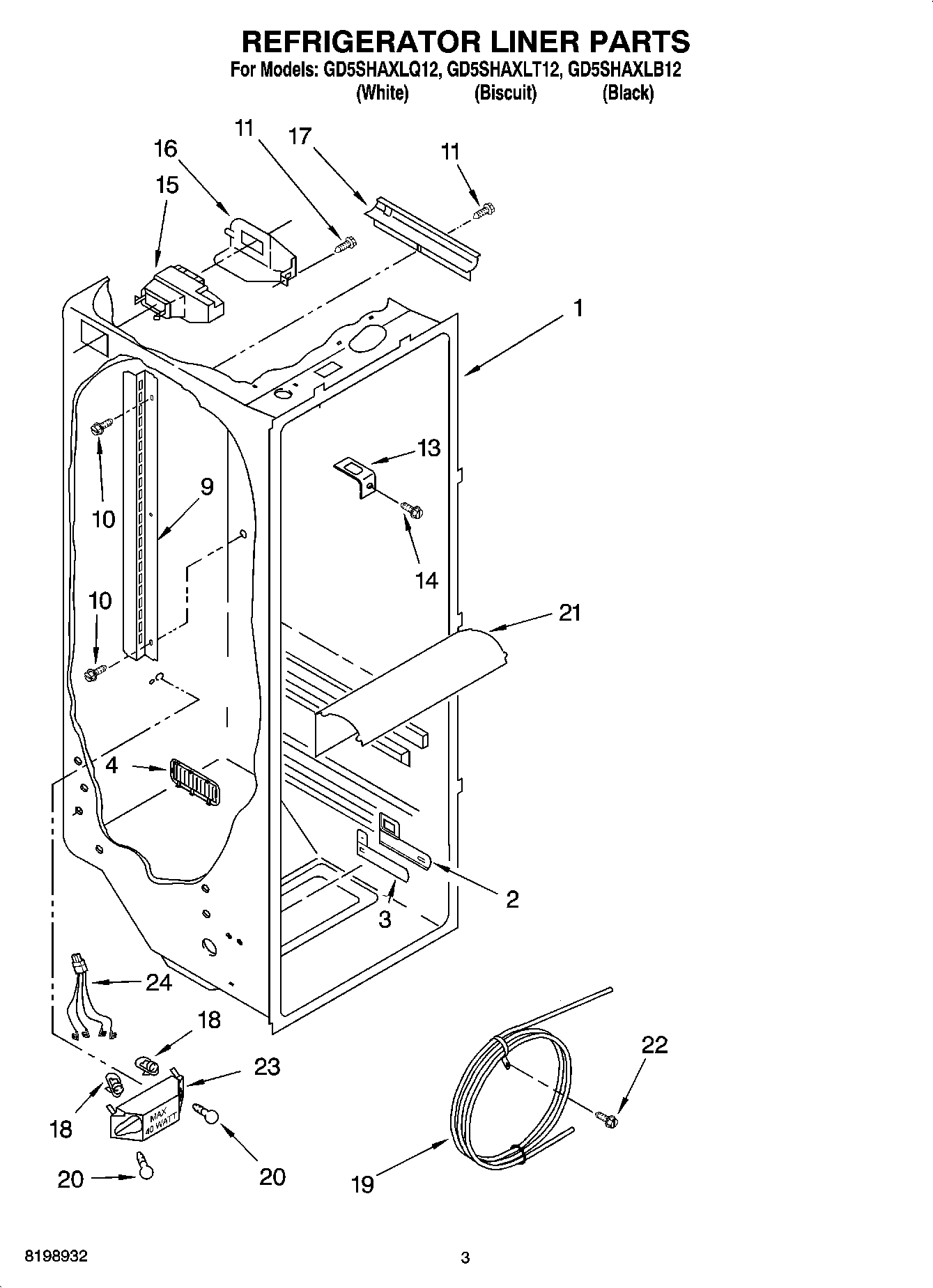

GD5SHAXLQ12 02 – REFRIGERATOR LINER PARTS

GD5SHAXLQ12 02 – REFRIGERATOR LINER PARTS

Written by

in

GD5SHAXLQ12 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
9Ladder, Shelf
10WP488729 Whirlpool Refrigerator Door Screw
11W10759522 Whirlpool Screw
13WP2256085 Whirlpool Refrigerator Retainer
14WP488488 Whirlpool Refrigerator Screw
15WPW10151375 Whirlpool Refrigerator Diffuser
162152019 Whirlpool Refrigerator Cover
172150331 Whirlpool Refrigerator Wire Cover
184387478 Whirlpool Refrigerator Light Socket
19WP2256126 Whirlpool Refrigerator Reservoir
20RANGE ONLY 40W 120V APPL BULB
21Light Lens
22Screw (2)
23Bracket, Dual Crisper Light
242311637 Whirlpool Refrigerator Wire Harness
