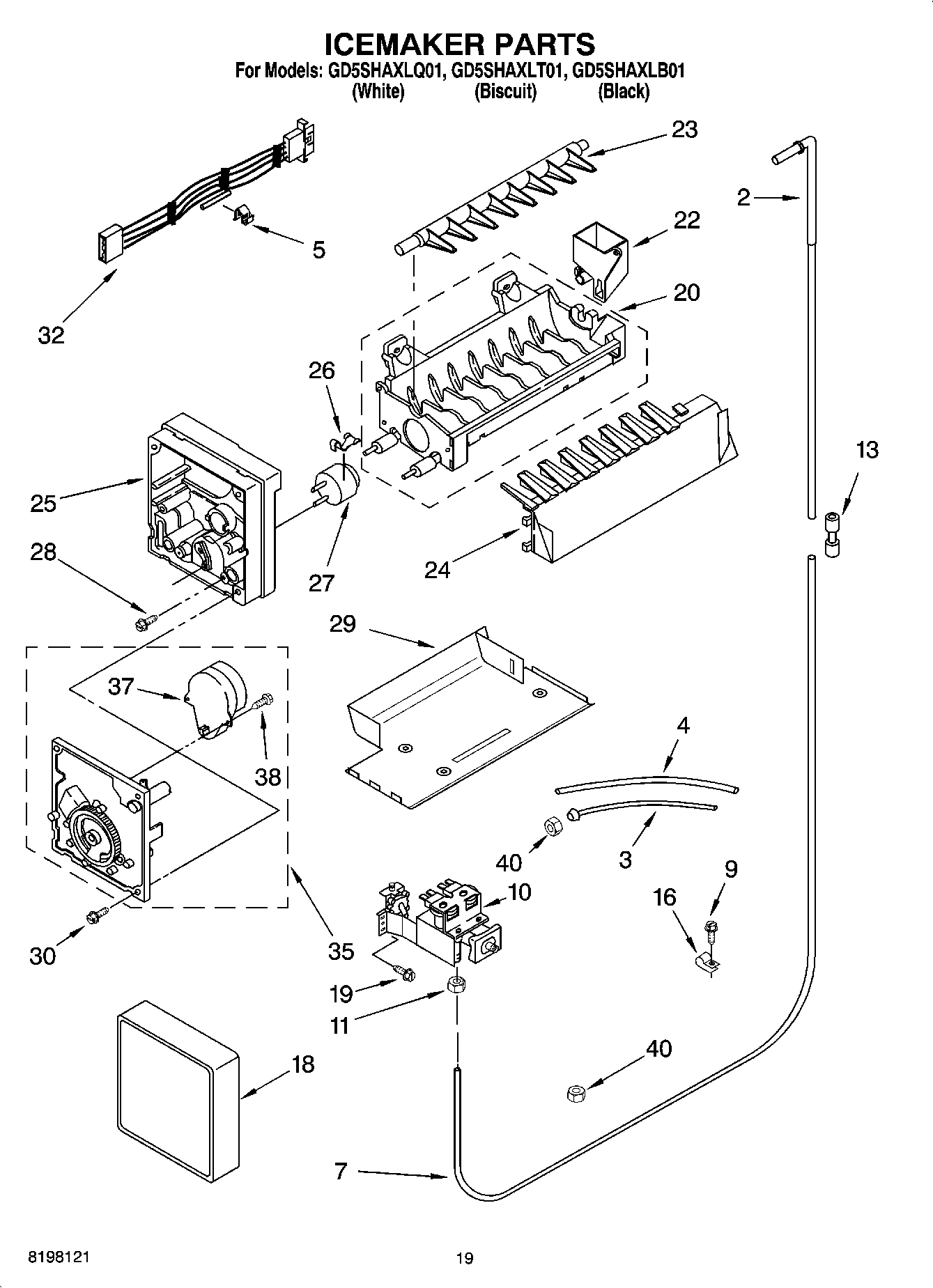

GD5SHAXLT01 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

GD5SHAXLT01 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Written by

in

GD5SHAXLT01 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
WPL ARI64124A5
CEMENT, ALUMILASTIC (1 1/4 OZ.)
TAPE, VINYL (3/4 X 108“)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL ARI64123A3
WP2258236 Whirlpool Ice Container and Auger Assembly
4210463RW Whirlpool Refrigerator Coil Brush
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
PAINT, BULK (1 QT. GRAPHITE)
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
8171357 Whirlpool Spray Nozzle
WPL 876029
606755 Whirlpool Refrigerator Bag
511873 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI64125A9
212643 Whirlpool Refrigerator Permagum Sealer
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
2WP2256096 Whirlpool Refrigerator Fitting
3W11496481 Whirlpool Refrigerator Water Tube
48201597 Whirlpool Inlet Water Fill Tube Kit Filter
5WP628379 Whirlpool Refrigerator Clip
7W10823511 Whirlpool Refrigerator Water Tube
9WP489478 Whirlpool Refrigerator Screw
10W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
11WP627018 Whirlpool Refrigerator Nut
13WP2198677 Whirlpool Refrigerator Connector
16WP488366 Whirlpool Refrigerator Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24W10297244 Whirlpool Refrigerator Arm Strip
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
29WP2212322 Whirlpool Refrigerator Bracket
30WP681249 Whirlpool Screw Assembly
32WP2187467 Whirlpool Refrigerator Wire Harness
358201515 Whirlpool Refrigerator Motor and Gear Module Kit
37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38489136 Whirlpool Refrigerator Screw
40Nut, Compression
