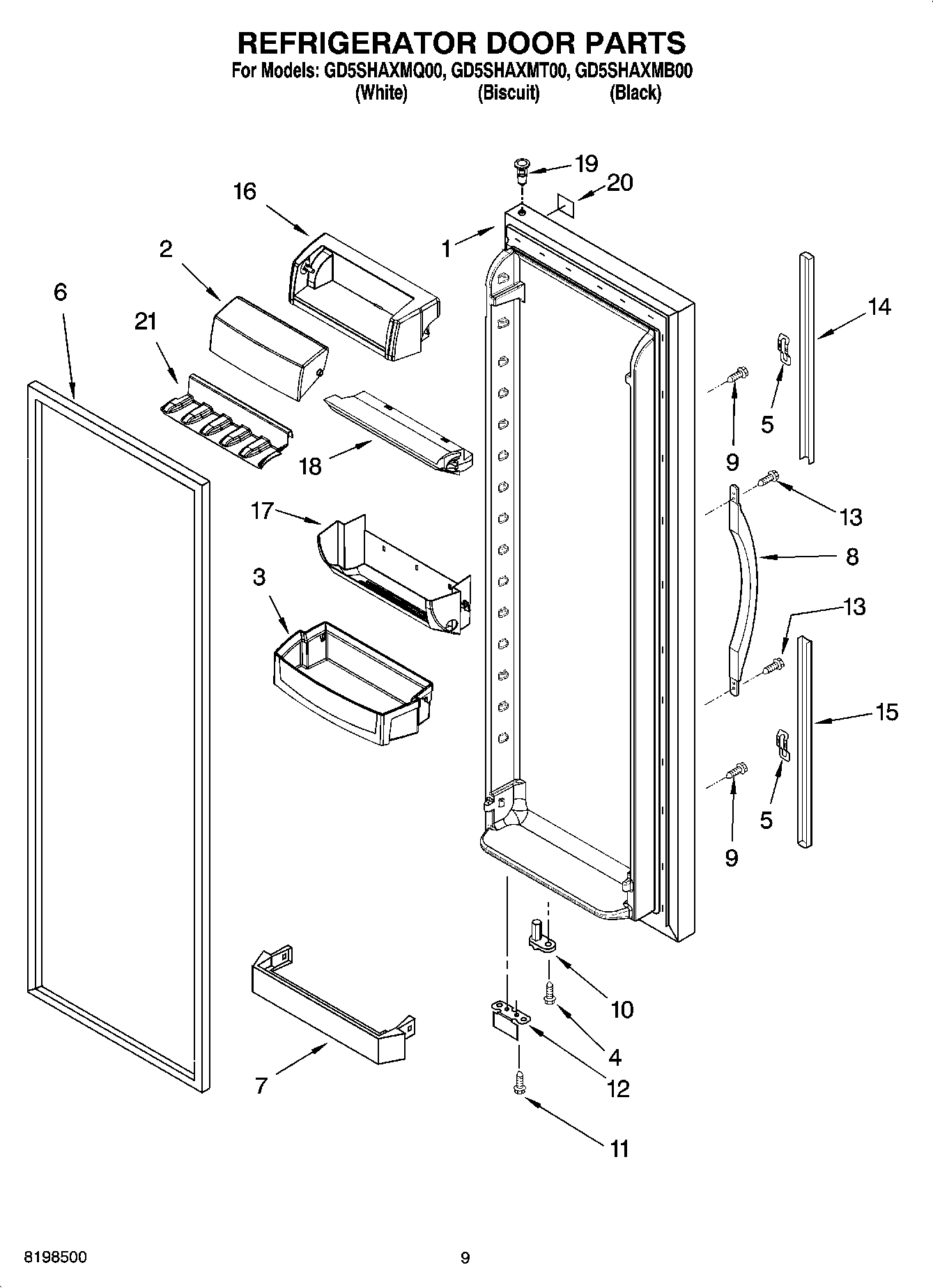

GD5SHAXMB00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Biscuit)
1	Refrigerator Door (Includes Item 6) (Black)
2	Dairy Door
3	Door Bin (3)
4	WP3400012 Whirlpool Refrigerator Screw
5	WP2195327 Whirlpool Refrigerator Clip
6	2159083 Whirlpool Gasket Door
6	2159075 Whirlpool Door Gasket Seal
7	WP2318736 Whirlpool Refrigerator Door Trim
8	WP2186649B Whirlpool Refrigerator Handle
8	Handle, Center (White)
8	Handle, Center (Biscuit)
9	WP3400852 Whirlpool Refrigerator Screw
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	WP2206629B Whirlpool Refrigerator Bracket
13	WP489491 Whirlpool Refrigerator Screw
14	Extension, Top (Biscuit)
14	Extension, Top (Black)
14	WP2194973W Whirlpool Door Trim
15	Extension, Bottom (Biscuit)
15	Extension, Bottom (White)
15	WP2194969B Whirlpool Refrigerator Handle Trim
16	Door Compartment
17	Frame, Can Rack
18	Air Diffuser Asm
19	WP2182181 Whirlpool Refrigerator Thimble
20	Nameplate
21	Floor, Can Rack
