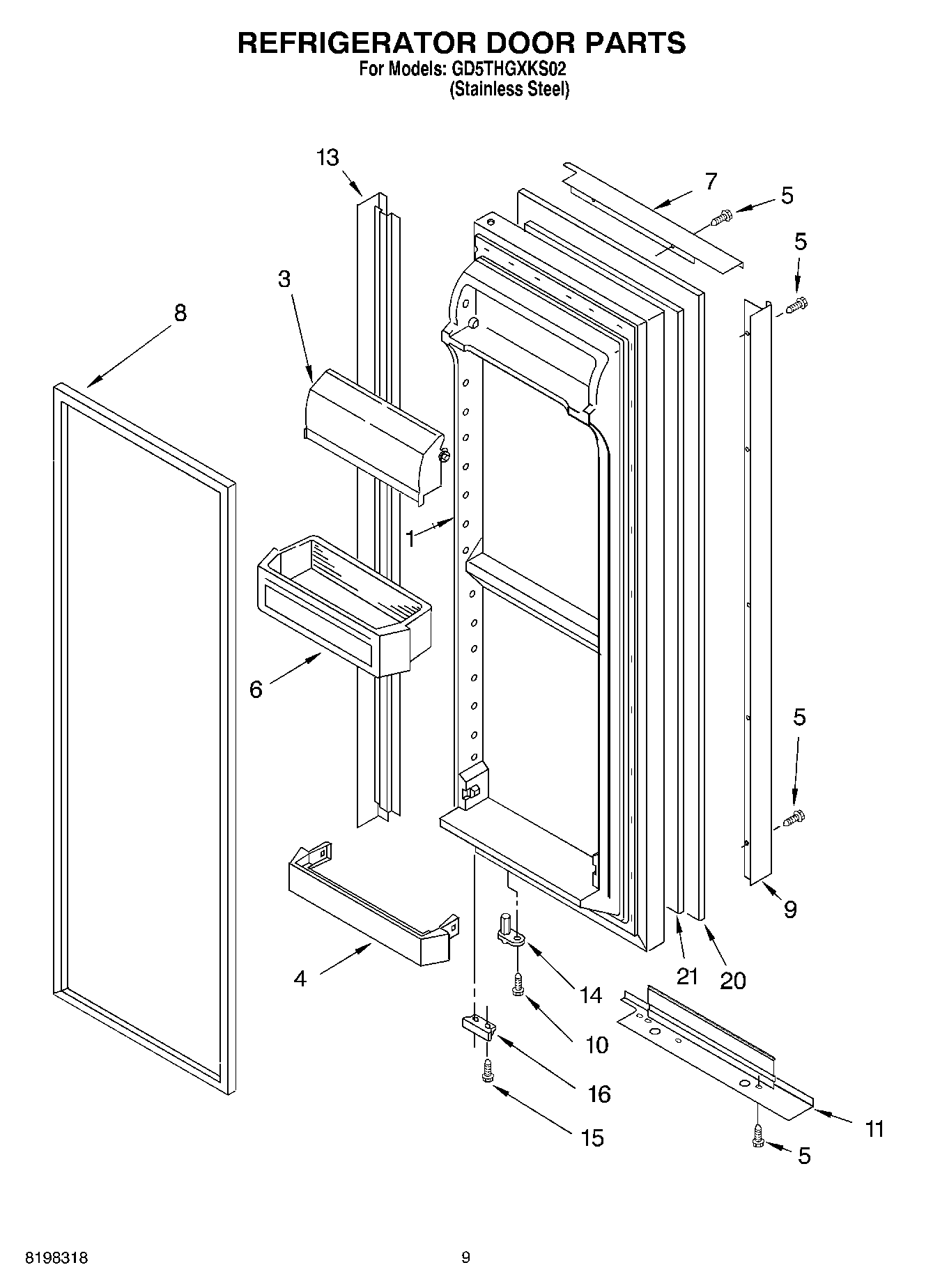

GD5THGXKS02 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Black)
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	Screw
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	Trim, Door Top (Stainless Steel)
8	2159083 Whirlpool Gasket Door
9	Handle (Stainless Steel)
10	WP3400012 Whirlpool Refrigerator Screw
11	Trim, Door Bottom (Stainless Steel)
13	Trim, Hinge Side (Stainless Steel)
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Black)
20	Panel, Door (Stainless Steel)
21	Filler Board
