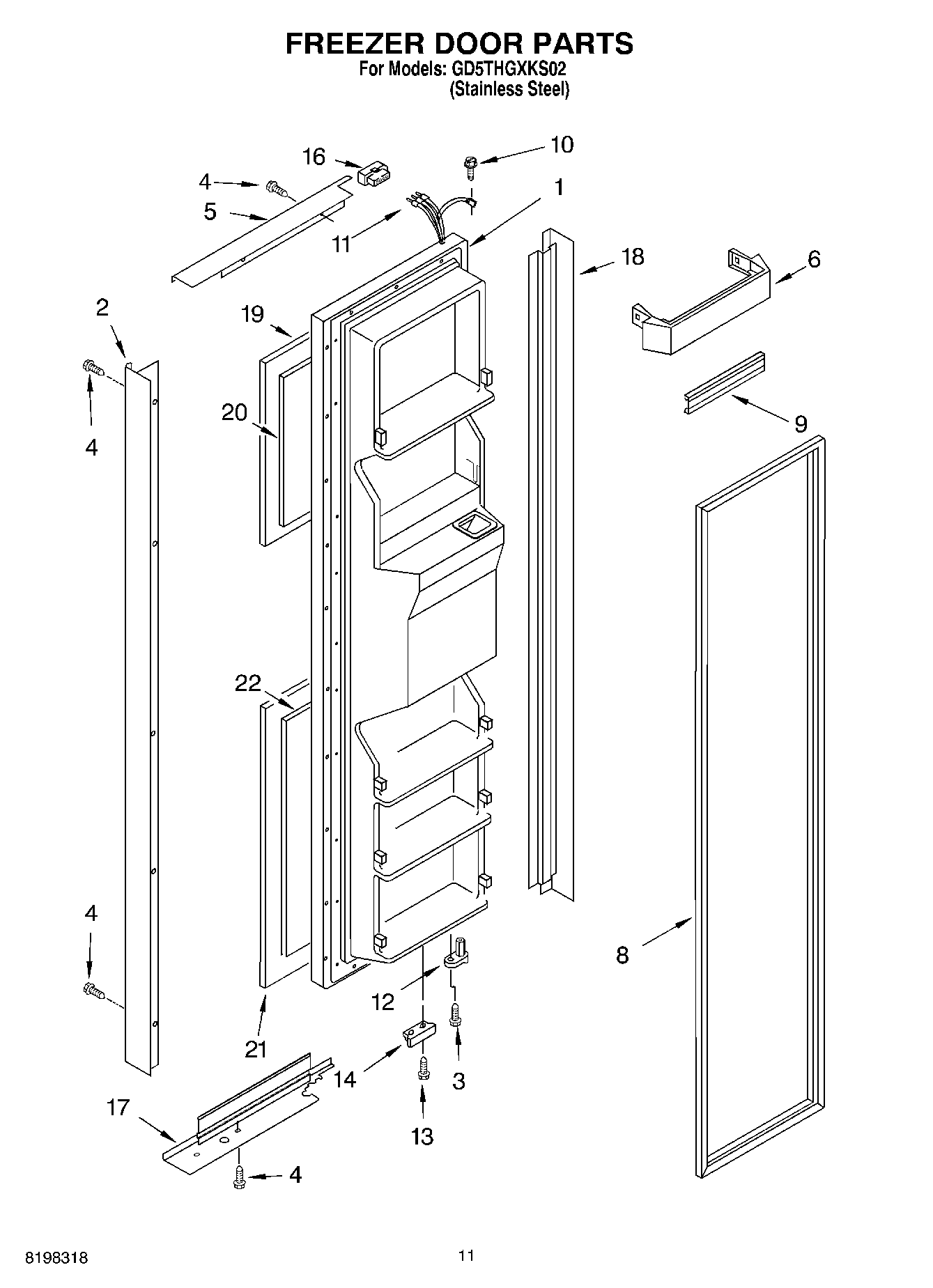

GD5THGXKS02 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black)
2	Handle (Stainless Steel)
3	WP3400012 Whirlpool Refrigerator Screw
4	Screw
5	Trim, Door Top (Stainless Steel)
6	WP2171157 Whirlpool Shelf Trim
8	2159082 Whirlpool Freezer Door Gasket Black
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	2311641 Whirlpool Refrigerator Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
16	WP2154473 Whirlpool Refrigerator Connector
17	Trim, Door Bottom (Stainless Steel)
18	Trim, Hinge Side (Stainless Steel)
19	Panel, Door Upper (Stainless Steel)
20	Filler, Board Upper
21	Panel, Door Lower (Stainless Steel)
22	Filler, Board Lower
