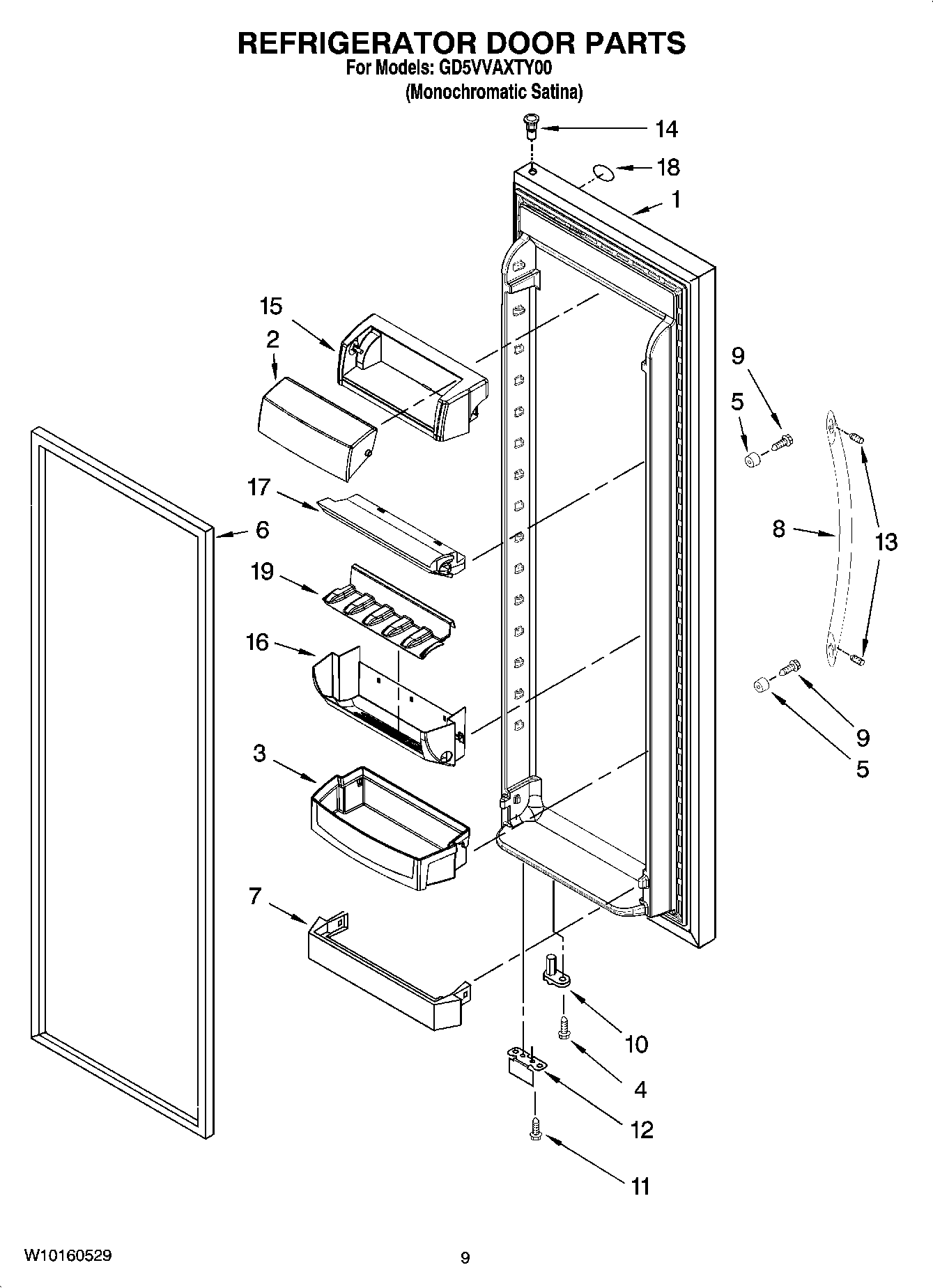

GD5VVAXTY00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Mono Satina)
2	Dairy Door
3	Door Bin (3)
4	WP3400012 Whirlpool Refrigerator Screw
5	WPW10170540 Whirlpool Screw
6	2159075 Whirlpool Door Gasket Seal
7	WP2318736 Whirlpool Refrigerator Door Trim
8	Handle (Stainless)
9	WP488163 Whirlpool Refrigerator Screw
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	WP2206629B Whirlpool Refrigerator Bracket
13	SCREW
14	Thimble, Top (For Stainless Steel Models)
15	Door Compartment
16	Frame, Can Rack
17	Air Diffuser Asm
18	Nameplate
19	Floor, Can Rack
