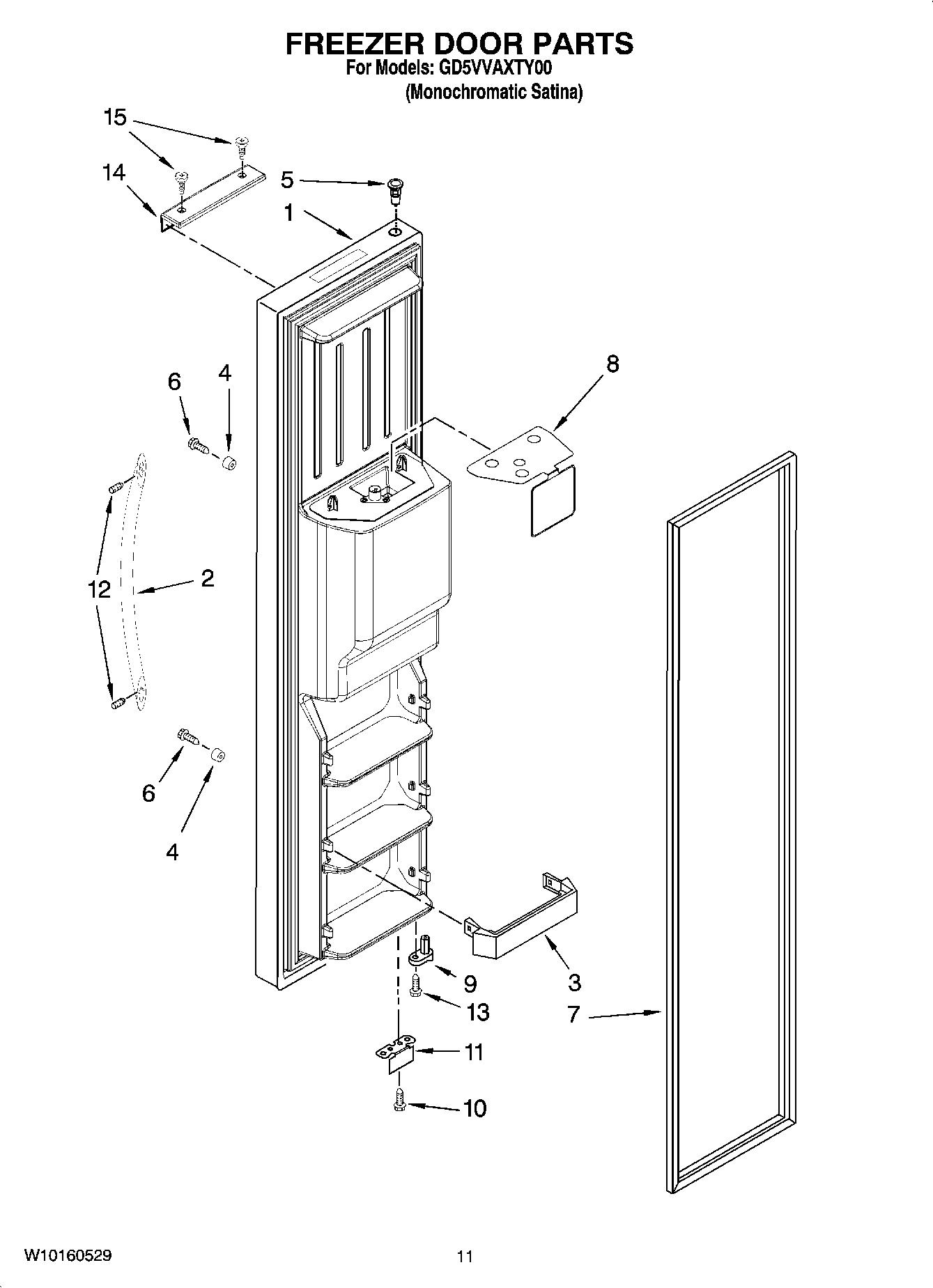

GD5VVAXTY00 07 – FREEZER DOOR PARTS

Products

Position	Product
	Following Parts Not Illustrated
	Tube, Water Dispenser
	Wire Assembly, Freezer Door
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Mono Satina)
2	Handle (Stainless)
3	WP2171157 Whirlpool Shelf Trim
4	WPW10170540 Whirlpool Screw
5	Thimble, Top (For Stainless Steel Models)
6	WP488163 Whirlpool Refrigerator Screw
7	2159074 Whirlpool Door Gasket Seal
8	Safety Barrier
9	WP2182179 Whirlpool Cam Closer
10	WP489483 Whirlpool Screw
11	2323534 Whirlpool Refrigerator Bracket
12	SCREW
13	WP3400012 Whirlpool Refrigerator Screw
14	Cover, Connector
15	Screw
