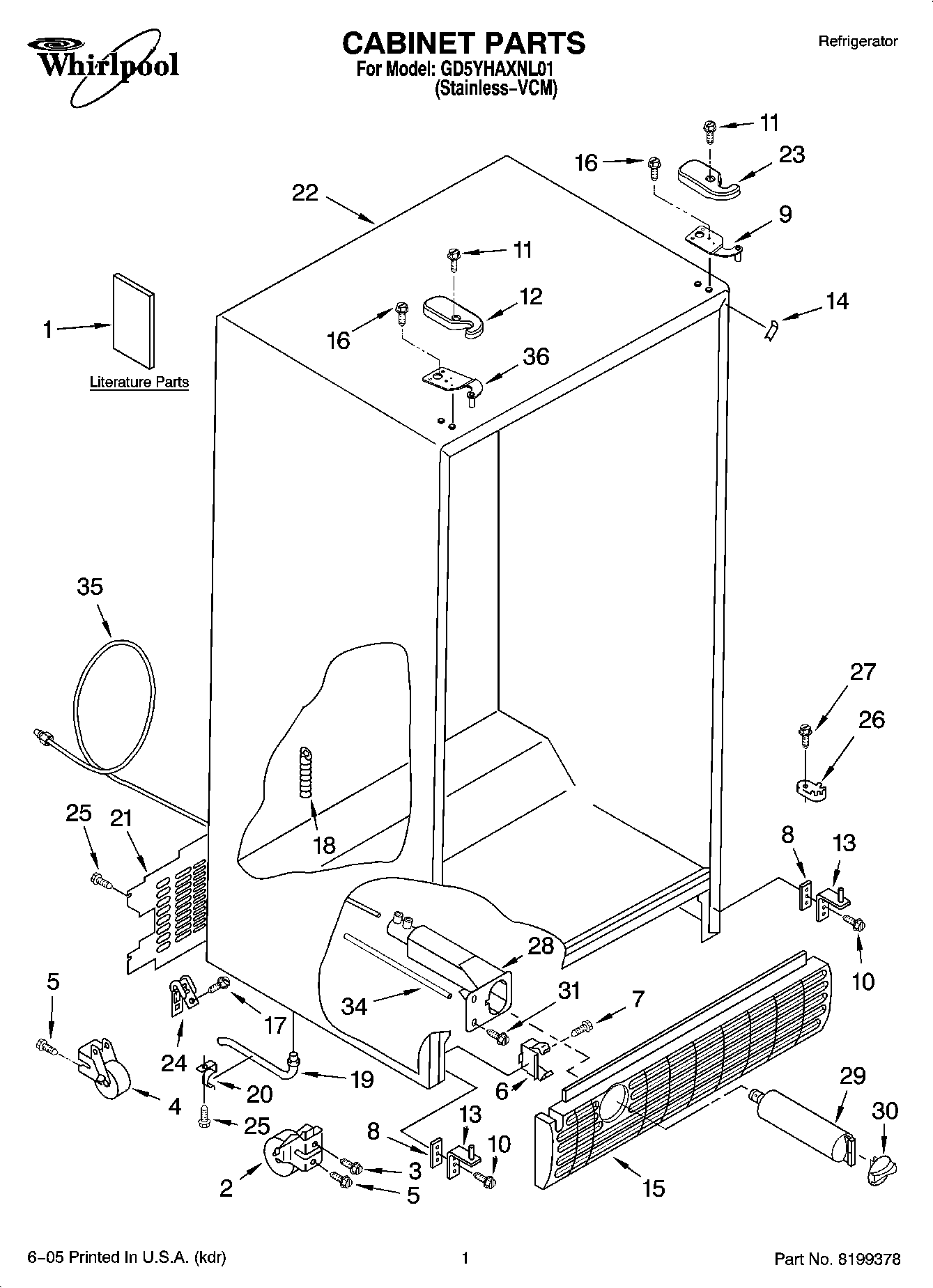

GD5YHAXNL01 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, ICEMAKER
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Guide
1	Modular Icemaker Service Sheet
1	Owner`s Manual
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WP489497 Whirlpool Screw
11	WP8281227 Whirlpool Screw
12	WP2203407B Whirlpool Refrigerator Cover
13	8201707 Whirlpool Door Hinge
14	Filler, Wrapper (Black)
15	W10803964 Whirlpool Grille Assembly
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	WP2188755 Whirlpool Rear Panel
22	Cabinet (Not A Serviceable Part)
23	WP2203408B Whirlpool Refrigerator Cover
24	549193 Whirlpool Refrigerator Power Clamp
26	WPW10329686 Whirlpool Door Cam Black
27	WP489483 Whirlpool Screw
28	WP2186443 Whirlpool Water Filter Housing
29	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
30	WP2186494B Whirlpool Refrigerator Filter Cap
31	WP489500 Whirlpool Refrigerator Screw
34	WPW10350006 Whirlpool Refrigerator Water Tube
35	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
36	WP2203770 Whirlpool Refrigerator Door Hinge
