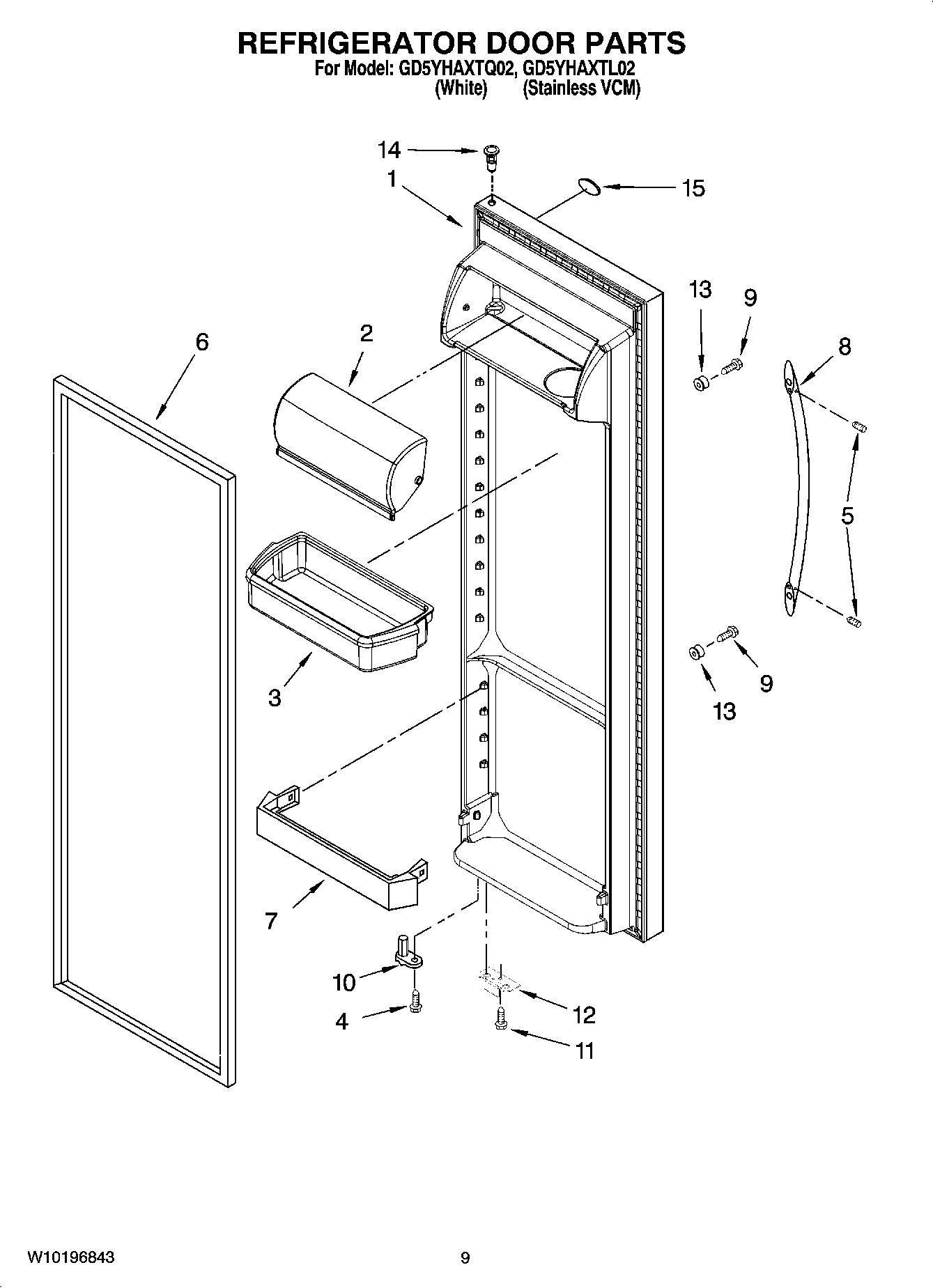

GD5YHAXTL02 06 – REFRIGERATOR DOOR PARTS

GD5YHAXTL02 06 – REFRIGERATOR DOOR PARTS

Written by

in

GD5YHAXTL02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Stainless-VCM)
1Refrigerator Door (Includes Item 6) (White)
2WP2256101 Whirlpool Dairy Door
3Door Bin (3)
4WP3400012 Whirlpool Refrigerator Screw
5SCREW
62159083 Whirlpool Gasket Door
62159075 Whirlpool Door Gasket Seal
7WP2156022 Whirlpool Refrigerator Door Trim
8WP2254600W Whirlpool Refrigerator Handle
8Handle (Stainless)
9WP488163 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12WP2206629B Whirlpool Refrigerator Bracket
13WPW10170540 Whirlpool Screw
14WP2182181 Whirlpool Refrigerator Thimble
15Nameplate
