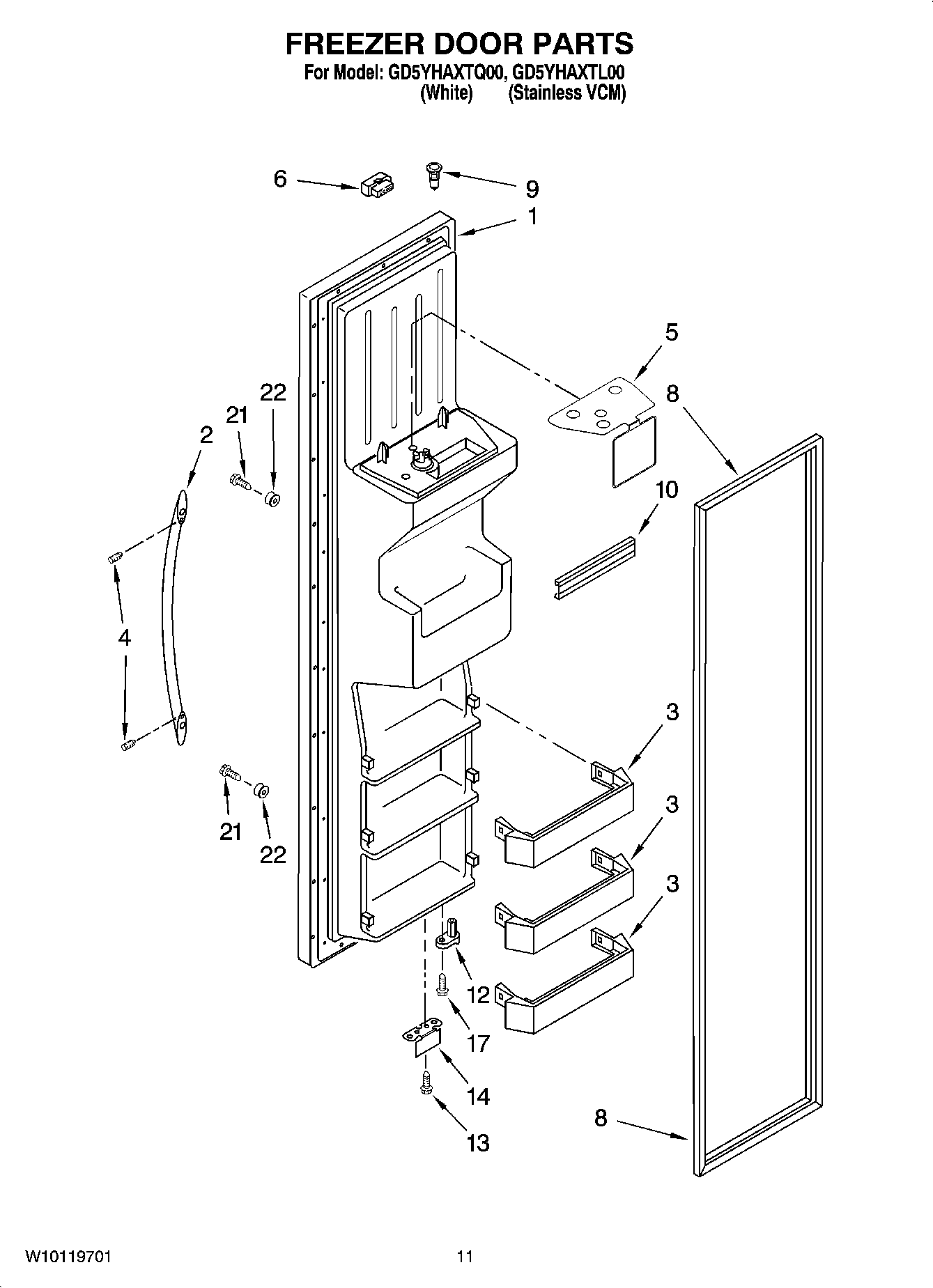

GD5YHAXTQ00 07 – FREEZER DOOR PARTS

GD5YHAXTQ00 07 – FREEZER DOOR PARTS

Written by

in

GD5YHAXTQ00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless-VCM)
2WP2254600W Whirlpool Refrigerator Handle
2WP2254600B Whirlpool Refrigerator Handle
3WP2171157 Whirlpool Shelf Trim
4SCREW
5Safety Barrier
6WP2154473 Whirlpool Refrigerator Connector
82159082 Whirlpool Freezer Door Gasket Black
82159074 Whirlpool Door Gasket Seal
9WP2182181 Whirlpool Refrigerator Thimble
10WPW10307490 Whirlpool Door Trim Assembly
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
17WP3400012 Whirlpool Refrigerator Screw
21WP488163 Whirlpool Refrigerator Screw
22WPW10170540 Whirlpool Screw
