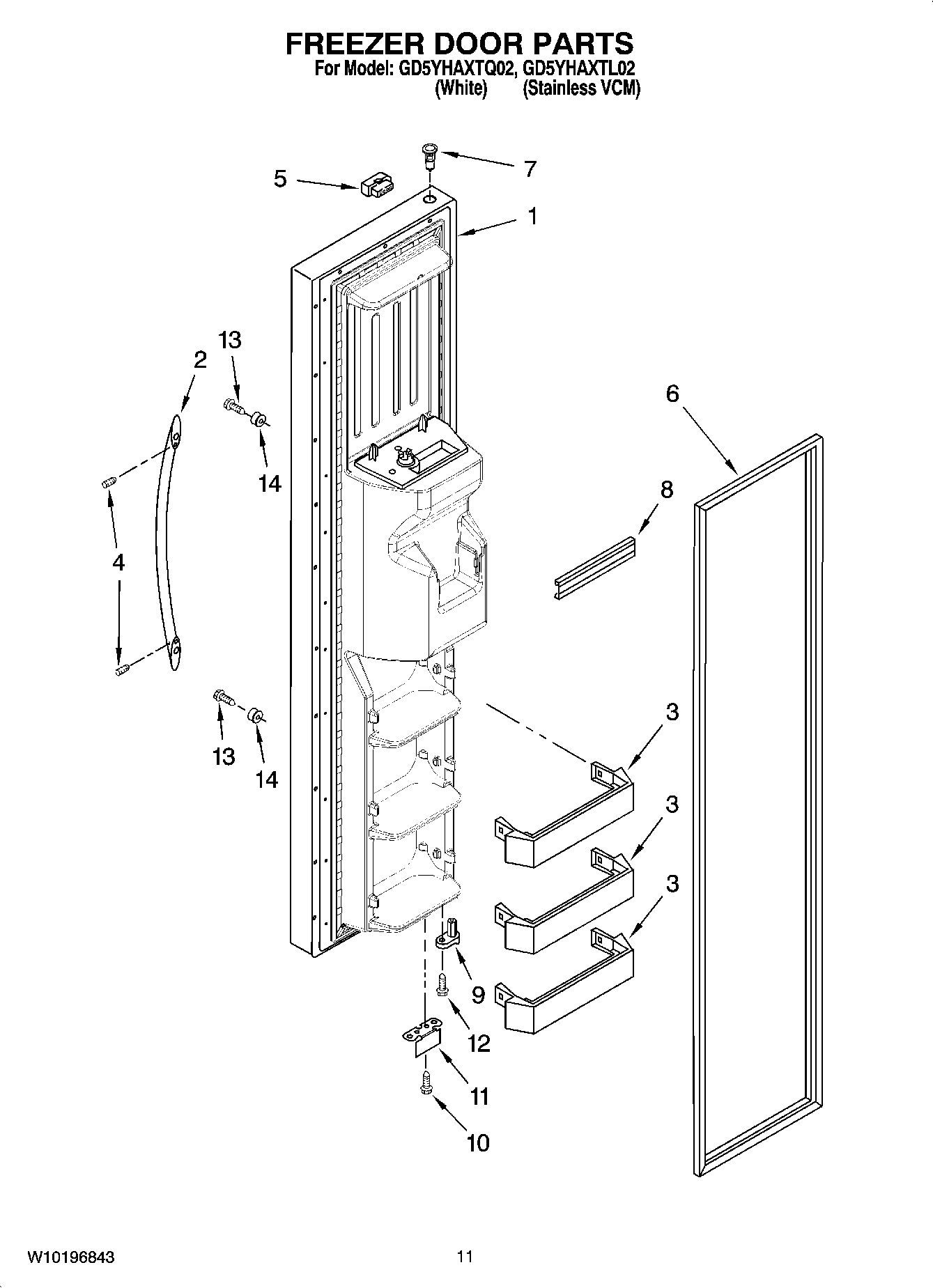

GD5YHAXTQ02 07 – FREEZER DOOR PARTS

GD5YHAXTQ02 07 – FREEZER DOOR PARTS

Written by

in

GD5YHAXTQ02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless-VCM)
2Handle (Stainless)
2WP2254600W Whirlpool Refrigerator Handle
3WP2171157 Whirlpool Shelf Trim
4SCREW
5Connector
62159074 Whirlpool Door Gasket Seal
62159082 Whirlpool Freezer Door Gasket Black
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10307490 Whirlpool Door Trim Assembly
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11WP2206629B Whirlpool Refrigerator Bracket
12WP3400012 Whirlpool Refrigerator Screw
13WP488163 Whirlpool Refrigerator Screw
14WPW10170540 Whirlpool Screw
