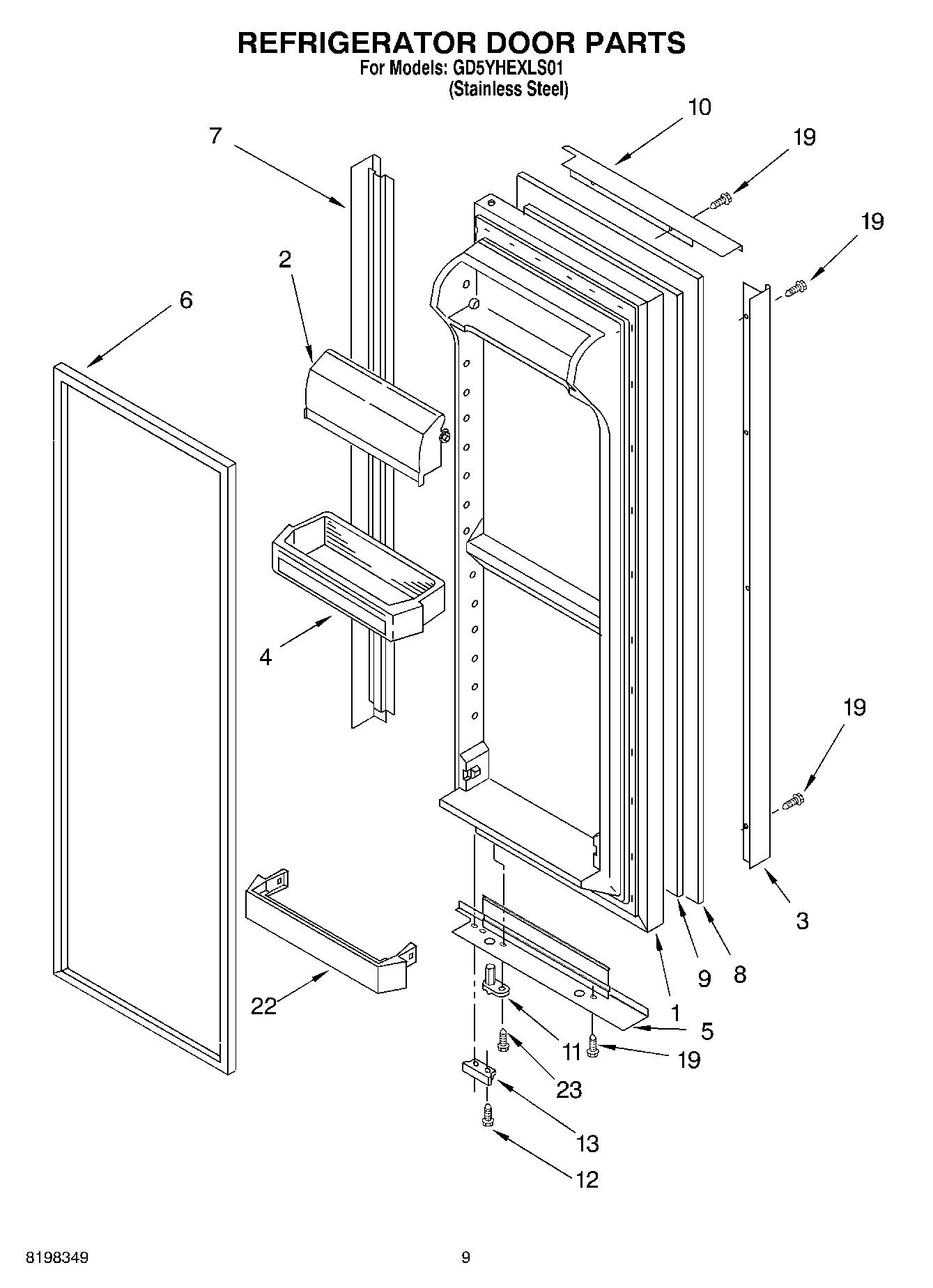

GD5YHEXLS01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Black)
2	WP2256101 Whirlpool Dairy Door
3	Handle (Stainless Steel)
4	WP2203828 Whirlpool Door Shelf Bin
5	Trim, Door Bottom (Stainless Steel)
6	2159083 Whirlpool Gasket Door
7	Trim, Hinge Side (Stainless Steel)
8	Panel, Door (Stainless Steel)
9	Filler Board
10	Trim, Door Top (Stainless Steel)
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop (Black)
19	Screw
22	WP2156022 Whirlpool Refrigerator Door Trim
23	WP3400012 Whirlpool Refrigerator Screw
