GDB421RHR0 03 – DOOR

GDB421RHR0 03 – DOOR

Written by

in

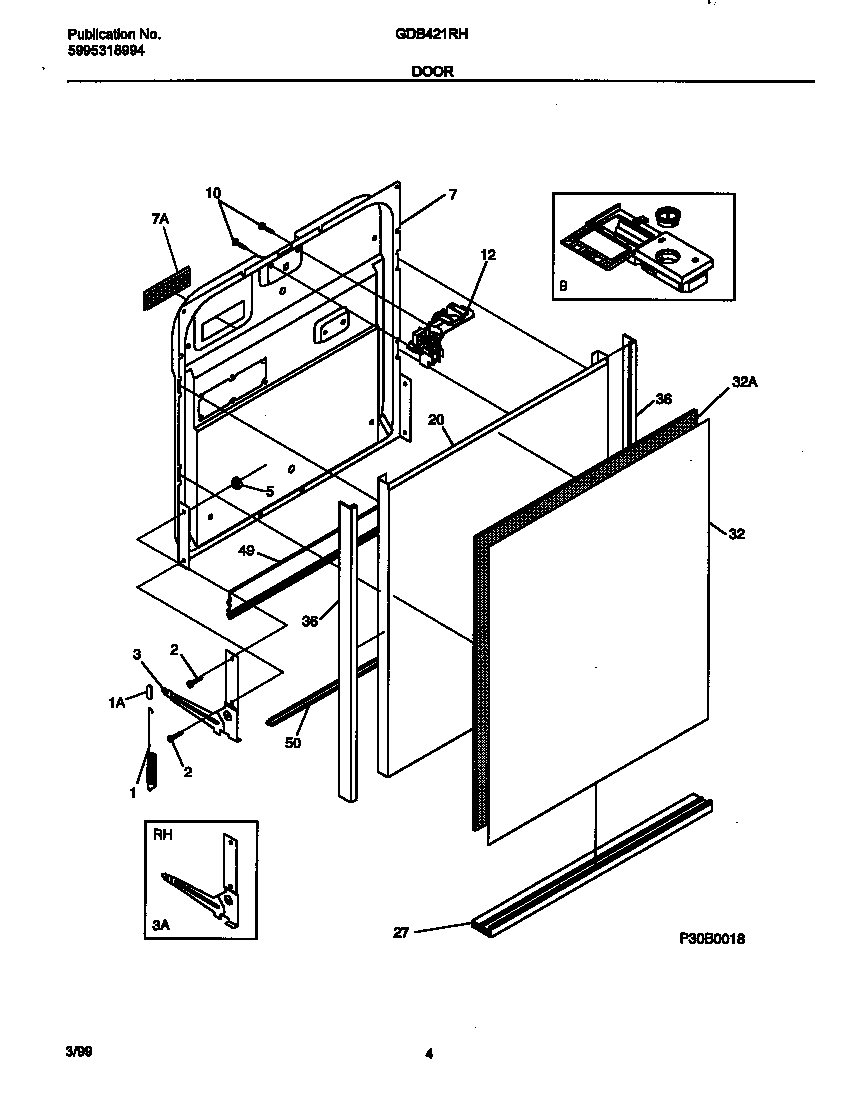

GDB421RHR0 03 – DOOR

Products

PositionProduct
*07726PIN-ARM (NOT ILLUSTRATED)
*07727WCI 154200601
*07728SCREW-8 X 5/8“ (2)
1154430501 Frigidaire Dishwasher Door Spring
1154325201 Frigidaire Linkage Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154226601
7WCI 154299002
9154574401 Frigidaire Dishwasher Dispenser
10SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154327701
27WCI 154309504
32WCI 154229001
32WCI 5303943148
36WCI 154309304
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
