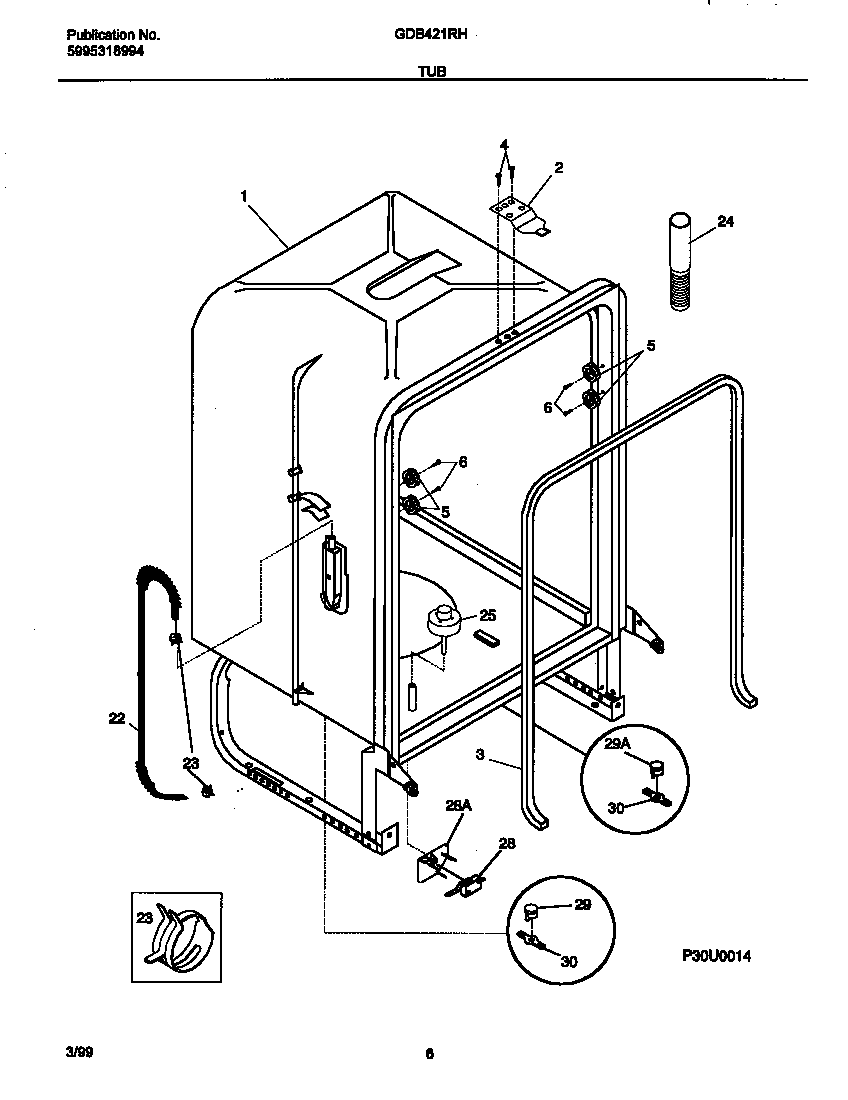

GDB421RHR0 04 – TUB

GDB421RHR0 04 – TUB

Written by

in

GDB421RHR0 04 – TUB

Products

PositionProduct
*07730154297701 Frigidaire Dishwasher Screw
*07729154200701 Frigidaire Dishwasher Screw
*07732154641601 Frigidaire Dishwasher Insulation
*07731808690701 Frigidaire Dishwasher Screw
1WCI 154209301
2154662601 Frigidaire Door Strike Latch
3154827601 Frigidaire Dishwasher Tub Gasket
4WCI 154200602
55304507405 Frigidaire Dishwasher Gray Tub Dishrack Roller
65303943103 Frigidaire Dishwasher P-1 Screw Kit (8 Each Wash/Screw)
225304523457 Frigidaire Inlet Hose
23CLAMP, HOSE
24154225602 Frigidaire Dishwasher Drain Hose, 10' Long
255304506520 Frigidaire Dishwasher Float Assembly
28WCI 154225501
28FLOAT SWITCH ASSY
29WCI 154227806
29154290204 Frigidaire Dishwasher Thermostat
30154241101 Frigidaire Dishwasher Retainer
