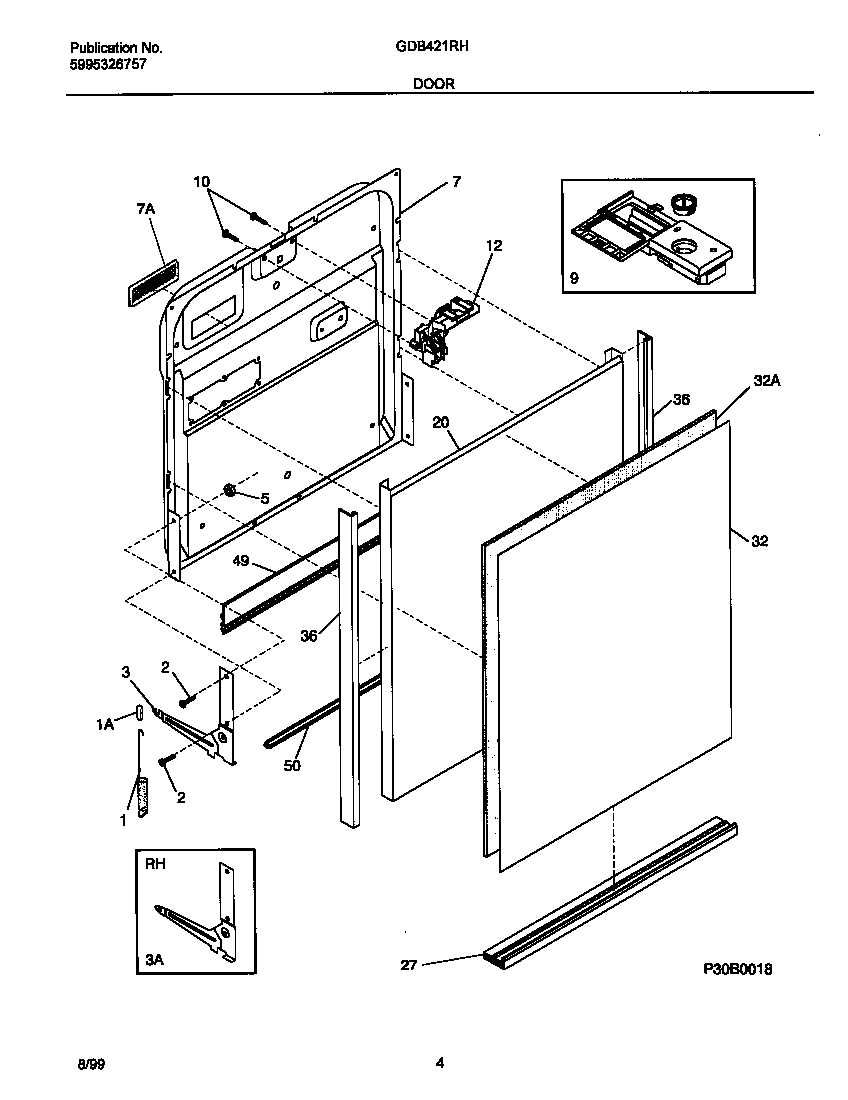

GDB421RHR1 03 – DOOR

Products

Position	Product
*36207	154294701 Frigidaire Dishwasher Screw
*36205	PIN-ARM (NOT ILLUSTRATED)
*36210	SCREW-8 X 5/8“ (2)
*36209	WCI 154227806
*36208	WCI 154200601
*36206	WCI 154320301
1	154430501 Frigidaire Dishwasher Door Spring
1	154325201 Frigidaire Linkage Spring
2	154093301 Frigidaire Dishwasher ARM Assembly Screw
3	5304409912 Frigidaire Dishwasher P-1 Right Hinge
5	5303013272 Frigidaire Oven Nut
7	WCI 154226601
7	WCI 154299002
9	154574401 Frigidaire Dishwasher Dispenser
10	SCREW-LATCH MTG, (2) (NOT ILLUSTRATED)
12	5304442175 Frigidaire Black Door Latch Assembly
20	WCI 154327701
27	WCI 154309504
32	WCI 154229001
32	WCI 5303943148
36	WCI 154309304
49	809006501 Frigidaire Bottom Seal/Gasket Door
50	WCI 154211401
