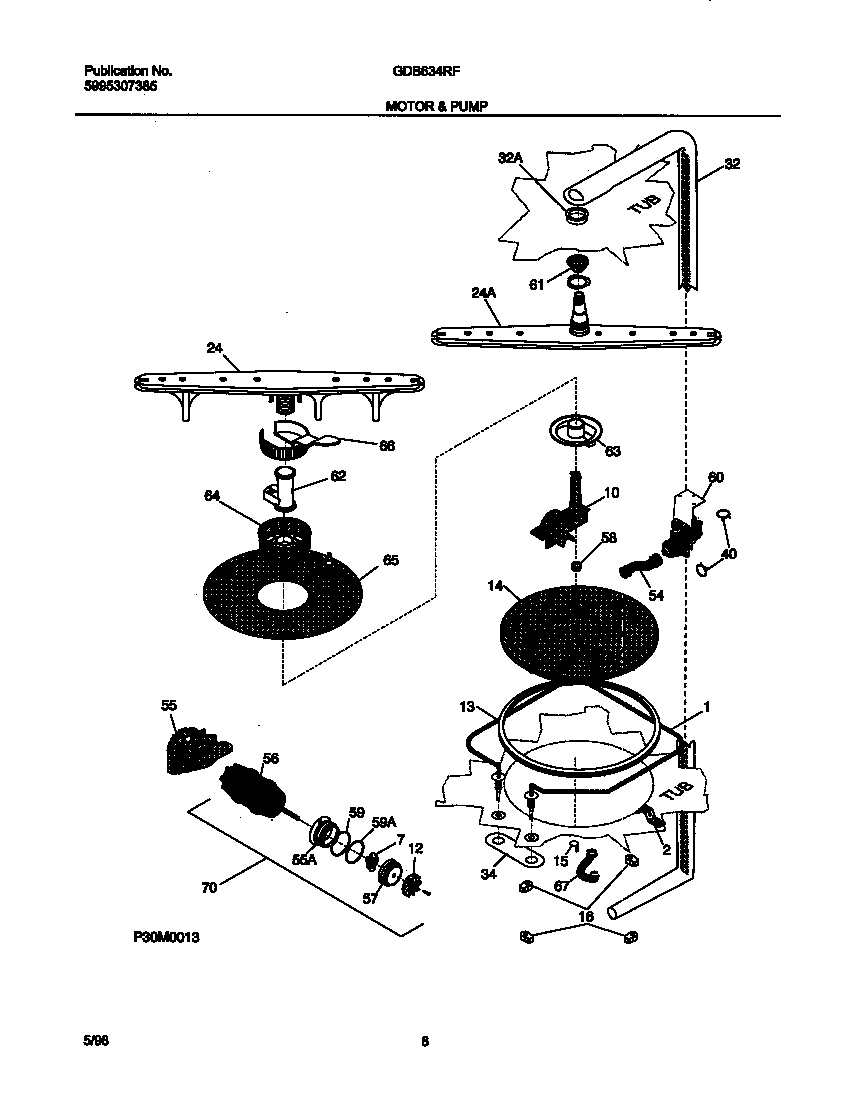

GDB634RFR2 05 – MOTOR & PUMP

GDB634RFR2 05 – MOTOR & PUMP

Written by

in

GDB634RFR2 05 – MOTOR & PUMP

Products

PositionProduct
*21944WCI 154247201
*21939BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*21938WCI 154246101
*21936SCREW, SS IMPELLER (NOT ILLUSTRATED)
*21934154106202 Frigidaire Dishwasher Heater Nut
*21935154289801 Frigidaire Dishwasher Shield
*21946154754901 Frigidaire Dishwasher Screw
*21940WCI 154227806
*21945WCI 154247401
*21947WCI 154329001
*21937WCI 154252001
*21942WCI 154200601
*21943CLAMP, HOSE
*21948WCI 5303316032
*21941154241101 Frigidaire Dishwasher Retainer
1154665201 Frigidaire Dishwasher Heater
2WCI 154322501
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154335403
15WCI 154246701
16WCI 154246501
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
24154313601 Frigidaire Dishwasher Control Arm P1
32WCI 154251601
32WCI 154251701
34WCI 154064901
40A154611101 Frigidaire Dishwasher Clamp
40B154348401 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154246201
55WCI 154245601
56WCI 154245706
57WCI 154246001
58154246402 Frigidaire Dishwasher P-1 BALL
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60WCI 154247502
61WCI 154250201
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
655304506525 Frigidaire Dishwasher Filter Assembly
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
70MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
