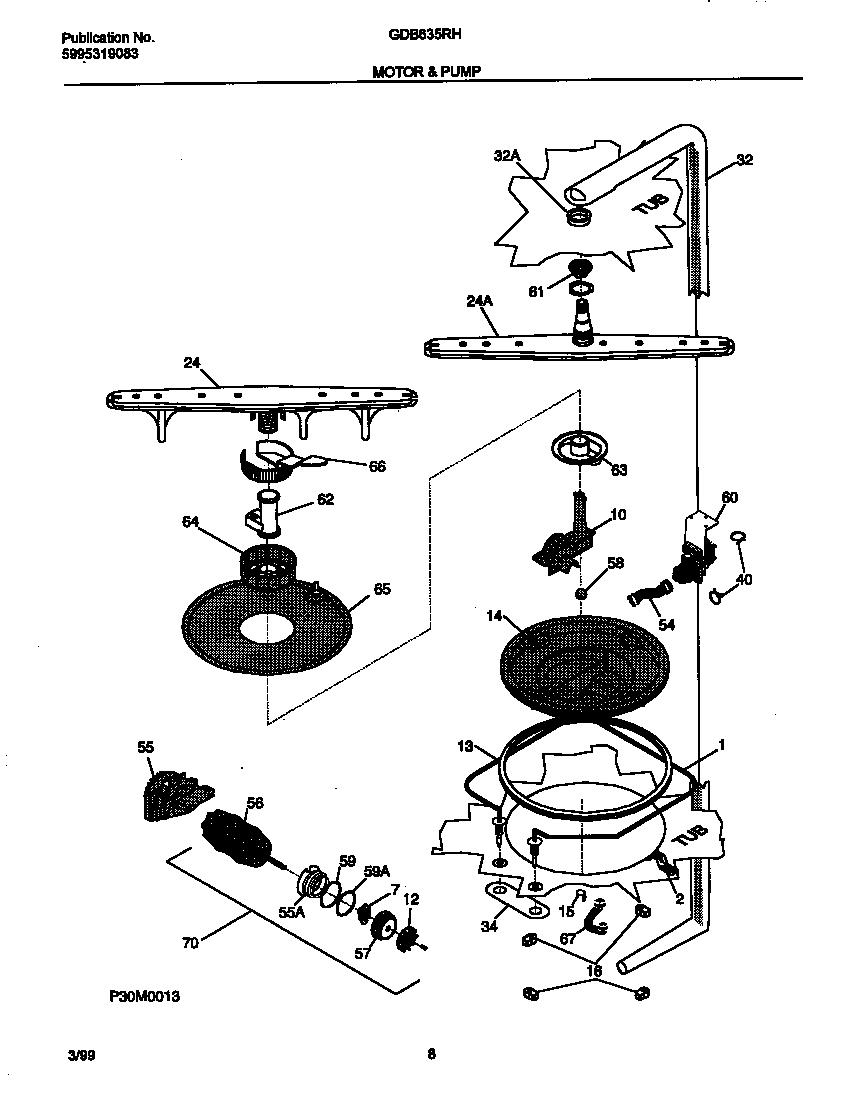

GDB635RHR0 05 – MOTOR

GDB635RHR0 05 – MOTOR

Written by

in

GDB635RHR0 05 – MOTOR

Products

PositionProduct
*64382WCI 154348501
*64384WCI 154246101
*64390WCI 154338601
*64378SCREW, SS IMPELLER (NOT ILLUSTRATED)
*64376154106202 Frigidaire Dishwasher Heater Nut
*64377154289801 Frigidaire Dishwasher Shield
*64389WCI 154247401
*64383154754901 Frigidaire Dishwasher Screw
*64392WCI 154227806
*64380154348401 Frigidaire Dishwasher Clamp
*64388WCI 154247201
*64385BRACKET-MOTOR, DRAIN (NOT ILLUSTRATED)
*64379WCI 154252001
*64386WCI 154200601
*64391WCI 5303316032
*64387CLAMP, HOSE
*64393154241101 Frigidaire Dishwasher Retainer
1154665201 Frigidaire Dishwasher Heater
2WCI 154322501
7WCI 154245901
10807145201 Frigidaire Dishwasher Cover-Volute
12WCI 154245801
13154246801 Frigidaire Dishwasher Primary Gasket
14WCI 154335403
15WCI 154246701
16154246502 Frigidaire Dishwasher Bracket
24154313601 Frigidaire Dishwasher Control Arm P1
245304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
32WCI 154251701
32WCI 154251601
34WCI 154064901
40154611101 Frigidaire Dishwasher Clamp
54154234401 Frigidaire Dishwasher Hose P-1
55WCI 154246201
55WCI 154325701
56WCI 154245706
57WCI 154246001
58154246402 Frigidaire Dishwasher P-1 BALL
59154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60WCI 154349501
61WCI 154250201
625304518968 Frigidaire Lower Spray Arm Support
635304506533 Frigidaire Dishwasher Filter Base
655304506525 Frigidaire Dishwasher Filter Assembly
66154252701 Frigidaire Dishwasher Filter Trap Assembly
67WCI 154246601
70MOTOR & PUMP ASSY,INCLUDES 7, 12 , 55A, 57, 59,,59A
