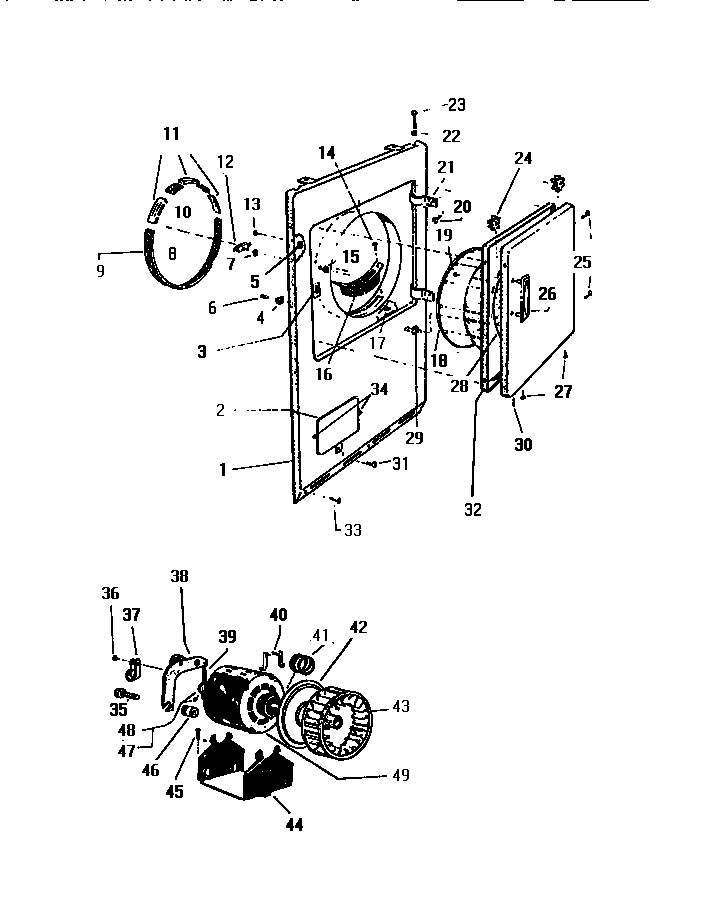

GDD15A1D4 03 – CABINET, TOP PANEL, DOOR BASE

Written by

Products

Position	Product
1	PANEL FRONT, 1-2 MODELS, ALMOND
2	WCI Q182711
12	DOOR SWITCH, WEAT
12	START SWITCH
24	WCI Q631591
24	WCI Q40120
30	PANEL OUTER DOOR, ALMD
31	WCI Q405802
32	PANEL INNER DOOR, ALMD
49E	START SWITCH FOR Q616391 EMER.
49D	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
49C	START SWITCH FOR Q616401 GE
49A	START SWITCH FOR Q615921 WW
