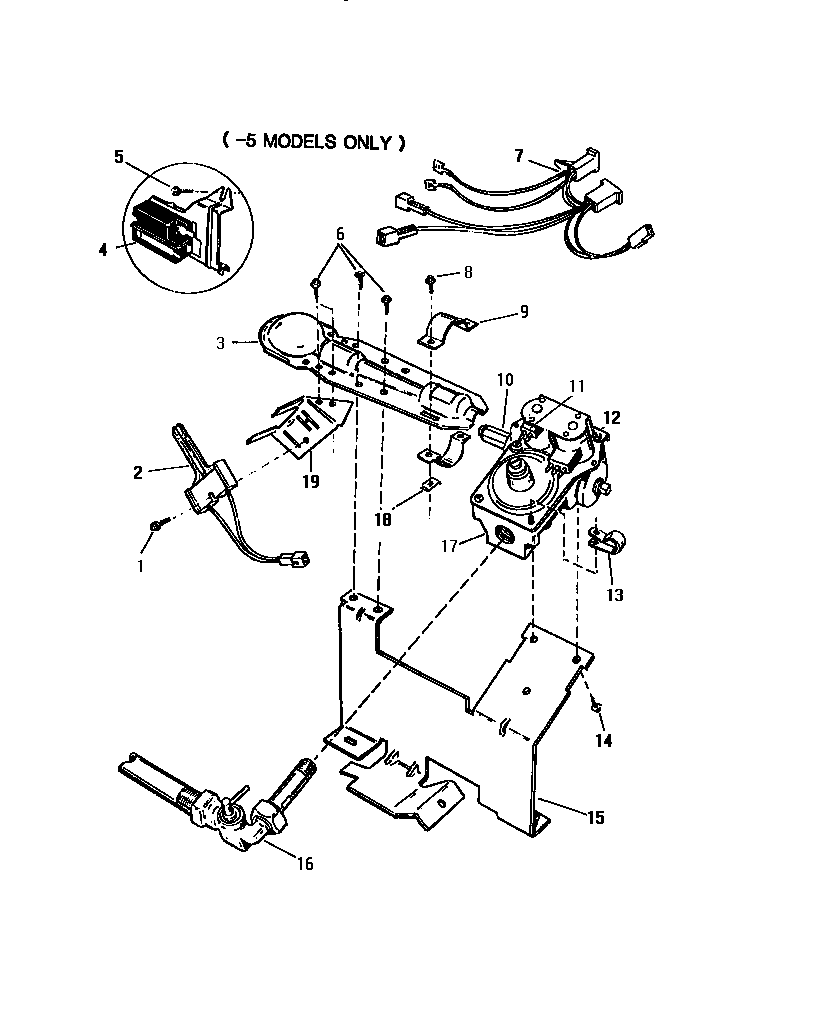

GDD15A1H4 06 – GAS VALVE ASSEMBLY

Products

Position	Product
1	WCI Q505556
2	IGNITER
3	WCI Q125516
4	SENSOR
5	SCREW (4)
6	WCI Q414001
7	WCI Q631781
8	SCREW (4)
9	WCI Q116032
10	WCI Q500773
10	ORIFICES, LP GAS KIT
10	ORIFICES, NATURAL GAS
11	WCI Q622602
12	WCI Q622601
13	WCI Q622604
14	WCI Q505564
15	WCI Q631531
16	WCI Q600621
17	WCI Q630822
18	SPEEDNUT (2)
19	BRACKET IGNITER
