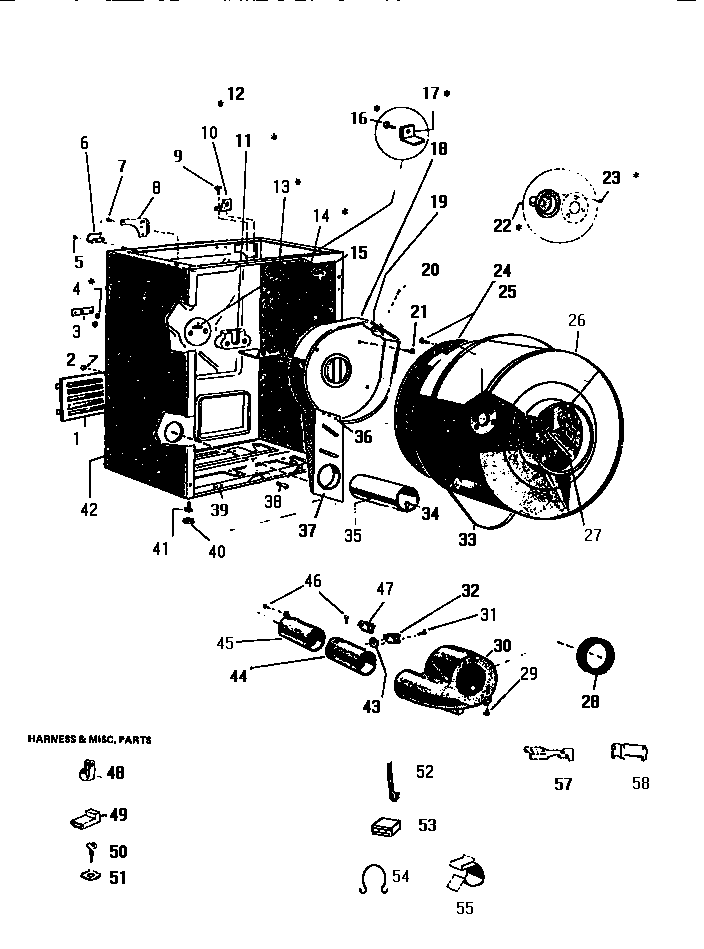

GDD15A1W4 04 – DRUM

GDD15A1W4 04 – DRUM

Written by

in

GDD15A1W4 04 – DRUM

Products

PositionProduct
*68127SEALING MASTER
*68123TOUCH-UP PAINT, 1 OUNCE, COFFEE
*68124WCI Q171157
*68128WCI 1443982
*68121TOUCH-UP PAINT, 1 OUNCE, ALMOND
*68125WCI Q49687
*68120WCI Q171781
*68122TOUCH UP PAINT, 1 OZ., AVOCADO
1WCI Q94811
3SPEED NUT STRIP
4BALL
6WCI Q155561
7WCI Q409702
8WCI Q133282
10WCI Q600105
11BEARING
12REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
13BRACKET
14SCREW
17BRACKET
18HEATER HOUSING
19THERMOSTAT, HI LIMIT
22SHAFT
23SCREW
24WCI Q165773
25SCREW (3)
26SPINNER, BASKET
27BWCI Q501592
27WCI Q615894
27AWCI Q615893
28WCI Q19462
29SCREW (4)
30WCI Q171281
31SCREW
32THERMOSTAT, REGULAR HEAT
33WCI Q63807
34WCI Q505564
35TUBE, BURNER
37WCI Q116393
38WCI Q504281
39WCI Q502956
40WCI Q16971
41WCI Q198170
42BBODY, WHITE (AVAILABLE DURING PRODUCTION ONLY)
43WCI Q606131
44WCI Q603012
45WCI Q182901
46SCREW (4)
48CLAMP
49RECEPTACLE
50WCI Q500665
51WCI Q500411
52CORD, SERVICE
53WCI Q63137
54WCI Q62196
55WCI Q502207
57ARECEPTACLE, STRAIGHT, 3/16“ BLADE TERMINAL
57BRECEPTACLE, STRAIGHT, 5/16“ BLADE TERMINAL
57RECEPTACLE, STRAIGHT, 1/4“ BLADE TERMINAL
58RECEPTACLE, FLAG, 1/4“ BLADE TERMINAL
