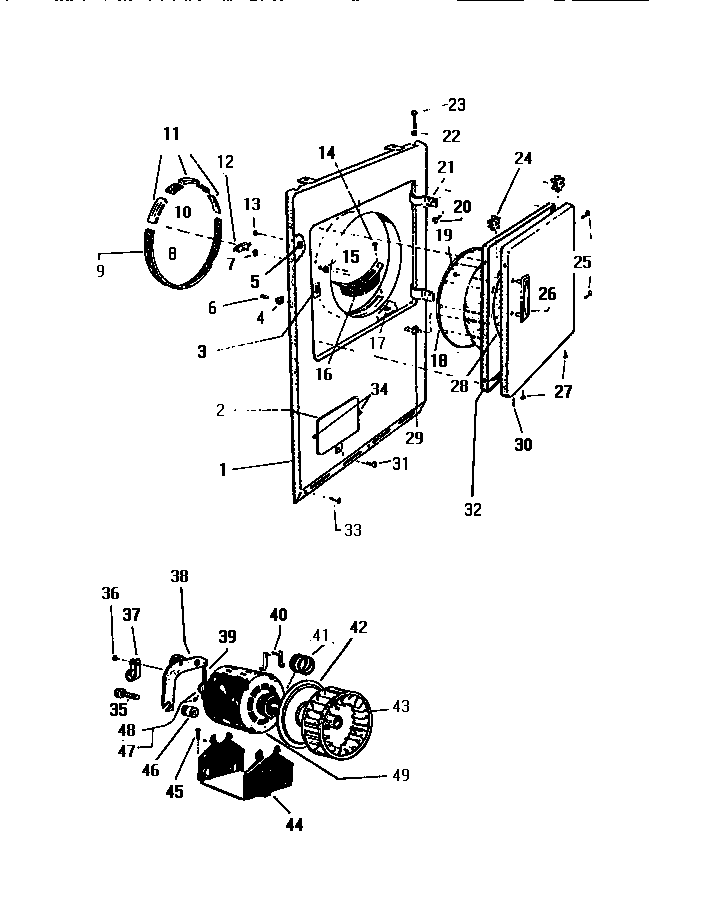

GDD15A1W5 03 – CABINET, TOP PANEL, DOOR BASE

Products

Position	Product
1	WCI Q173331
2	ACCESS DOOR, WHITE
12	START SWITCH
12	DOOR SWITCH, WEAT
13	SCREW (4)
14	WCI Q405802
15	WCI Q501450
16	WCI Q168541
17	WCI Q500255
18	WCI Q167703
19	WCI Q503952
20	WCI Q500433
21	WCI Q94651
22	WCI Q500155
24	WCI Q631591
24	WCI Q40120
26	WCI Q151326
27	WCI Q411004
28	SHIELD
29	WCI Q504552
30	WCI Q125674
32	WCI Q125730
33	WCI Q501687
34	SUPPORT
35	WCI Q433401
36	WCI Q414001
37	CLAMP
38	IDLER PULLEY AND BRACKET
39	SPRING
40	WCI Q62206
41	WCI Q94715
42	WCI Q94948
43	WCI Q615901
44	WCI Q84874
45	SCREW
46	WCI Q600179
47	SCREW
48	PULLEY (SEE NOTE 1)
49C	START SWITCH FOR Q616401 GE
49D	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
49E	START SWITCH FOR Q616391 EMER.
49A	START SWITCH FOR Q615921 WW
