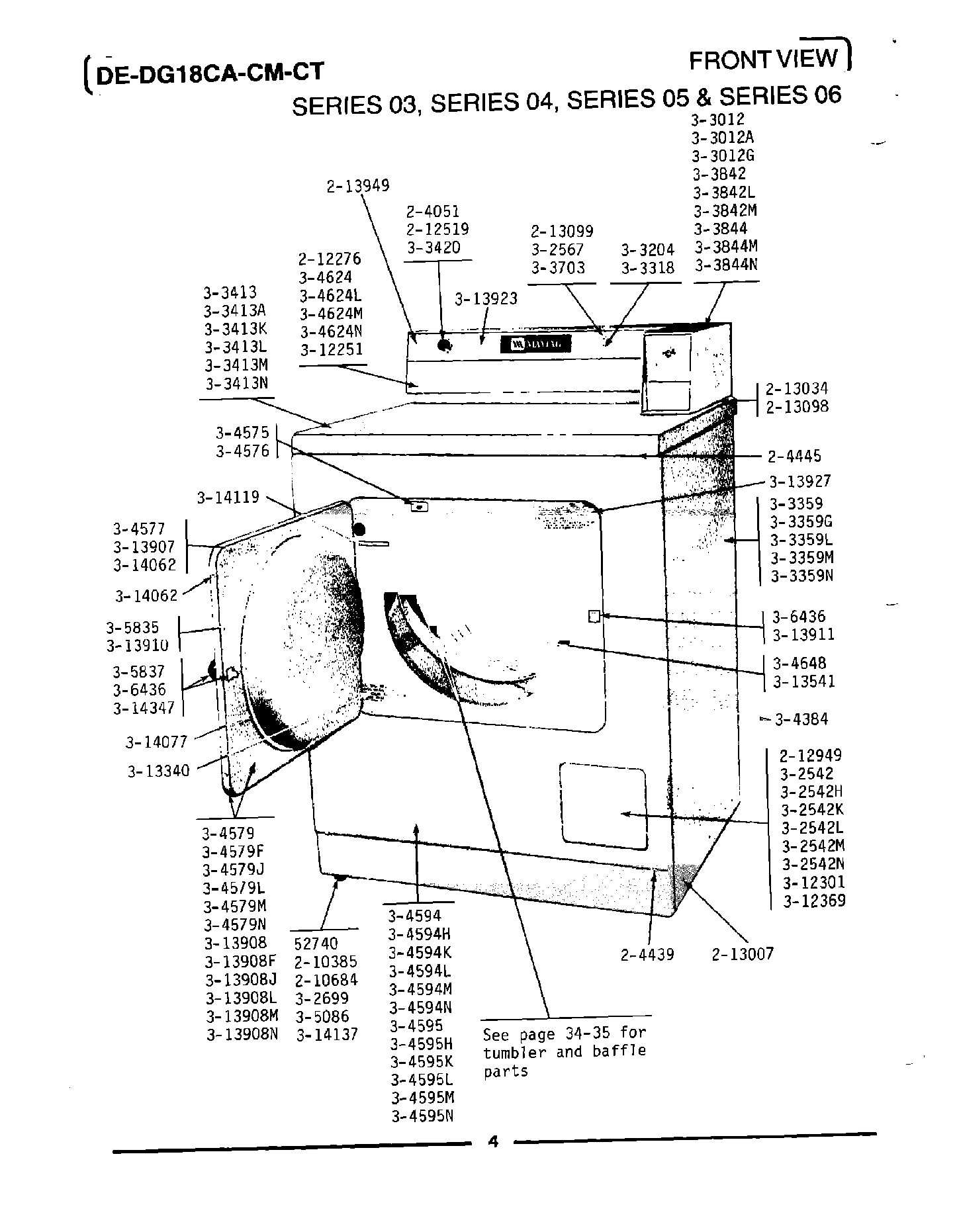

GDE18CA 02 – FRONT VIEW (SERIES 03)

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
001	WP62739 Whirlpool Nut
002	MAY 204051
003	SCREW & FSTNER ASSY (FT. PNL)
004	MAY 204445
005	WP210385 Whirlpool Lock Nut
006	WP210684 Whirlpool Dishwasher Leveling Leg Pad
007	MAY 212276
008	MAY 212519
009	SCREW, BUSHINGS
010	213007 Whirlpool Screw #12
012	MAY 213099
013	WP355214 Whirlpool Screw
014	LEG, ADJUSTABLE (W/NUT)—S
016	MAY Y303204
023	MAY Y303420
024	MAY Y303703
025	MAY Y304384
026	W10169313 Whirlpool Door Switch Kit
027	MAY Y304577
028	MAY Y304579
038	MAY Y304648
039	W10176519 Whirlpool Leveling Feet
042	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
044	LABEL, LINT SCREEN INSTR.
045	MAY Y313541
046	MAY Y313907
047	MAY Y313908
050	CLIP, DOOR LINER
051	MAY Y313911
053	MAY Y313927
055	MAY 314077
057	WPY314137 Whirlpool Rubber Foot
