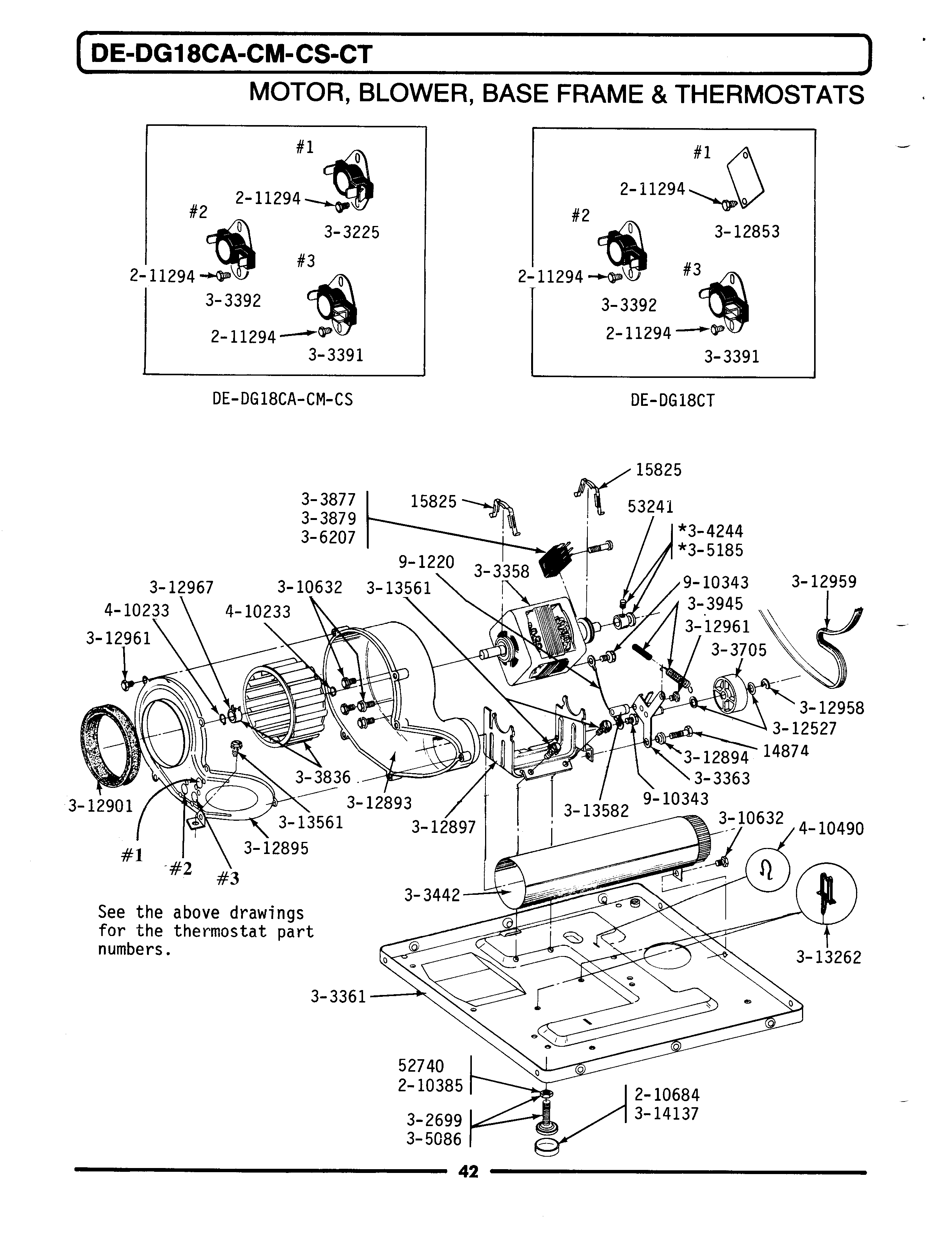

GDE18CA 14 – MOTOR, BLOWER, BASE FRAME & THERMOSTATS

Products

PositionProduct
NIDOWEL PIN FOR HANDLE
NIMAY Y304245
001WPY014874 Whirlpool Screw
002WPY015825 Whirlpool Motor Clip
003WP62739 Whirlpool Nut
004MAY Y053241
005WP210385 Whirlpool Lock Nut
006WP210684 Whirlpool Dishwasher Leveling Leg Pad
007WP90767 Whirlpool Screw
008LEG, ADJUSTABLE (W/NUT)—S
009PART NOT USED
010W10410999 Whirlpool Dryer Drive Motor
011MAY Y303361
012WP6-3033630 Whirlpool Dryer Idler Arm Assembly
013WP33303391 Whirlpool Thermostat
014WP694674 Whirlpool Cycling Thermostat
015MAY Y303442
016WP6-3037050 Whirlpool Idler Pulley
017Y303836 Whirlpool Dryer Blower Wheel
018MAY Y303877
019MAY Y303879
020MAY Y303945
021WP6-3042440 Whirlpool Motor Pulley
023W10176519 Whirlpool Leveling Feet
024MAY Y305185
026MAY Y310632
027MAY Y312527
028MAY Y312853
029MAY Y312893
030SLEEVE, IDLER ARM —-S
031MAY Y312895
033WPY312901 Whirlpool Blow Seal
034WP354987 Whirlpool C-Clip
035WPY312959 Whirlpool Dryer Drum Belt
036WPW10116751 Whirlpool Screw
037WP312967 Whirlpool Clamp
038MAY Y313262
039MAY Y313561
040WPW10116756 Whirlpool Spacer
041WPY314137 Whirlpool Rubber Foot
042WP9703438 Whirlpool Snap Retaining Ring
043MAY 410490
044MAY 901220
045MAY 910343
