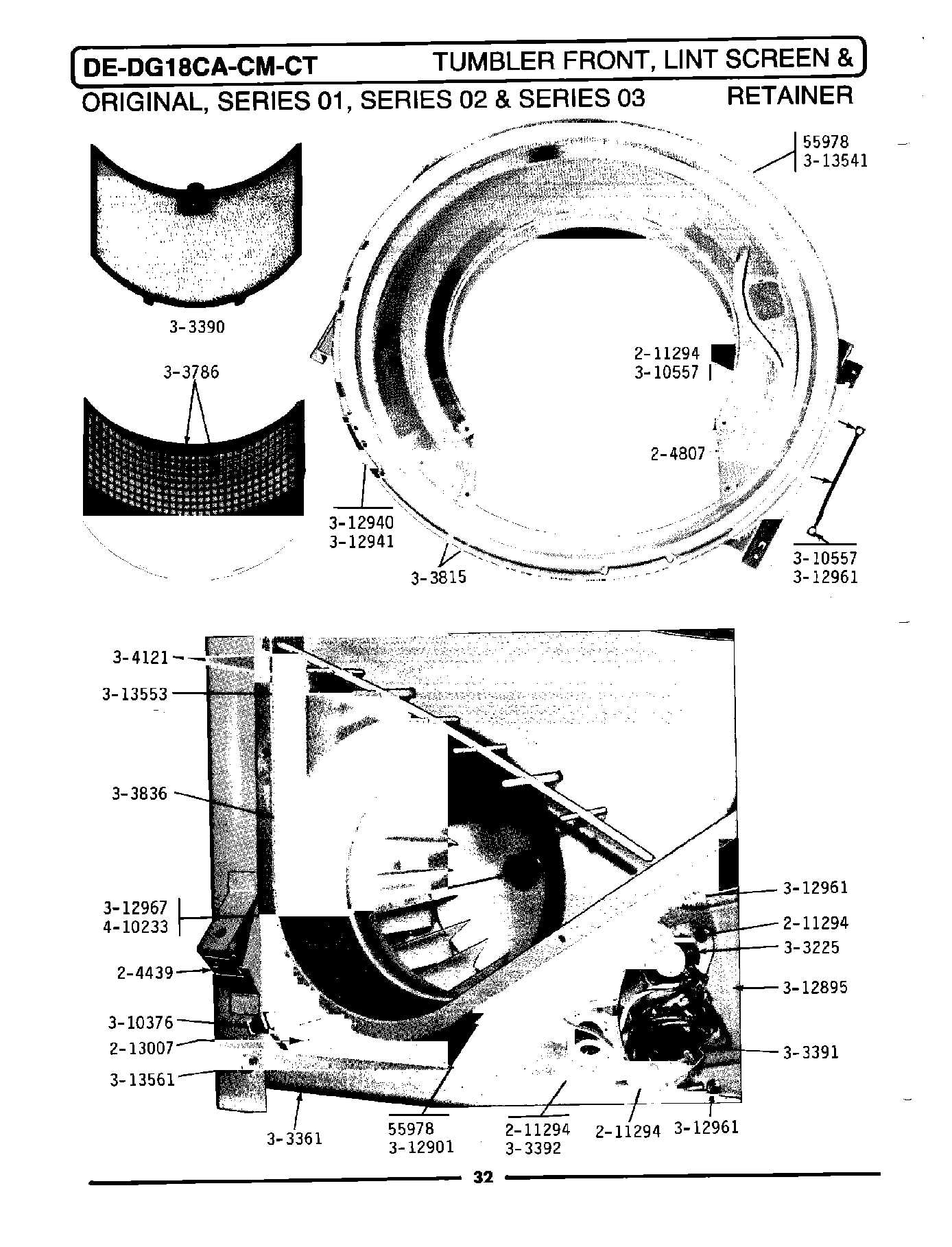

GDE18CM 11 – TUMBLER FRONT, LINT SCREEN & RETAINER

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
NI	MAY Y313795
NI	WP210720 Whirlpool Rivet
NI	MAY Y313796
NI	MAY Y312964
NI	MAY Y304810
001	MAY Y055978
002	SCREW & FSTNER ASSY (FT. PNL)
003	MAY 204807
005	WP90767 Whirlpool Screw
006	213007 Whirlpool Screw #12
007	PART NOT USED
008	MAY Y303361
009	MAY Y303390
010	WP33303391 Whirlpool Thermostat
011	WP694674 Whirlpool Cycling Thermostat
012	MAY Y303786
013	MAY Y303815
014	Y303836 Whirlpool Dryer Blower Wheel
017	MAY Y310376
018	MAY 310557
019	MAY Y312895
020	WPY312901 Whirlpool Blow Seal
021	MAY 312940
022	MAY 312941
023	WPW10116751 Whirlpool Screw
025	WP312967 Whirlpool Clamp
026	MAY Y313541
028	MAY Y313561
031	WP9703438 Whirlpool Snap Retaining Ring
