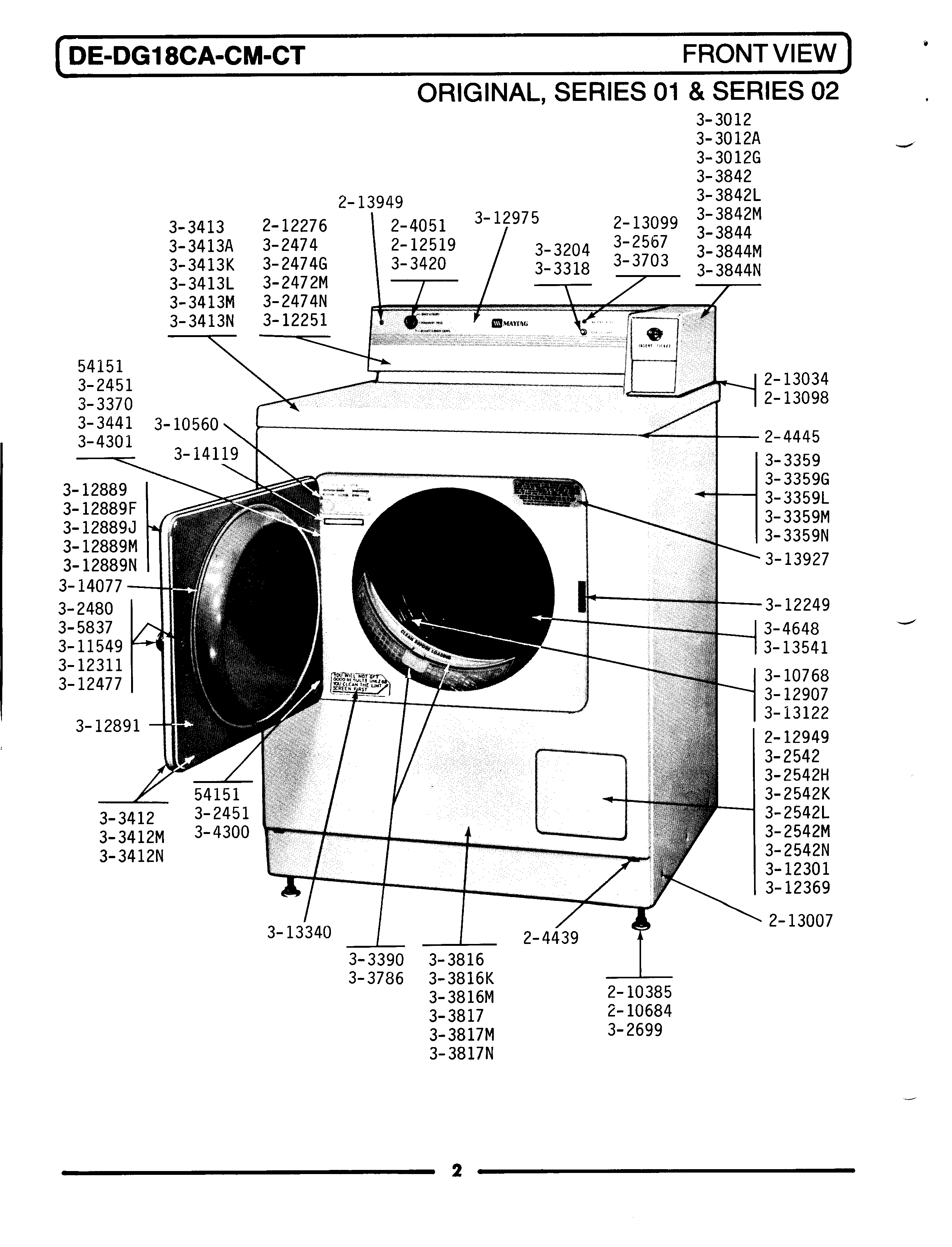

GDE18CS 01 – FRONT VIEW

Products

Position	Product
NI	DOWEL PIN FOR HANDLE
NI	MAY Y303204
NI	SCREW, BUSHINGS
NI	LEG, ADJUSTABLE (W/NUT)—S
NI	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
NI	WP355214 Whirlpool Screw
NI	WP62739 Whirlpool Nut
NI	MAY Y313908
002	MAY 204051
003	SCREW & FSTNER ASSY (FT. PNL)
004	MAY 204445
005	COIN BOX-WHITE
006	COIN BOX-ALMOND
008	WP210385 Whirlpool Lock Nut
009	WP210684 Whirlpool Dishwasher Leveling Leg Pad
010	MAY 212519
012	213007 Whirlpool Screw #12
013	MAY 213099
023	MAY Y303420
024	MAY Y303703
025	MAY Y304577
026	MAY Y304579
038	W10176519 Whirlpool Leveling Feet
041	MAY Y312702
042	MAY Y313907
046	CLIP, DOOR LINER
049	WPY314137 Whirlpool Rubber Foot
